Installation Procedure

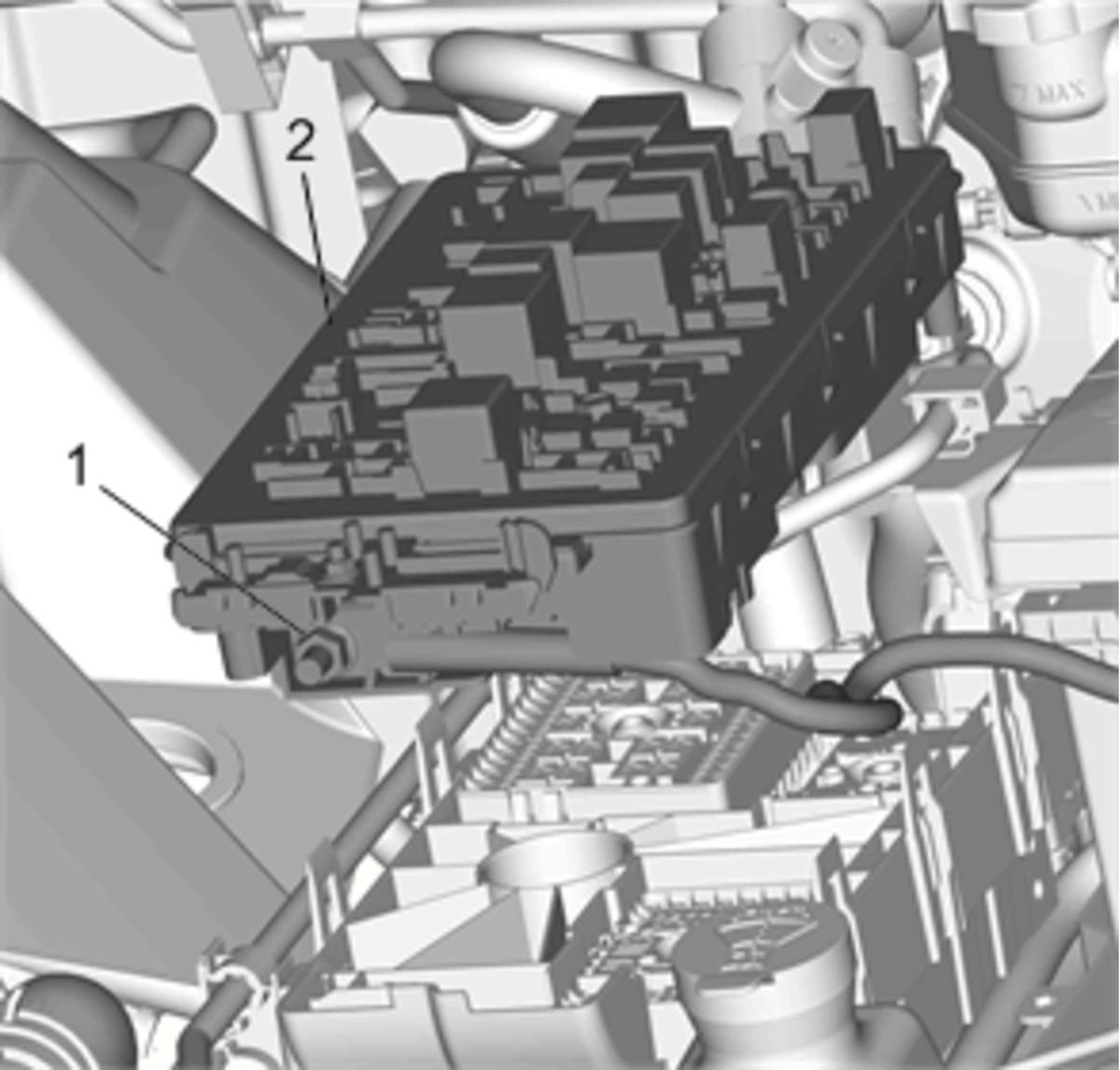

    Fig 1: Fuse Block
    GM3808305Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Position the fuse block housing (2) to the vehicle. Install the cable and cable nut (1) to the fuse block (2). Tighten cable nut to 9 N.m (80 lb in).

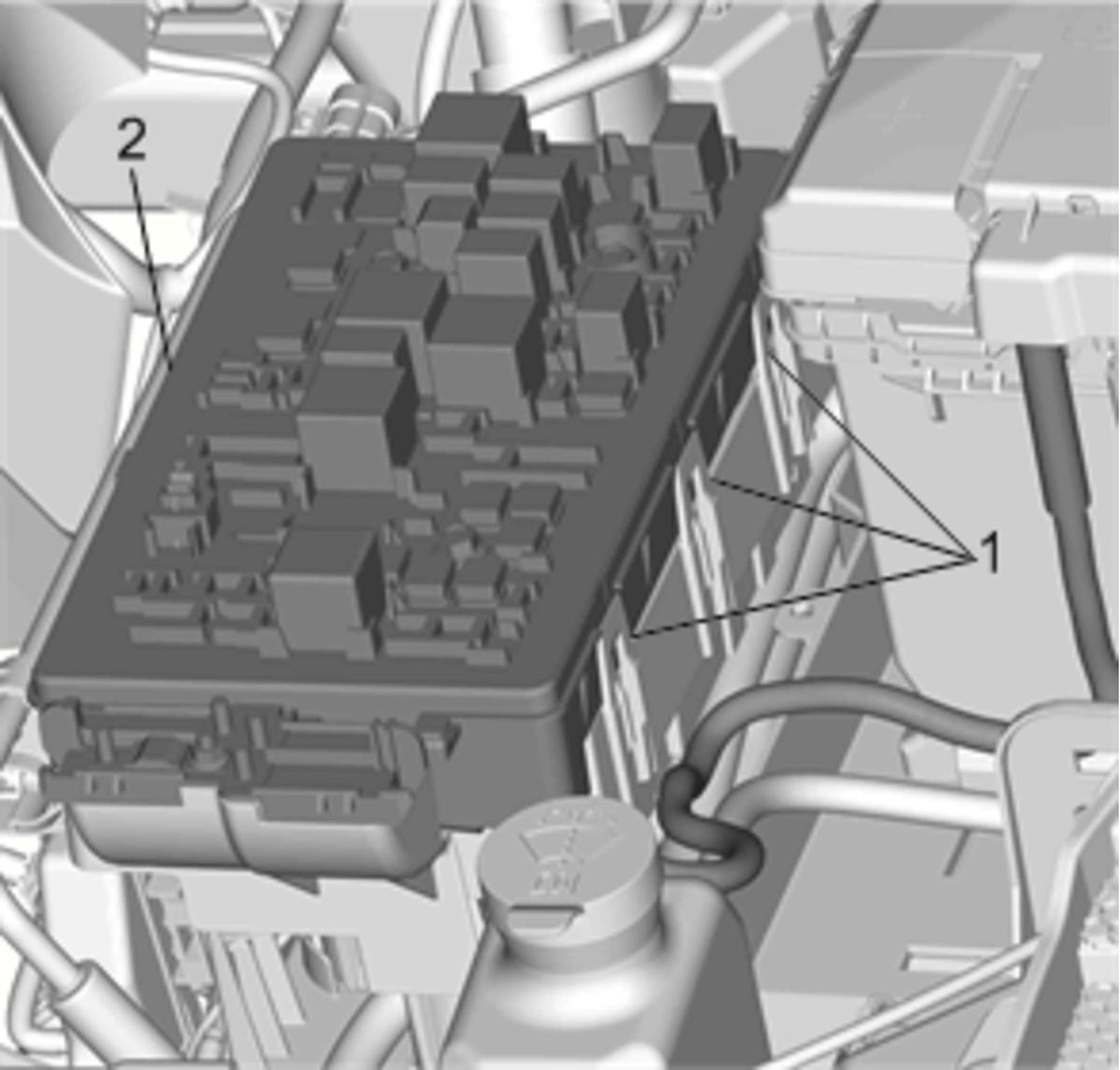

    2. Fig 2: Retainer Tabs And Fuse Block
    GM3808301Courtesy of GENERAL MOTORS COMPANY
  2. Install the fuse block (2) to the bracket and secure the 6 retainer tabs (1).

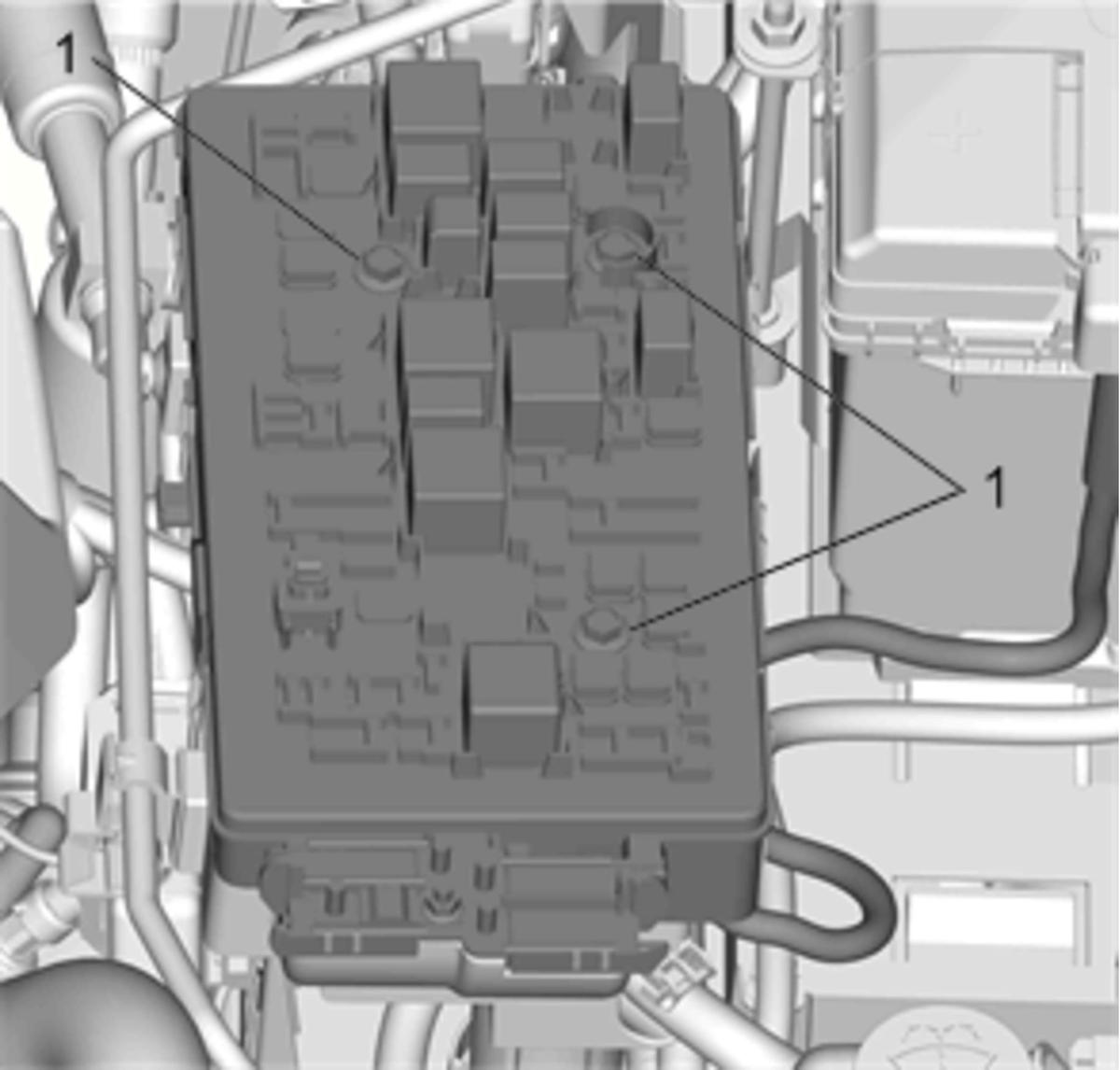

    3. Fig 3: Fuse Block Bolts
    GM3808297Courtesy of GENERAL MOTORS COMPANY
  3. Install the fuse block bolts (1). Tighten bolts to 9 N.m (80 lb in)

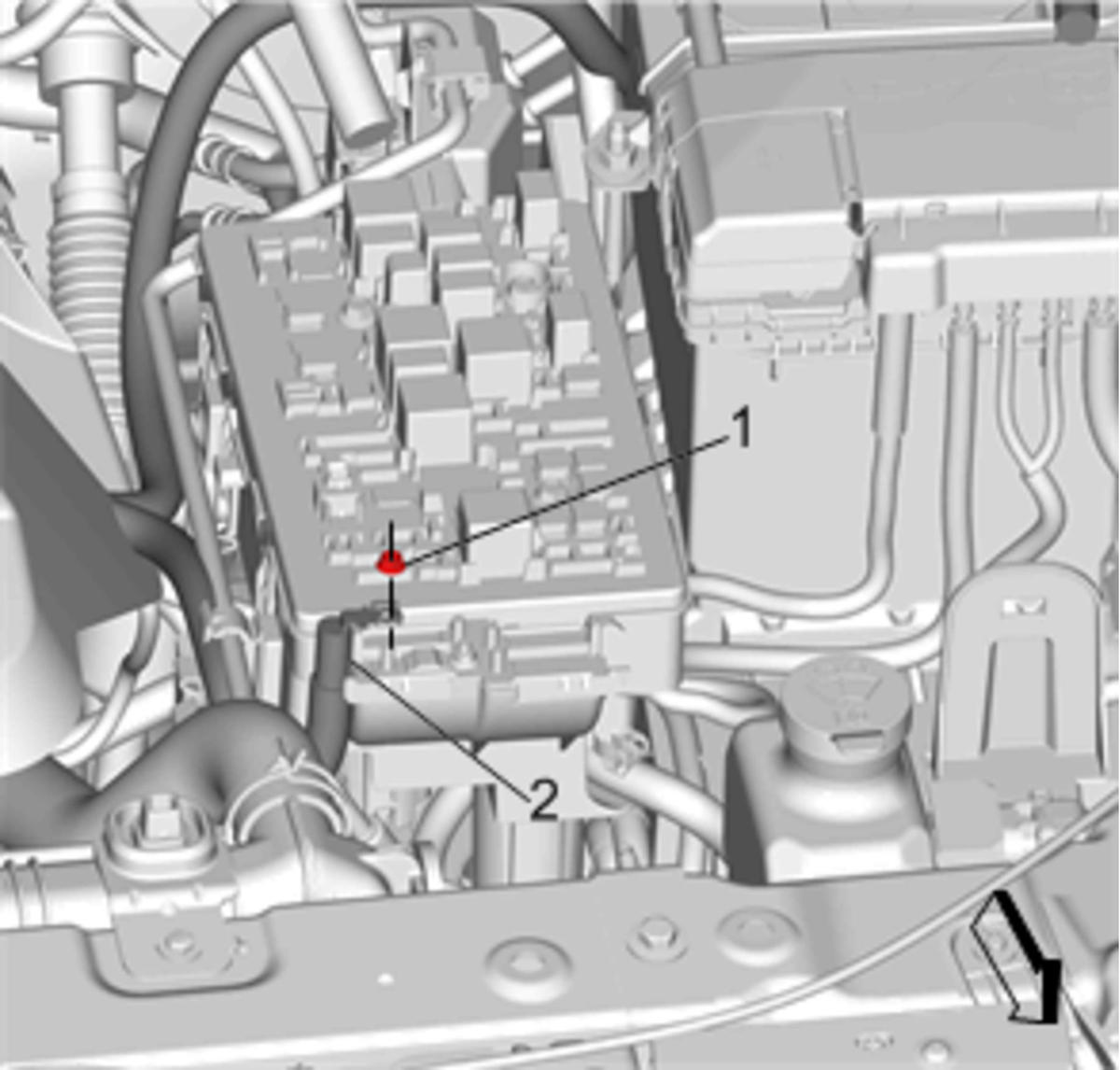

    4. Fig 4: Starter Generator Cable Nut
    GM3808291Courtesy of GENERAL MOTORS COMPANY
  4. Install the starter generator cable (2), install the starter generator cable nut (1). Tighten cable nut to 9 N.m (80 lb in)

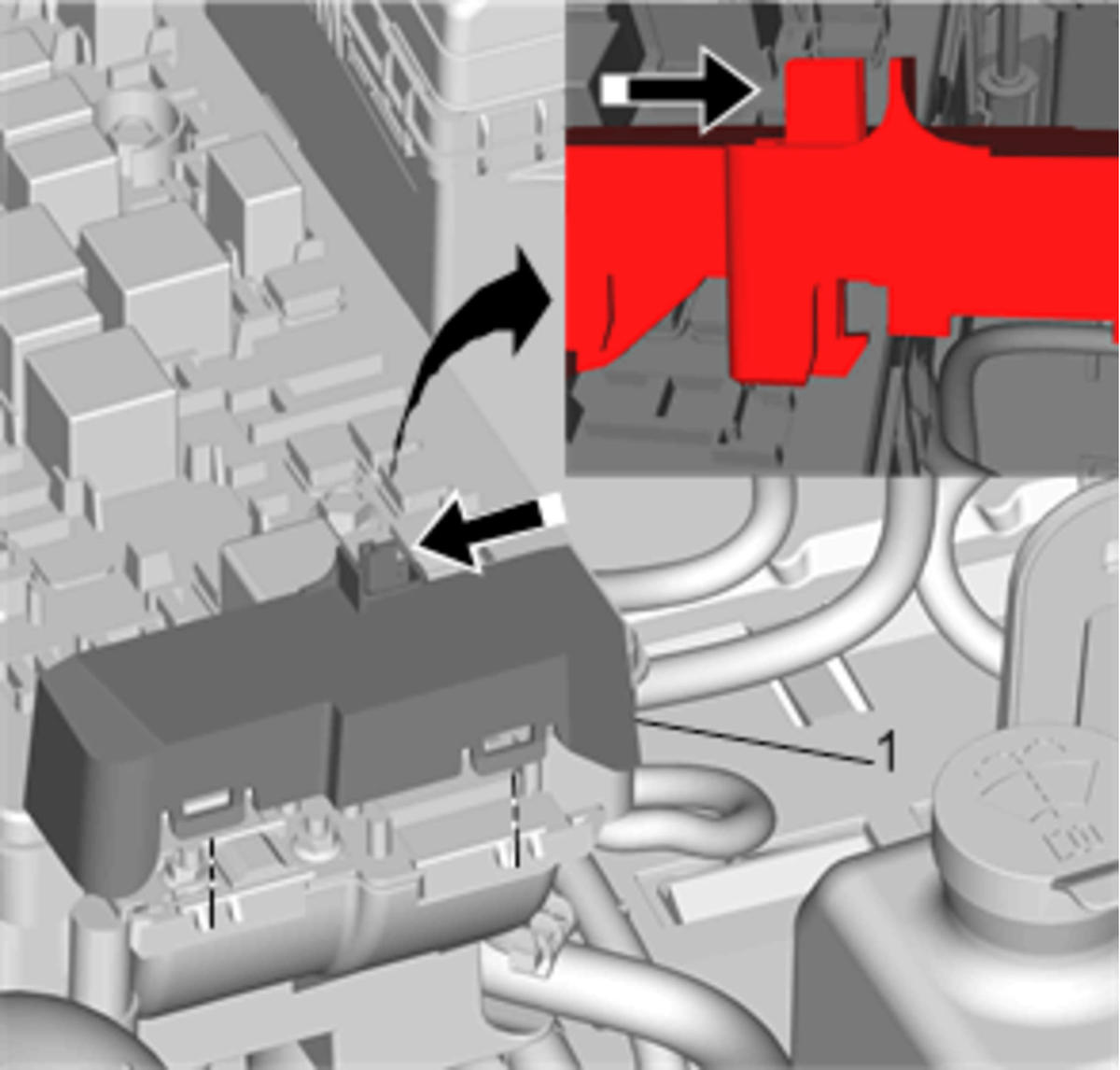

    5. Fig 5: Lifting 2 Tab On Cover Upward
    GM3808288Courtesy of GENERAL MOTORS COMPANY
  5. Push the upper latch to the right (arrow) and install the cover (1) to the block, insuring the 2 tab on the cover are secure.
  6. Install the engine wiring harness block cover. Refer to Engine Wiring Harness Fuse Block Cover Replacement
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  8. Install the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .
