Removal Procedure

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection

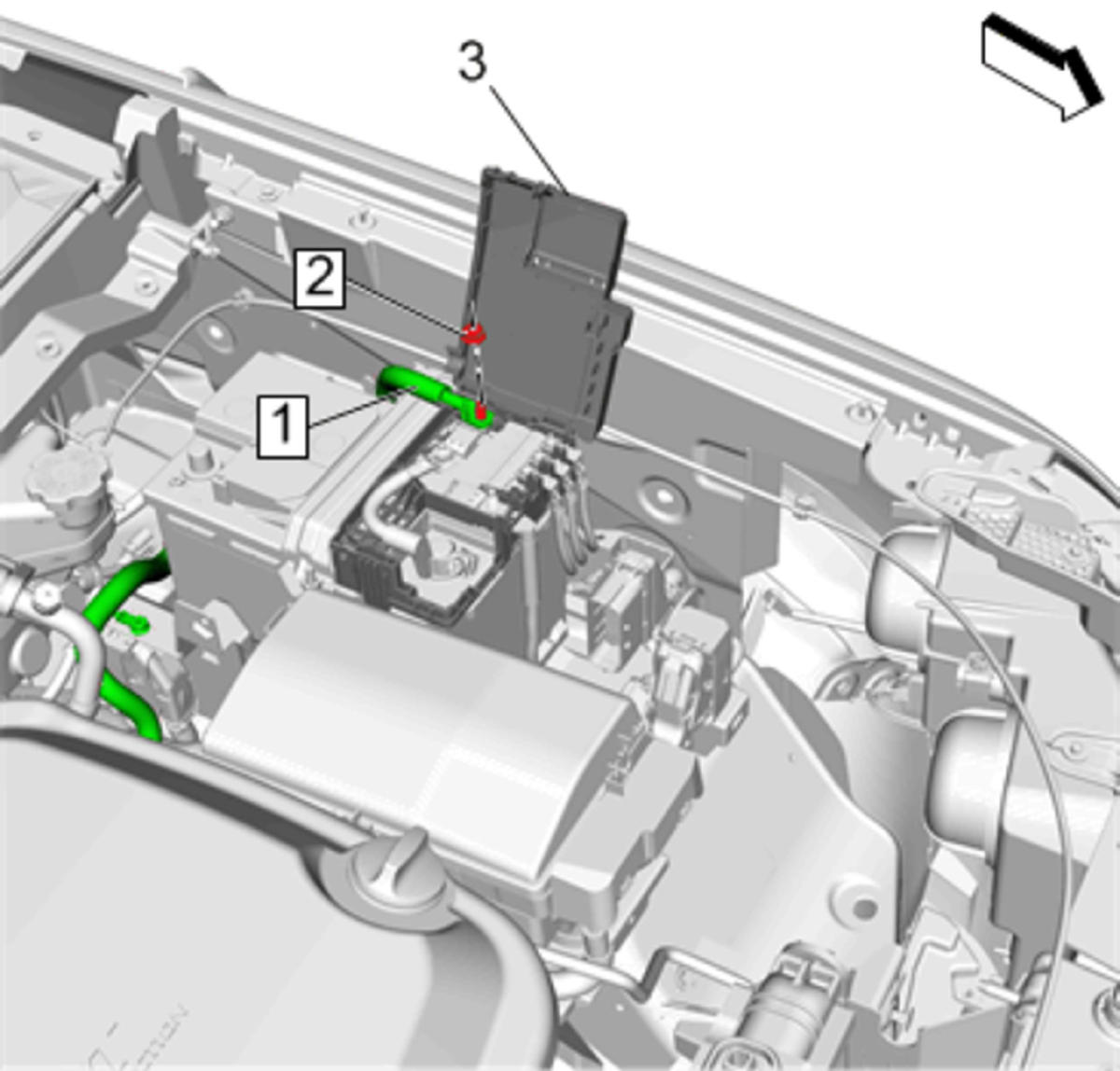

    2. Fig 1: Battery Positive Cable And Battery Fuse Block Cover
    GM4565898Courtesy of GENERAL MOTORS COMPANY
  2. Open the battery fuse block cover. (3)
  3. Remove Front Compartment Fuse Block Cable Nut (2)
  4. Remove Battery Positive Cable (1)

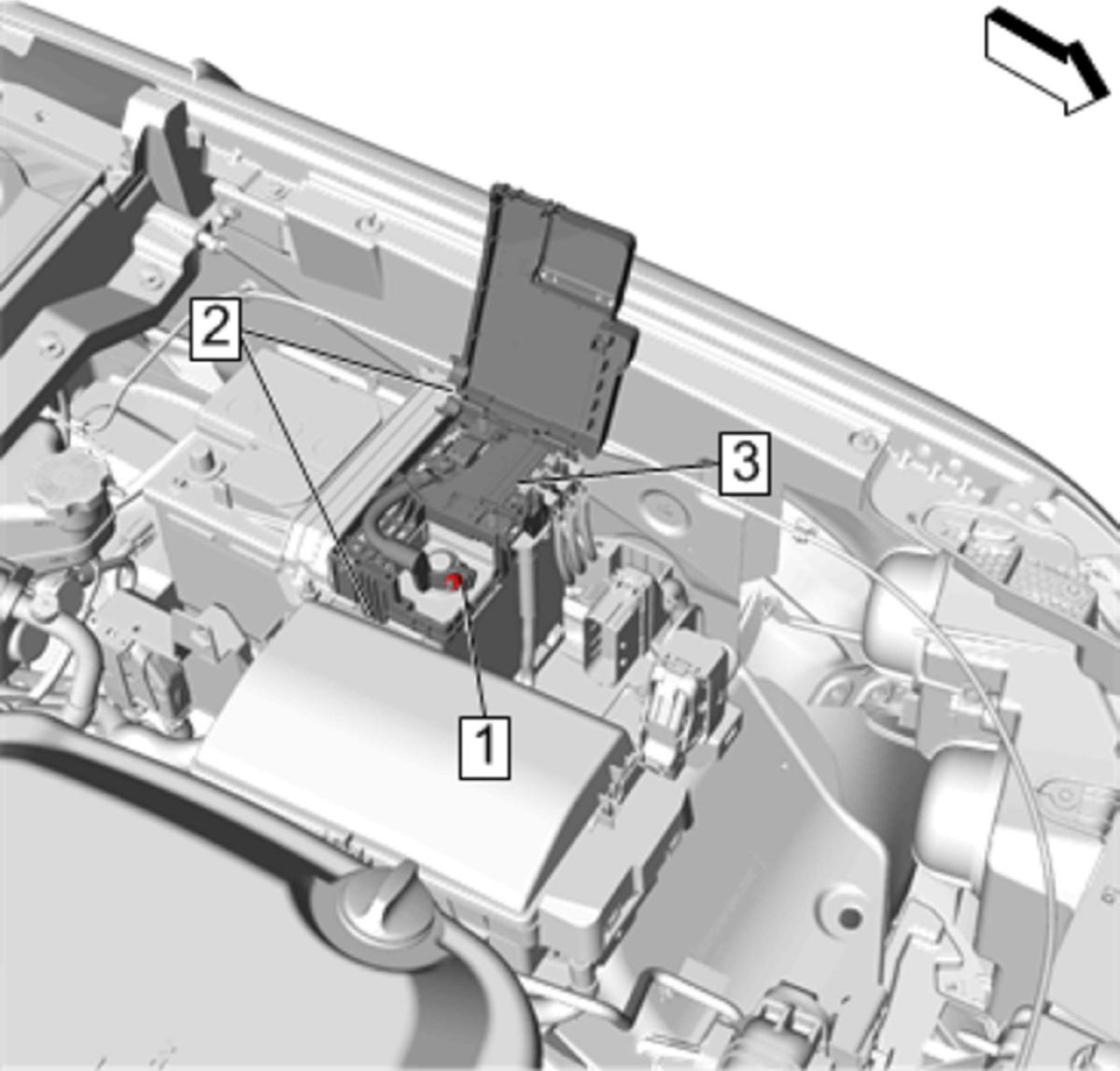

    5. Fig 2: Battery Positive Post Clamp Nut And Retaining Tabs
    GM4565911Courtesy of GENERAL MOTORS COMPANY
  5. Loosen Battery Positive Post Clamp Nut (1)
  6. Release the retaining tabs. (2)
  7. Reposition away Front Compartment Fuse Block (3)

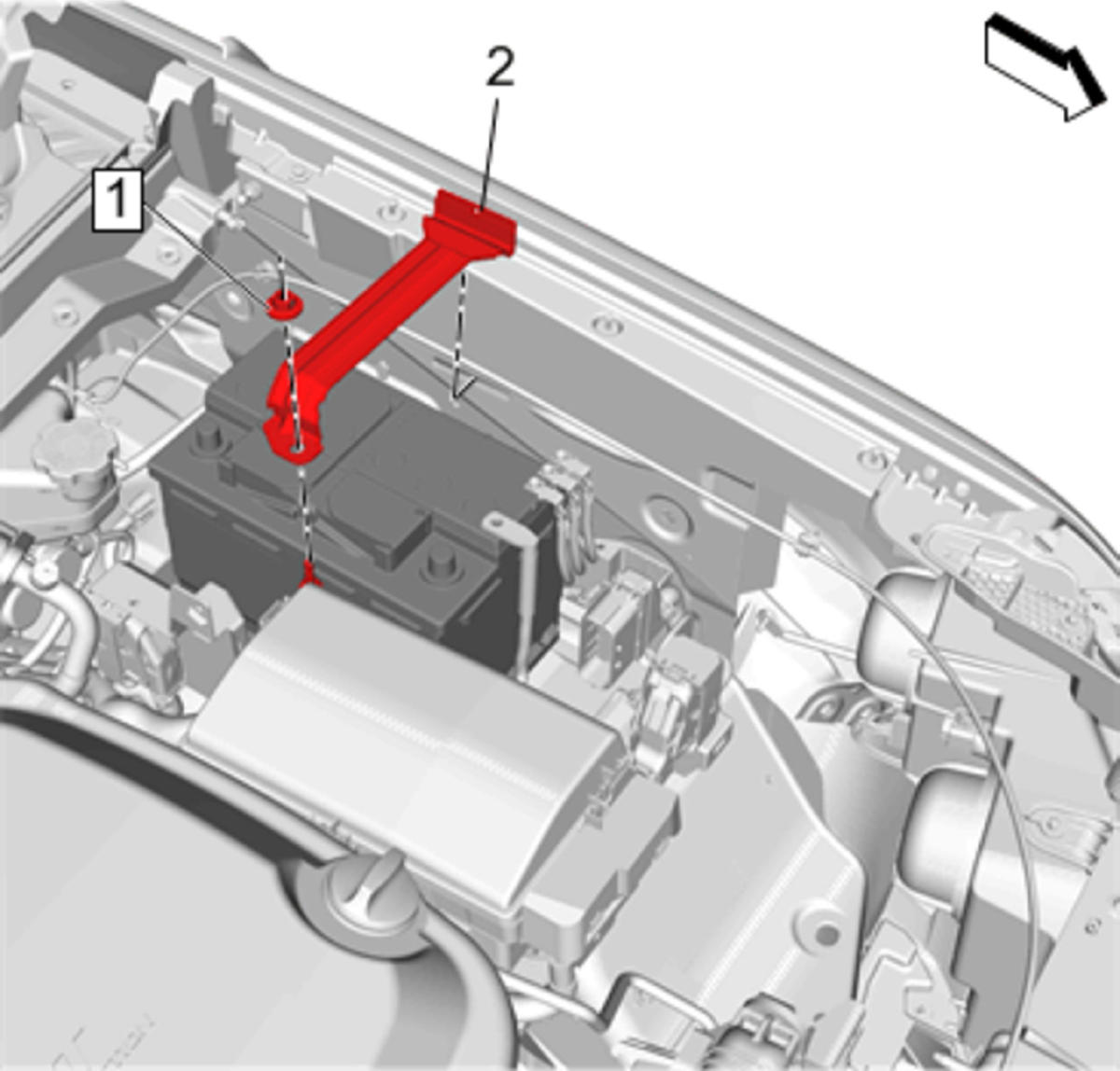

    8. Fig 3: Battery Hold Down Retainer And Retainer Nut
    GM4565922Courtesy of GENERAL MOTORS COMPANY
  8. Remove Battery Hold Down Retainer Nut (1)
  9. Remove Battery Hold Down Retainer (2)

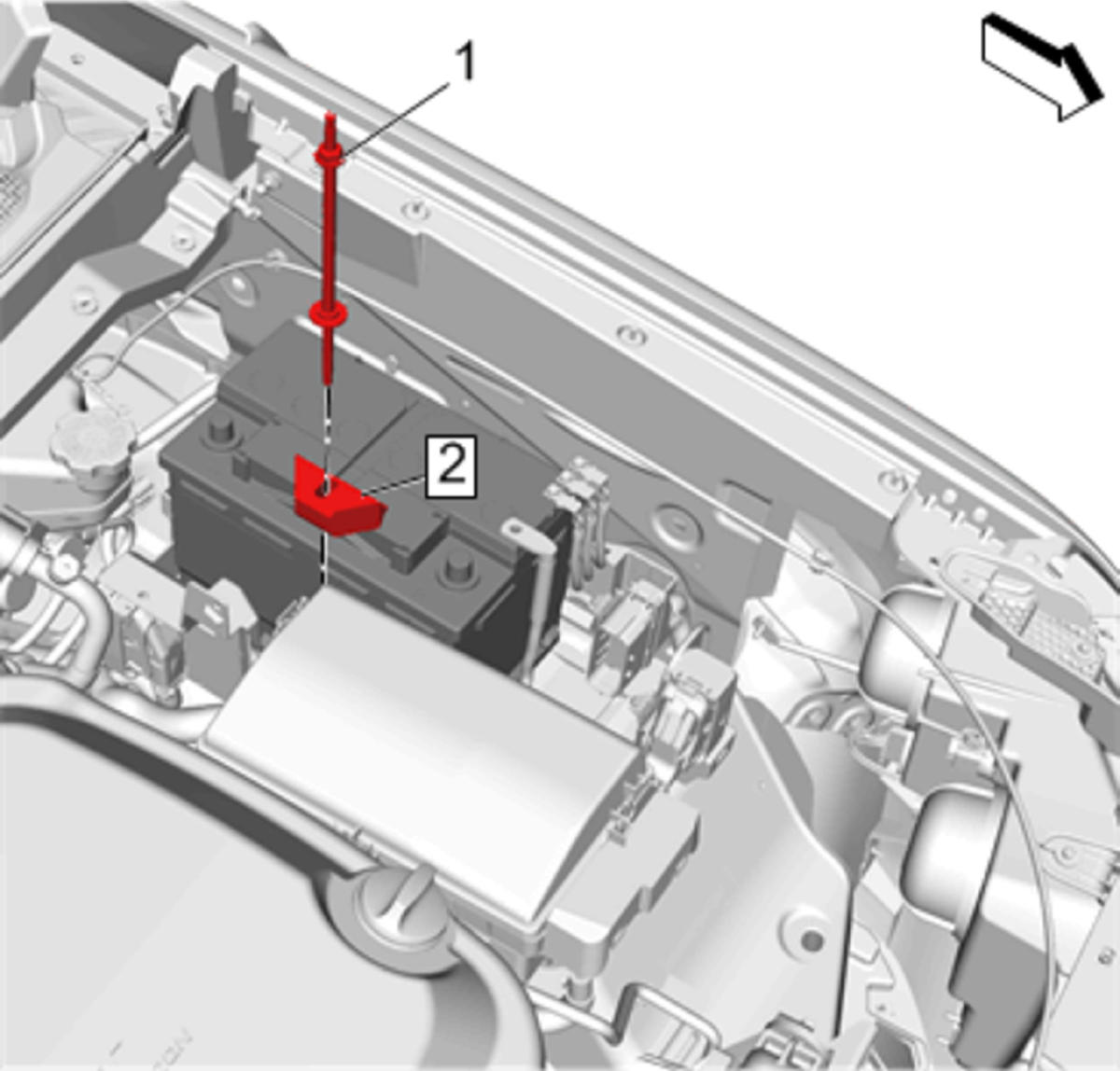

    10. Fig 4: Hold Down Retainer
    GM4565928Courtesy of GENERAL MOTORS COMPANY
  10. Remove Battery Hold Down Retainer Rod (1)
  11. Remove Battery Hold Down Retainer (2)

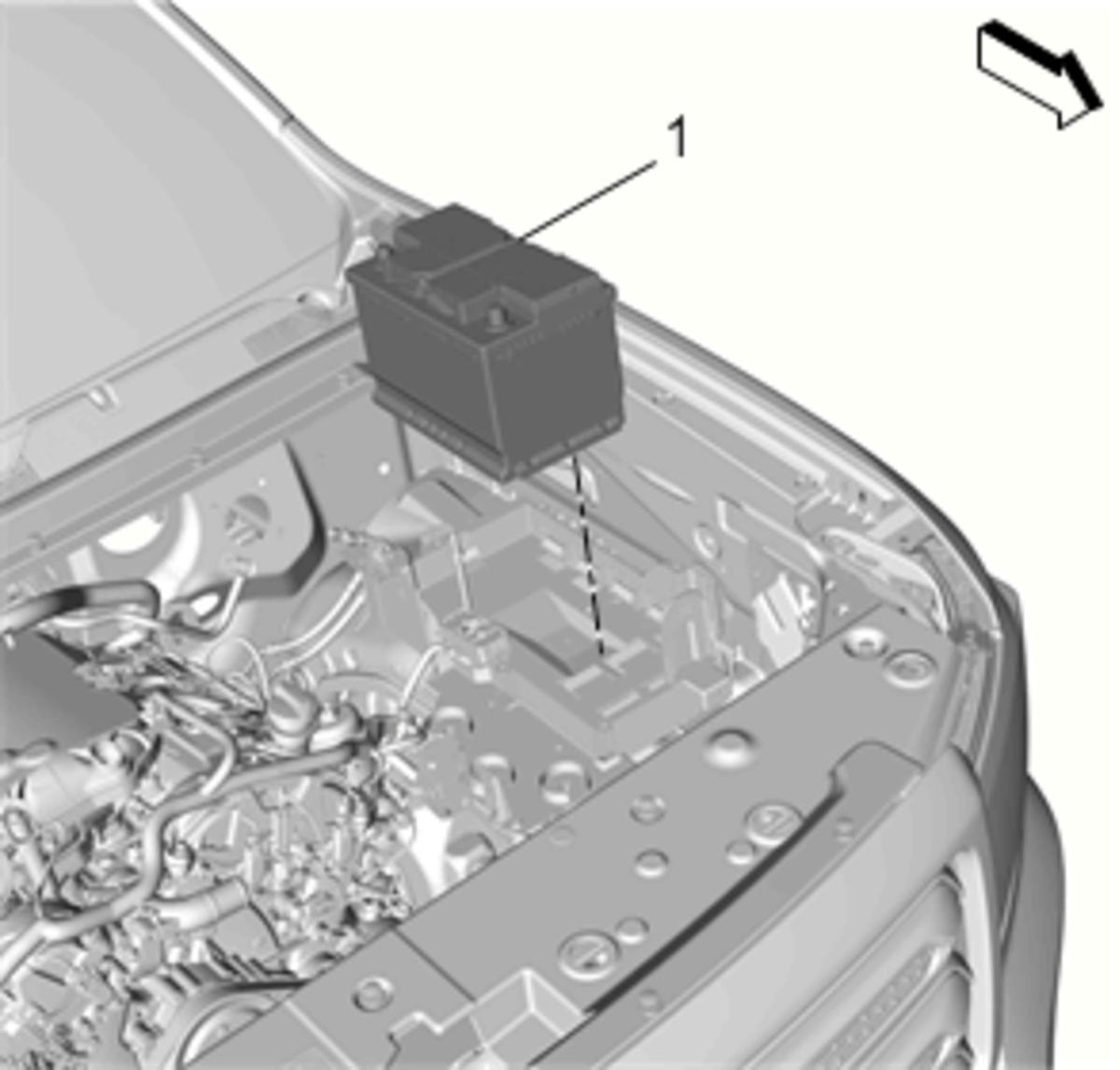

    12. Fig 5: Battery
    GM3807220Courtesy of GENERAL MOTORS COMPANY
  12. Remove the battery. (1)
