Installation Procedure

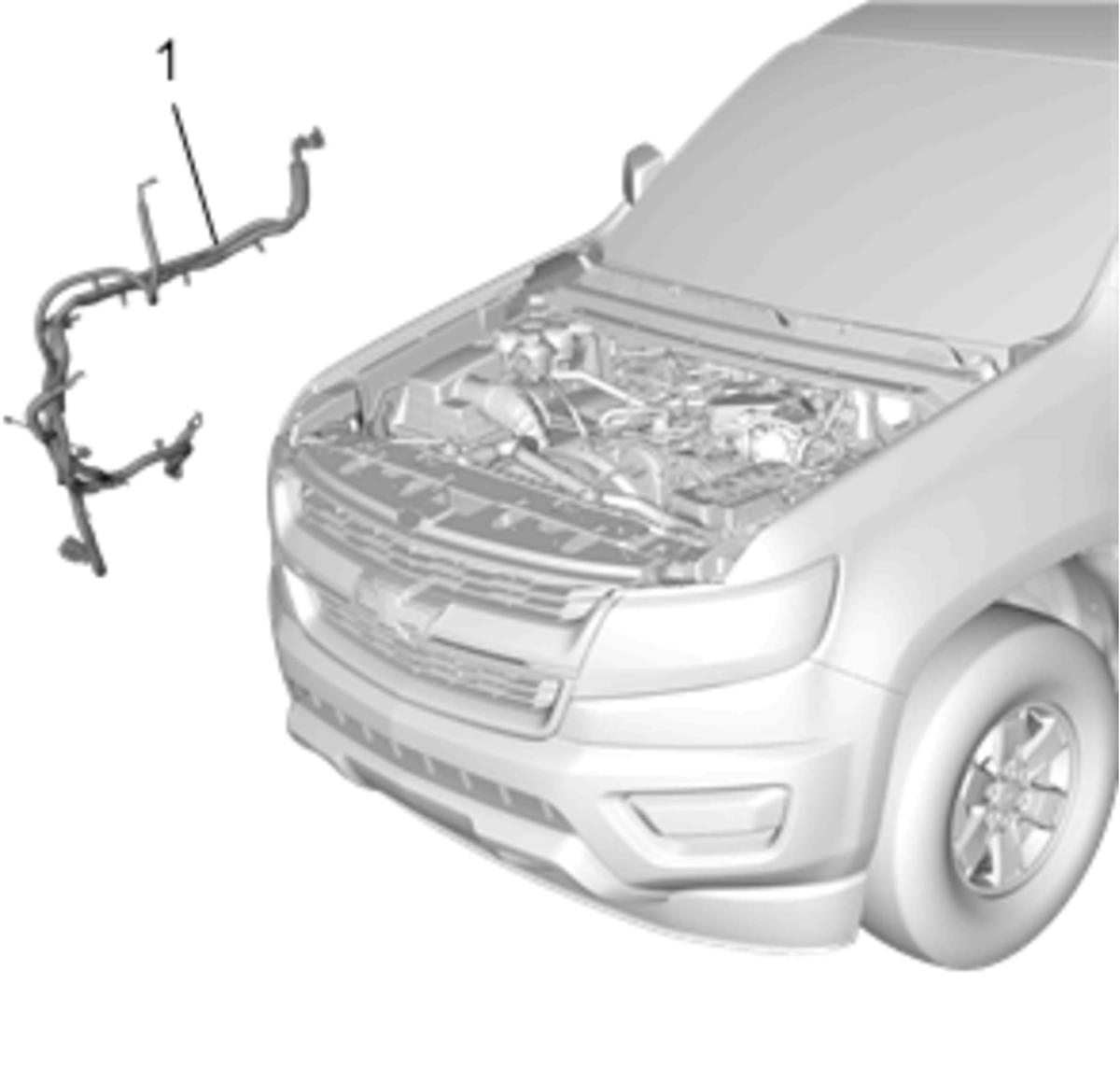

    Fig 1: Battery Negative Cable
    GM4160436Courtesy of GENERAL MOTORS COMPANY
  1. Carefully install the battery sensor along with the battery negative cable to the vehicle. (1)

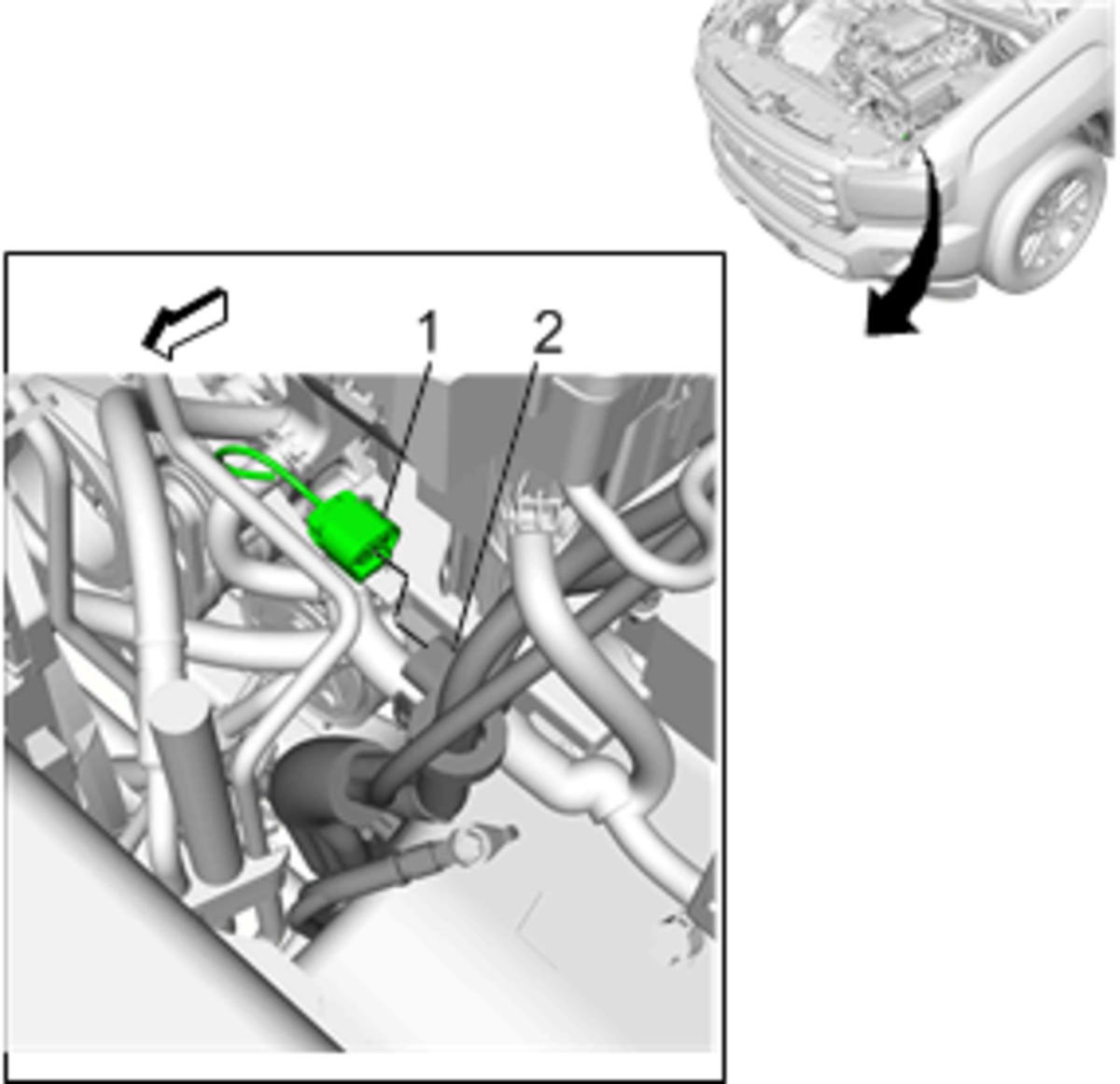

    2. Fig 2: Body Harness Connector And Battery Current Sensor
    GM3802801Courtesy of GENERAL MOTORS COMPANY
  2. Connect Battery Current Sensor Connector (1)

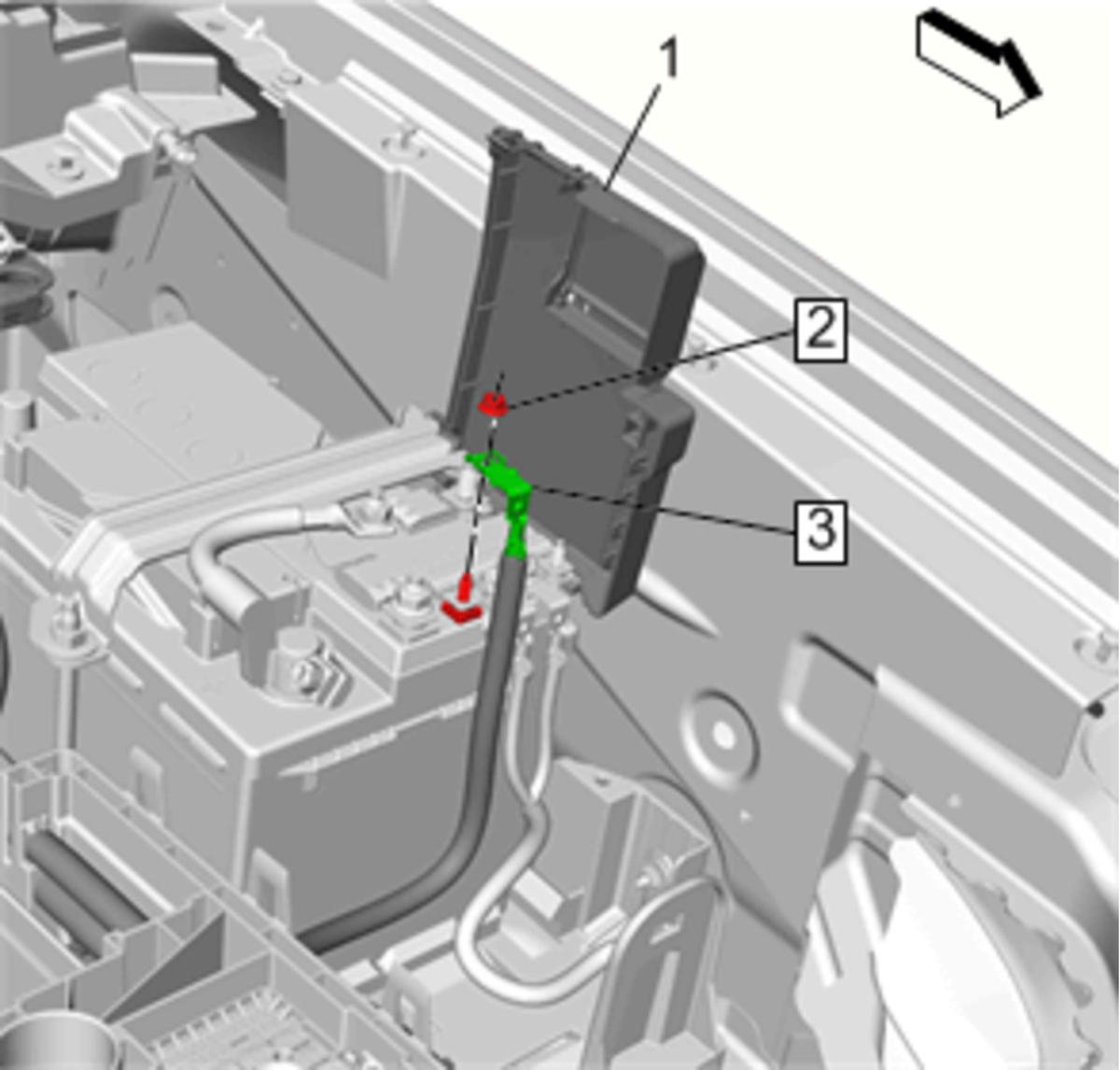

    3. Fig 3: Fuse Block Cover
    GM4161306Courtesy of GENERAL MOTORS COMPANY
  3. Install Battery Negative Cable (3)
    4. CAUTION:

    Refer to Fastener Caution

  4. Install Battery Negative Cable Fastener (2) and tighten 13 N.m (115 lb in)
  5. Close the battery fuse block cover (1)

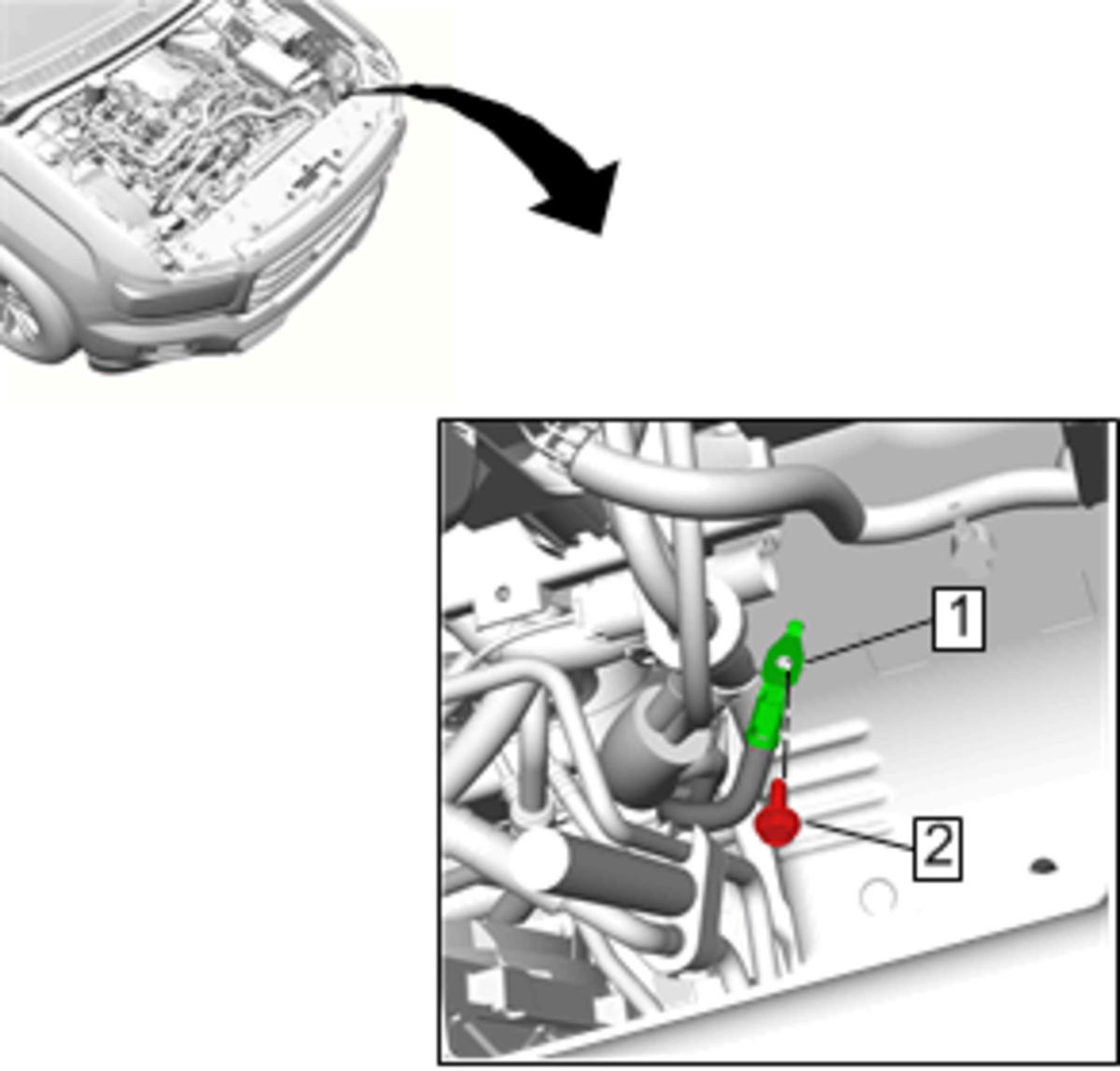

    6. Fig 4: Battery Negative Cable Ground Fastener
    GM4161308Courtesy of GENERAL MOTORS COMPANY
  6. Install Battery Negative Cable (1)
  7. Install Battery Negative Cable Ground Fastener (2) and tighten 22 N.m (16 lb ft)
  8. Raise and support the vehicle. Lifting and Jacking the Vehicle

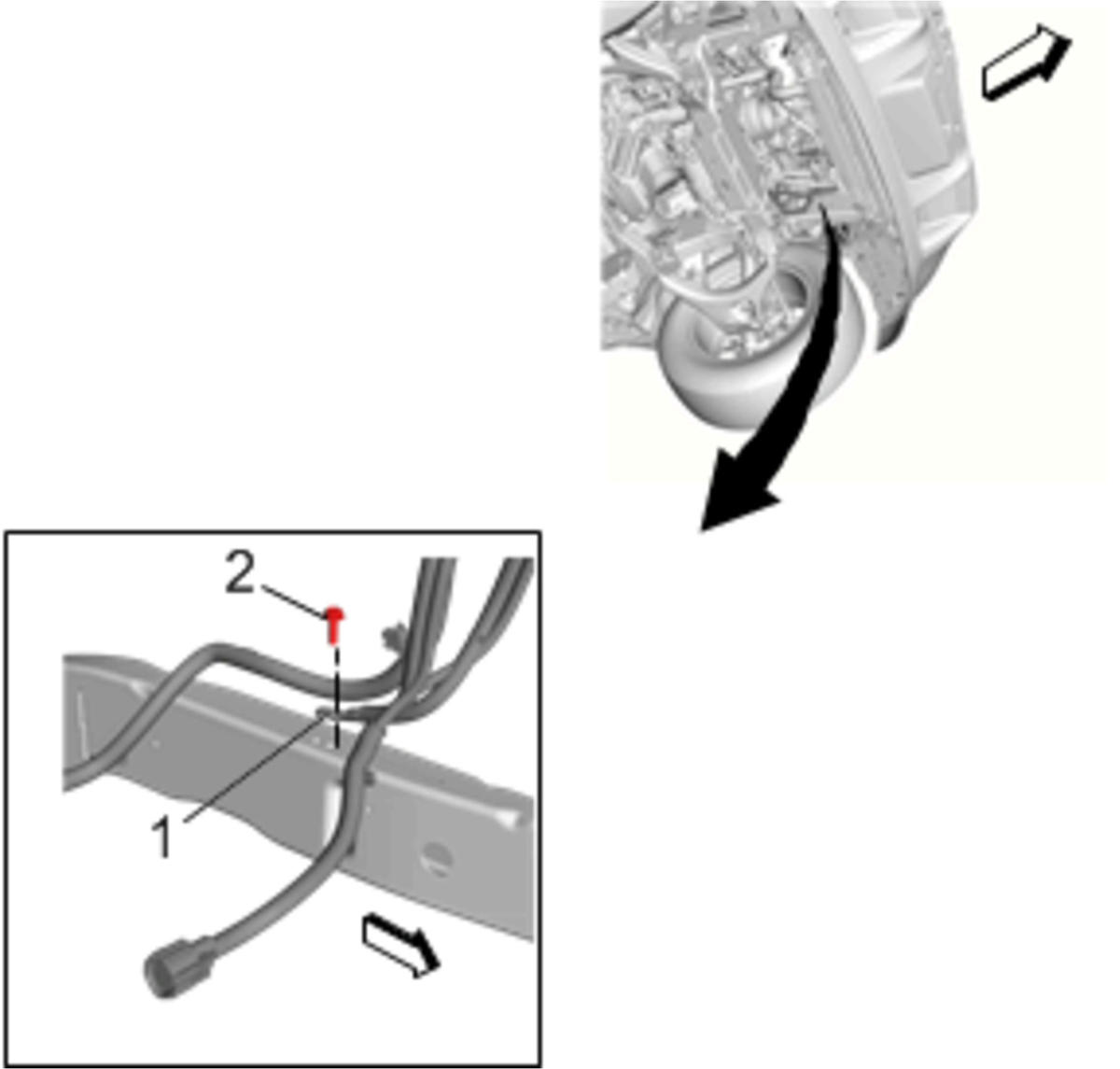

    9. Fig 5: Battery Negative Cable Frame Ground Fastener And Battery Negative Cable Terminal
    GM3802927Courtesy of GENERAL MOTORS COMPANY
  9. Install Battery Negative Cable (1)
  10. Install Battery Negative Cable Frame Ground Fastener (2) and tighten 22 N.m (16 lb ft)

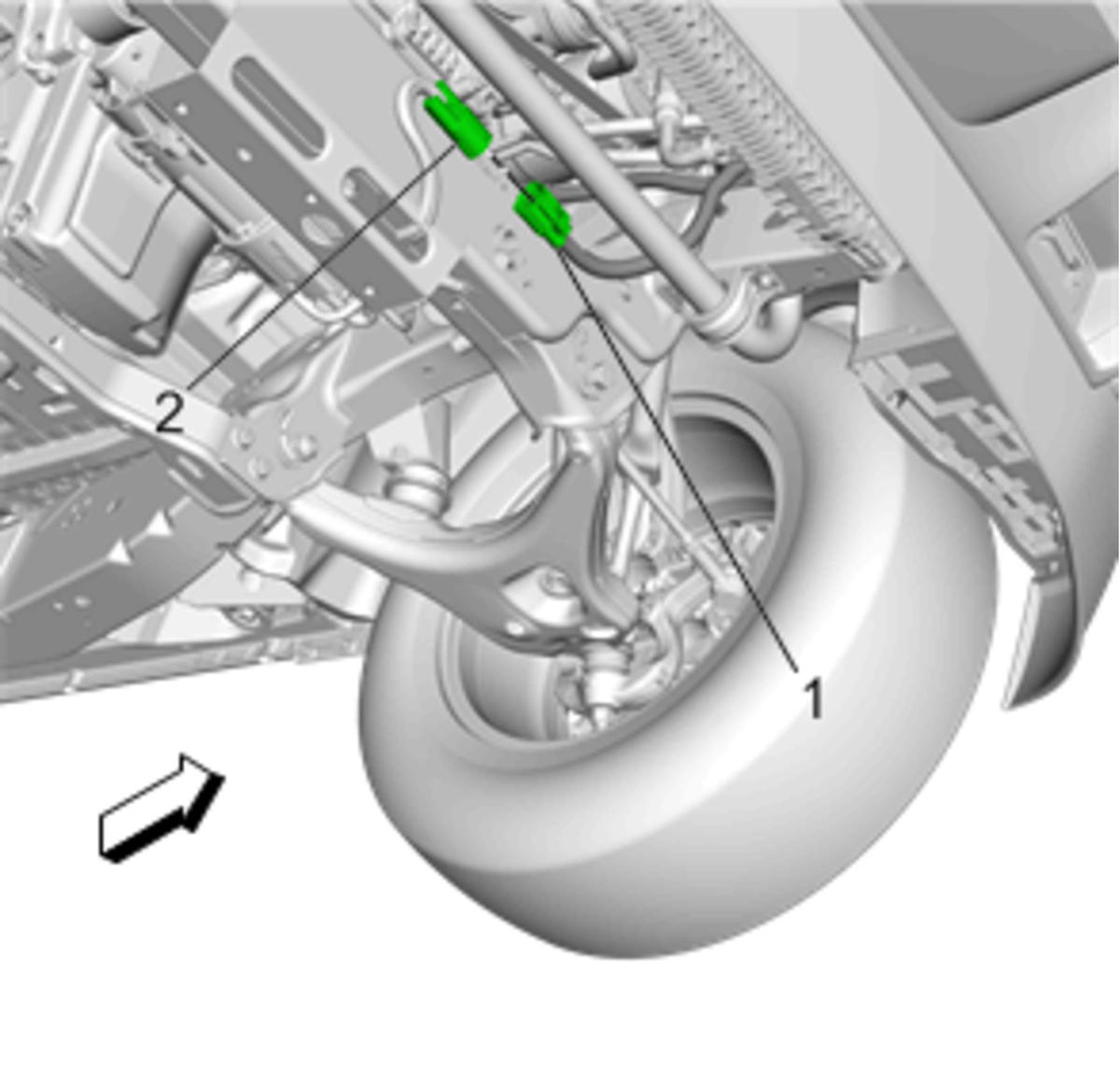

    11. Fig 6: Electronic Power Steering (EPS) Connector And Battery Negative Cable Connector
    GM3802928Courtesy of GENERAL MOTORS COMPANY
  11. Connect the EPS connector (2) to the battery negative cable connector (1) and attach to the front crossmember.

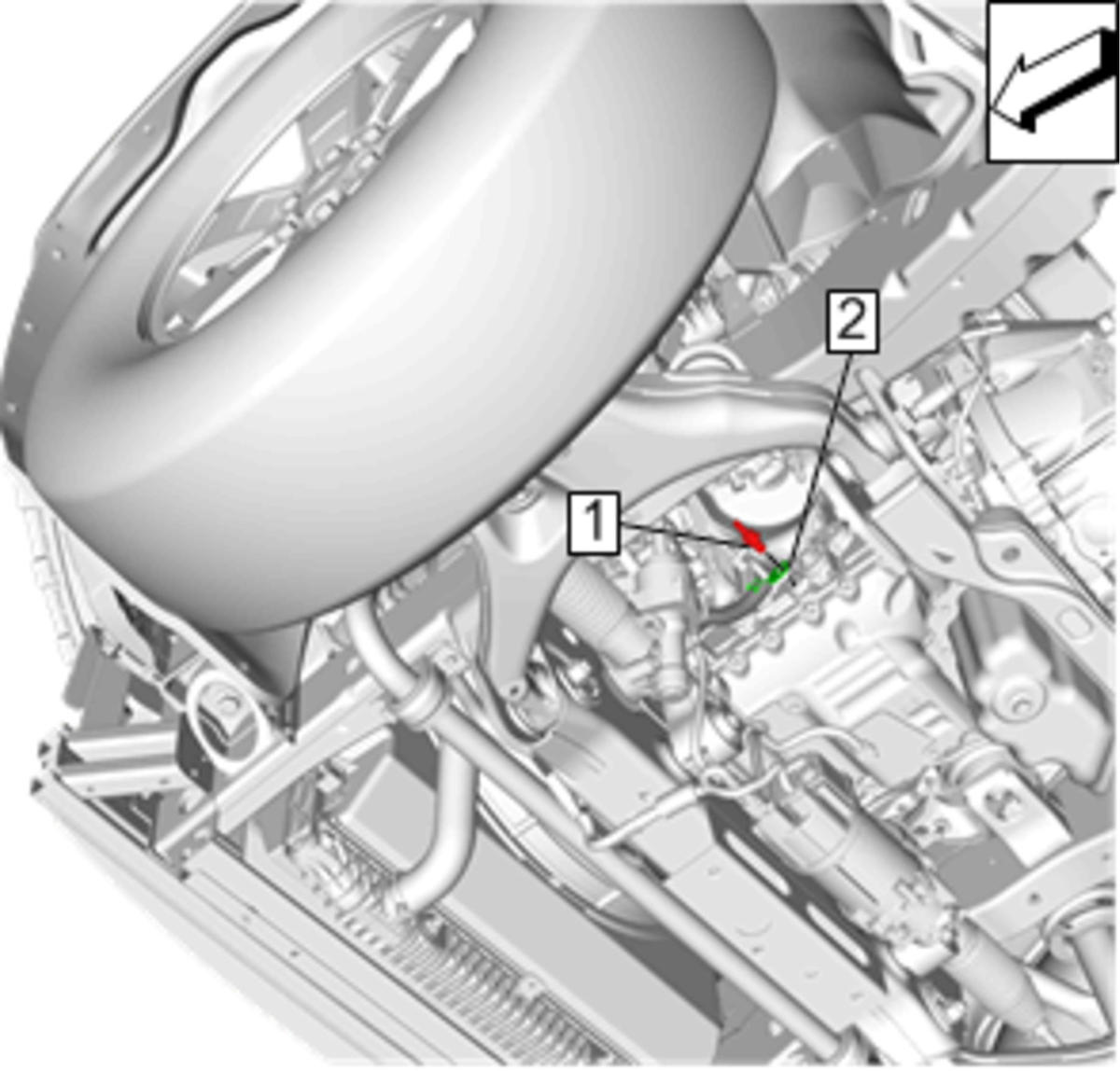

    12. Fig 7: Engine Ground Cable Stud
    GM4160344Courtesy of GENERAL MOTORS COMPANY
  12. Install Battery Negative Cable (1)
  13. Install Engine Ground Cable Stud (1) and tighten 58 N.m (43 lb ft)
  14. Install Underbody Splash Shield Replacement (without ZR2)Underbody Splash Shield Replacement (with ZR2) .
  15. Lower the vehicle.
  16. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
