Installation Procedure

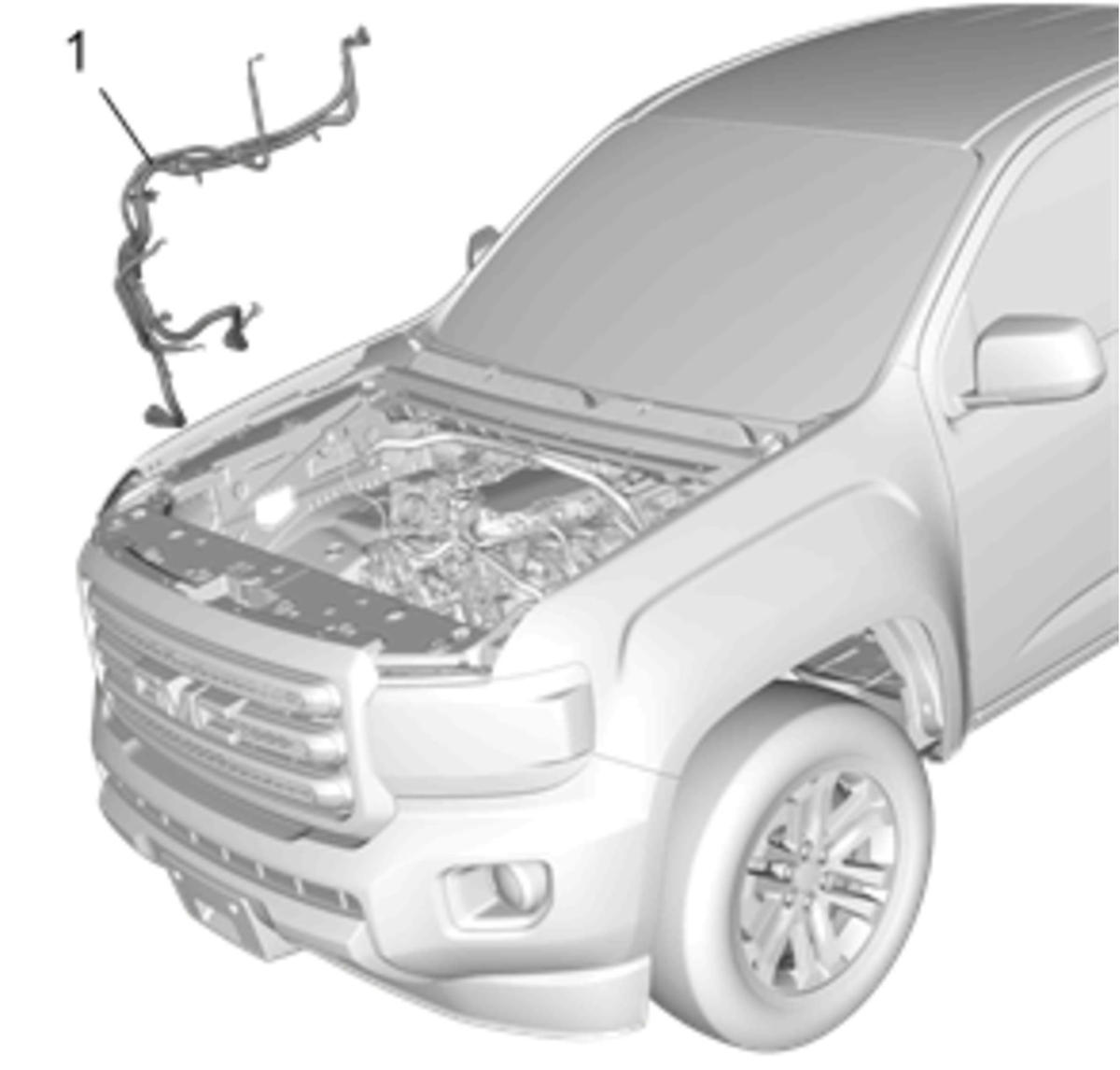

    Fig 1: Battery Negative Cable
    GM3802956Courtesy of GENERAL MOTORS COMPANY
  1. Position the battery negative cable (1) into the engine compartment.
    2. Fig 2: Body Harness Connector And Battery Current Sensor
    GM3802801Courtesy of GENERAL MOTORS COMPANY
  2. Attach the battery current sensor (2) to the battery tray and connect the body harness connector (1).

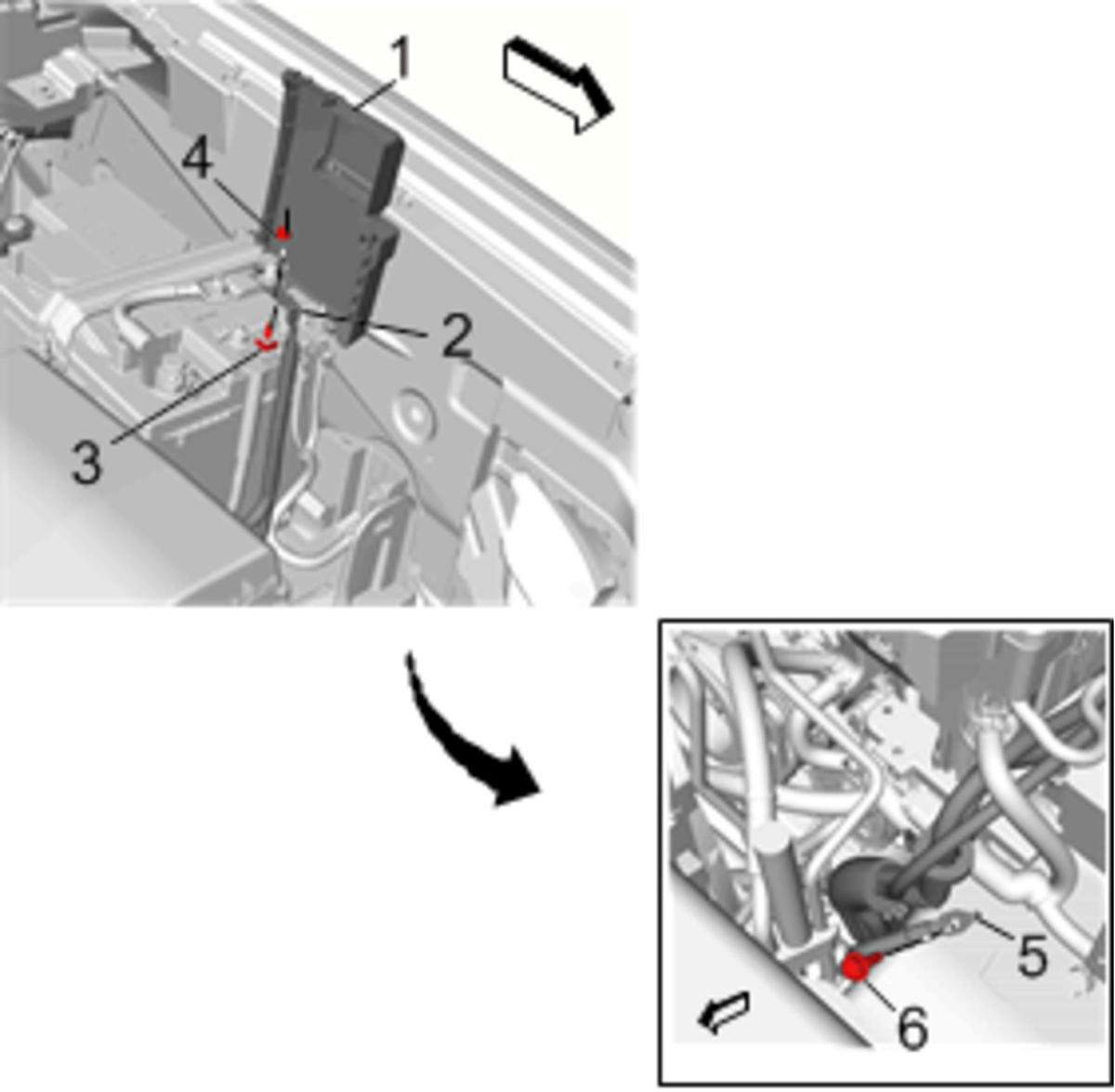

    3. Fig 3: Battery Fuse Block Cover
    GM3802802Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the battery negative cable terminal (5) to the wheel well and tighten the fastener (6) to 22 N.m (16 lb ft).
  4. Install the battery negative cable terminal (2) to the battery fuse block stud (3) and tighten the fastener (4) to 13 N.m (115 lb in).
  5. Close the battery fuse block cover (1).
  6. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    7. Fig 4: Battery Negative Cable Frame Ground Fastener And Battery Negative Cable Terminal
    GM3802927Courtesy of GENERAL MOTORS COMPANY
  7. Install the battery negative cable terminal (1), to the chassis frame, and tighten the fastener (2) to 22 N.m (16 lb ft).
    8. Fig 5: Electronic Power Steering (EPS) Connector And Battery Negative Cable Connector
    GM3802928Courtesy of GENERAL MOTORS COMPANY
  8. Connect the EPS connector (2) to the battery negative cable connector (1) and attach to the front crossmember.

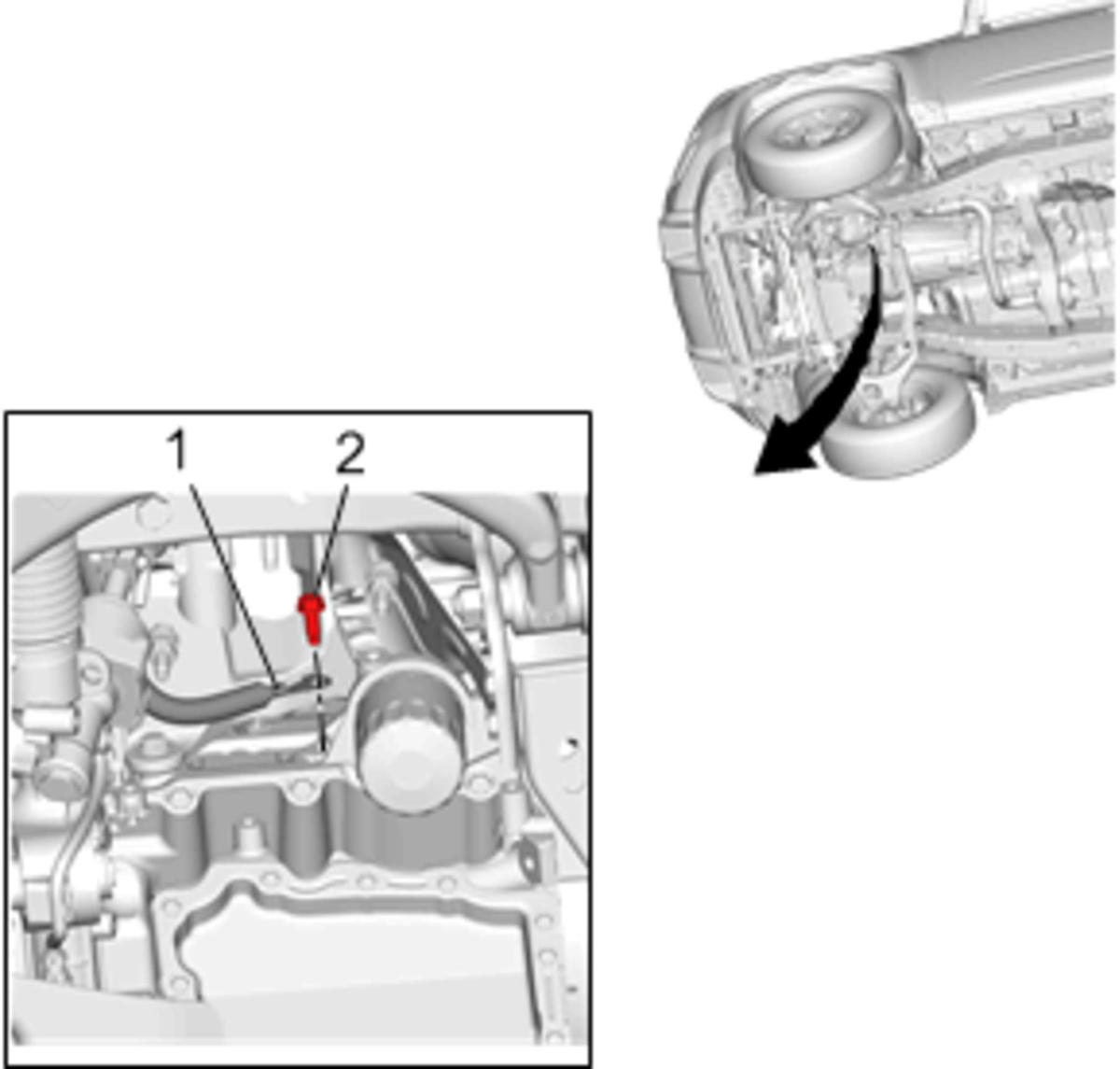

    9. Fig 6: Battery Negative Cable Engine Block Fastener And Battery Negative Cable Terminal
    GM3803724Courtesy of GENERAL MOTORS COMPANY
  9. Install the battery negative cable terminal (2) to the engine block and tighten the fastener (1) to 58 N.m (43 lb ft).
  10. Install the underbody splash shield. Refer to Underbody Splash Shield Replacement (without ZR2)Underbody Splash Shield Replacement (with ZR2) .
  11. Lower the vehicle.
  12. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
