Installation Procedure

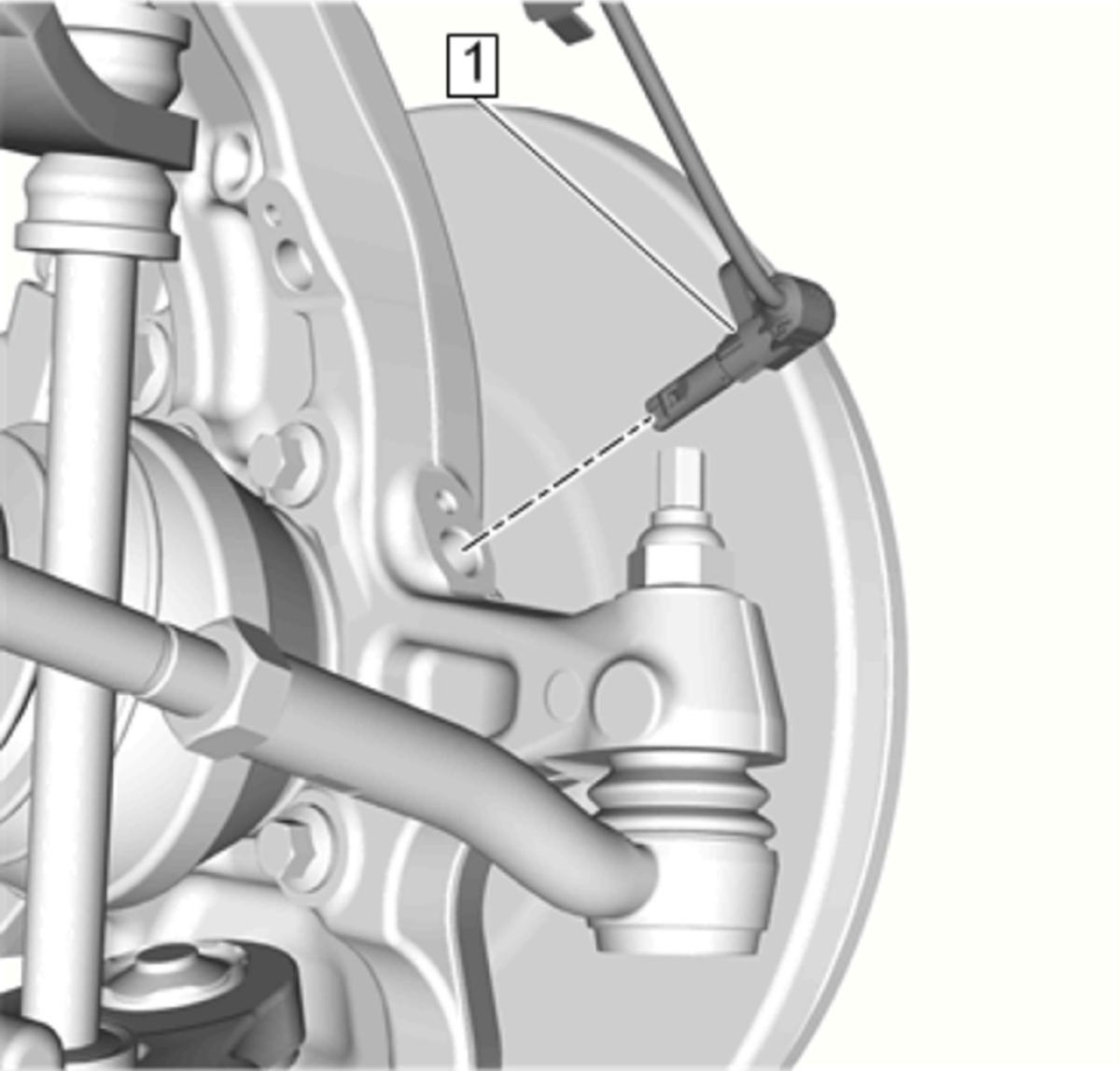

    Fig 1: Front Wheel Speed Sensor
    GM4774701Courtesy of GENERAL MOTORS COMPANY
  1. Install Front Wheel Speed Sensor (1)

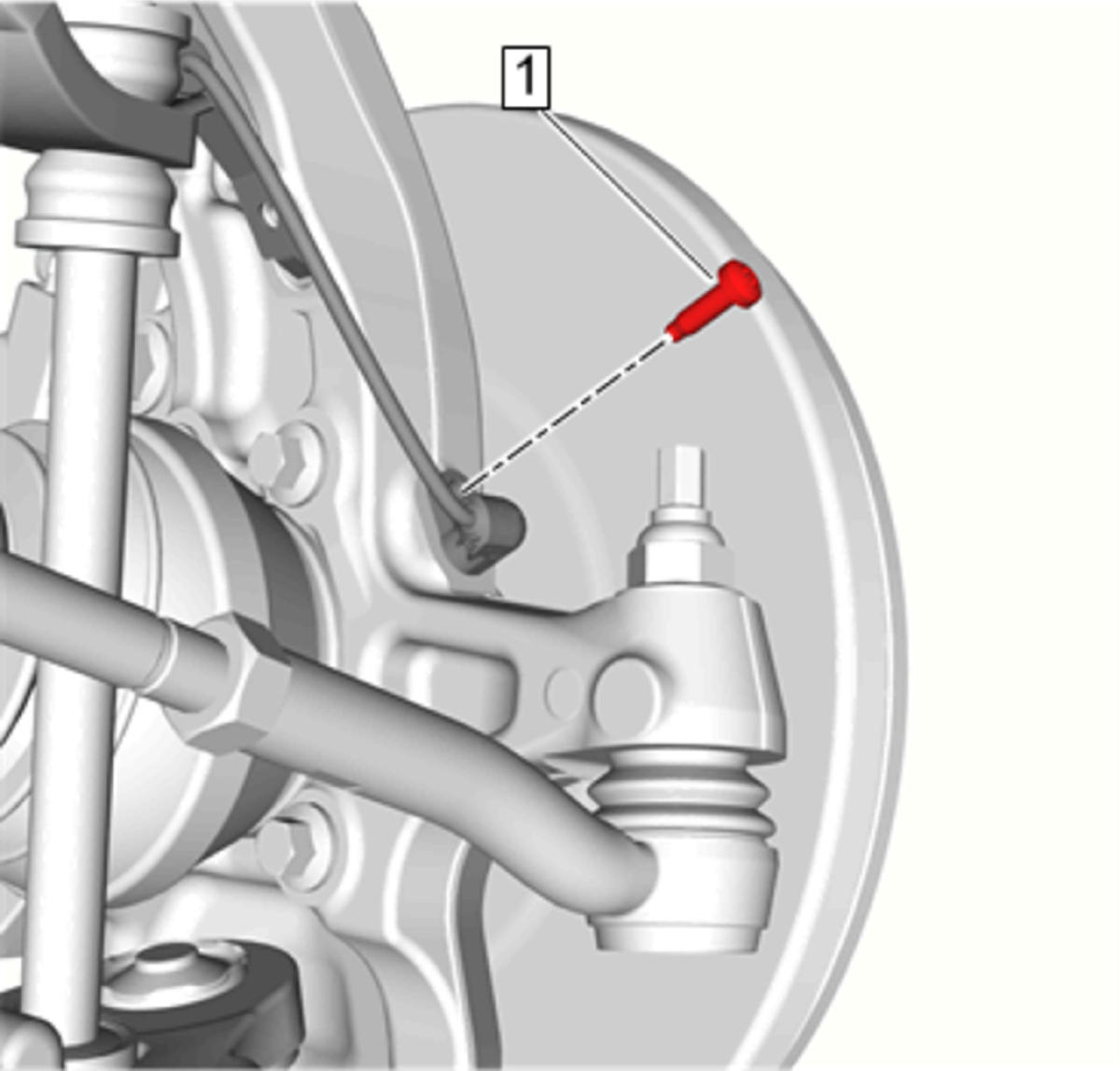

    2. Fig 2: Front Wheel Speed Sensor Bolt
    GM4774698Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install Front Wheel Speed Sensor Bolt (1) and tighten 6 N.m (53 lb in)

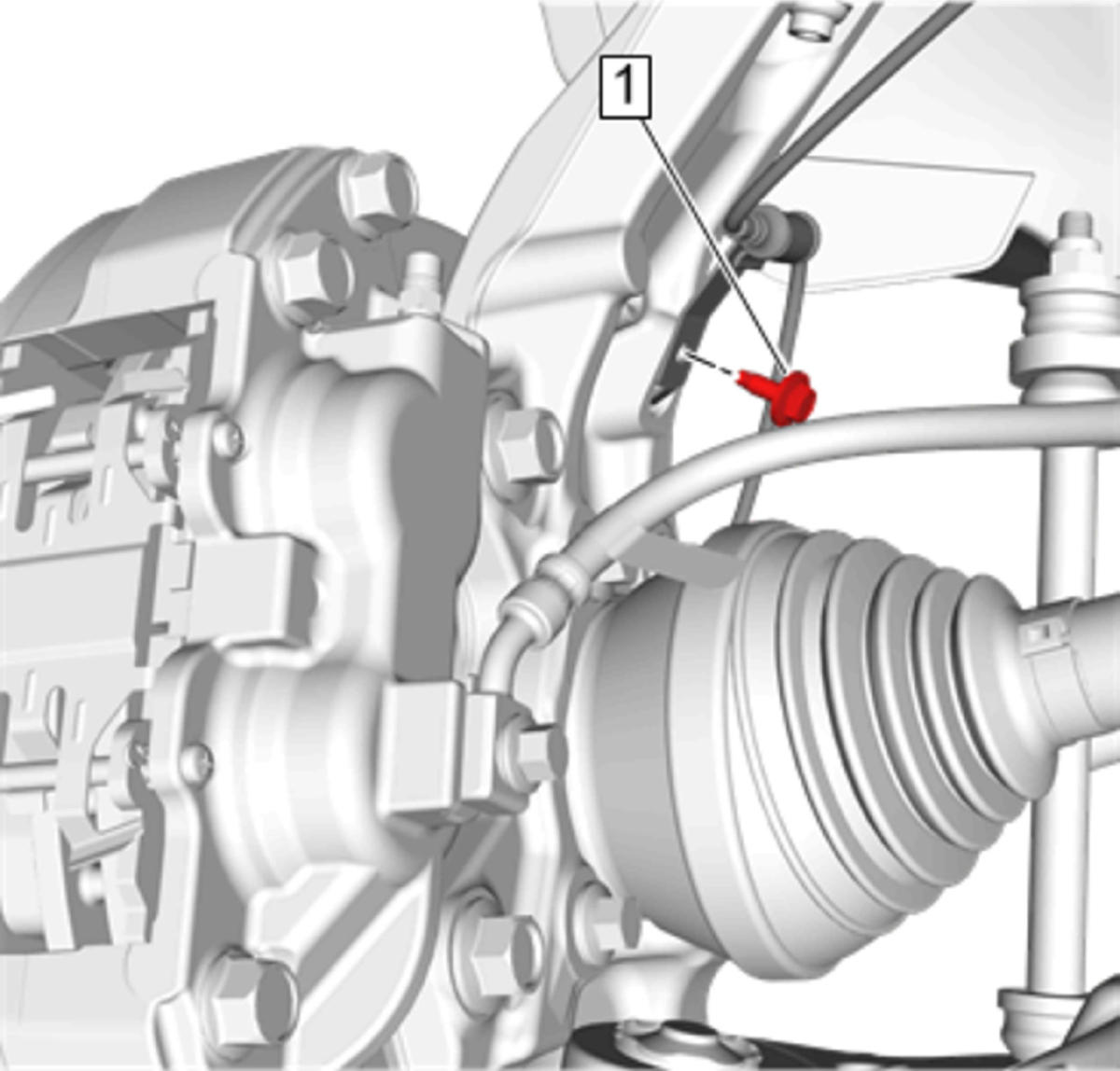

    3. Fig 3: Front Wheel Speed Sensor Bracket Bolt
    GM4774695Courtesy of GENERAL MOTORS COMPANY
  3. Install Front Wheel Speed Sensor Bracket Bolt (1) and tighten 9 N.m (80 lb in)

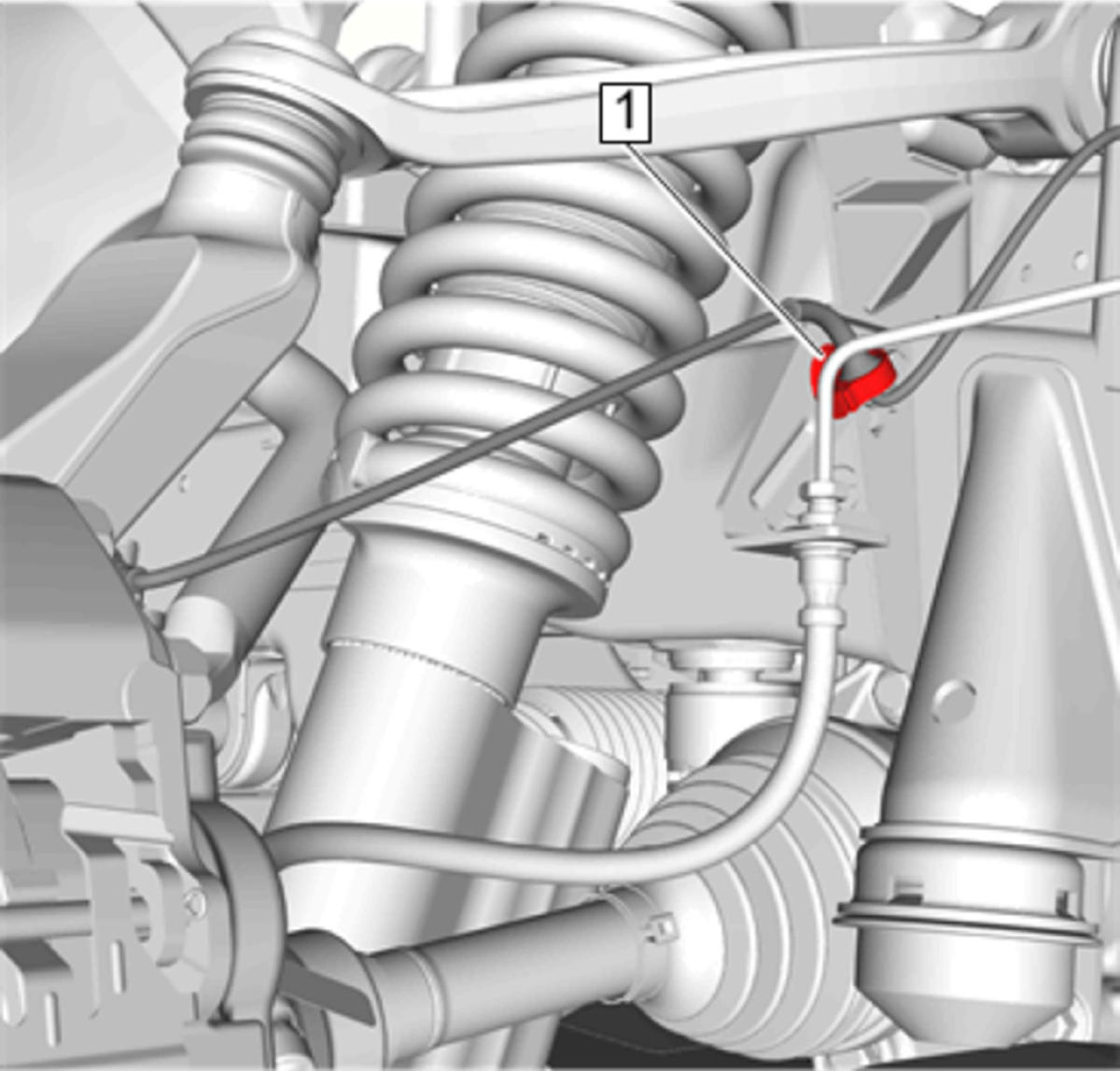

    4. Fig 4: Retainer
    GM4774692Courtesy of GENERAL MOTORS COMPANY
  4. Secure Retainer (1)
    5. Fig 5: Retainer
    GM4774691Courtesy of GENERAL MOTORS COMPANY
  5. Secure Retainer (1)

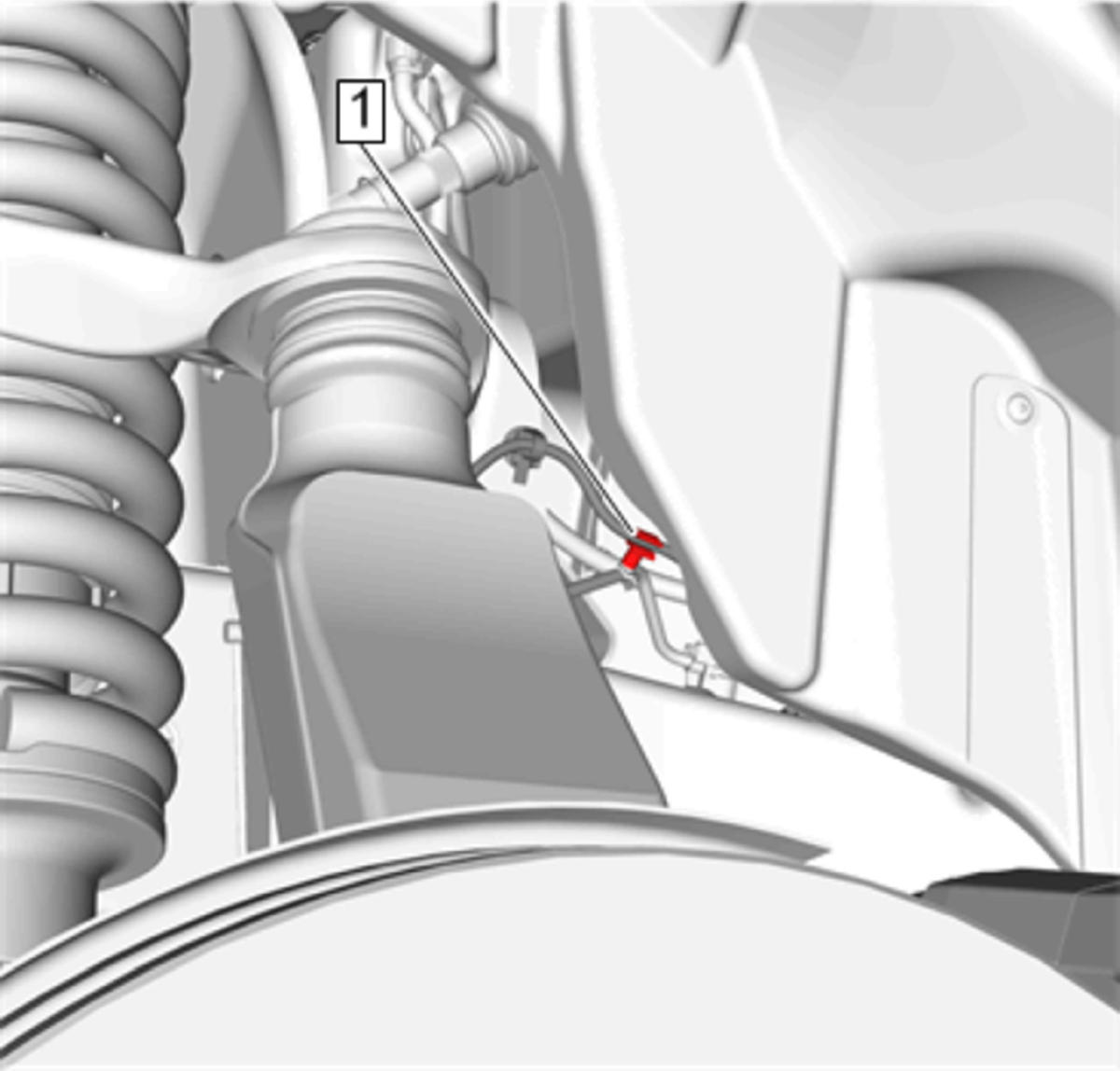

    6. Fig 6: Clip
    GM4774688Courtesy of GENERAL MOTORS COMPANY
  6. Secure Clip (1)

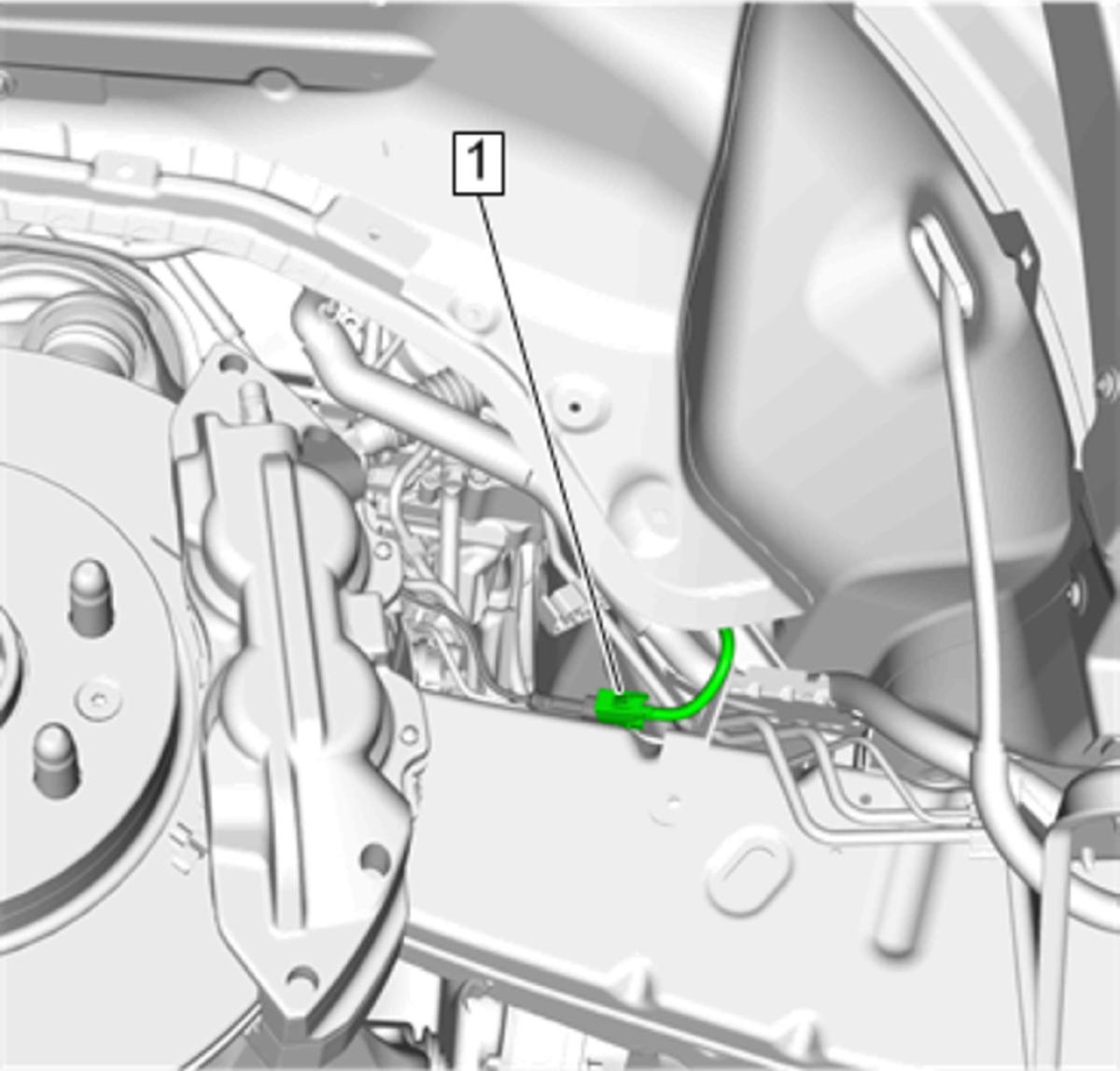

    7. Fig 7: Electrical Connector
    GM4774685Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Front wheelhouse liner not shown for clarity.

  7. Connect Electrical Connector (1) - Connector Reconnection - Wheel Speed Sensor

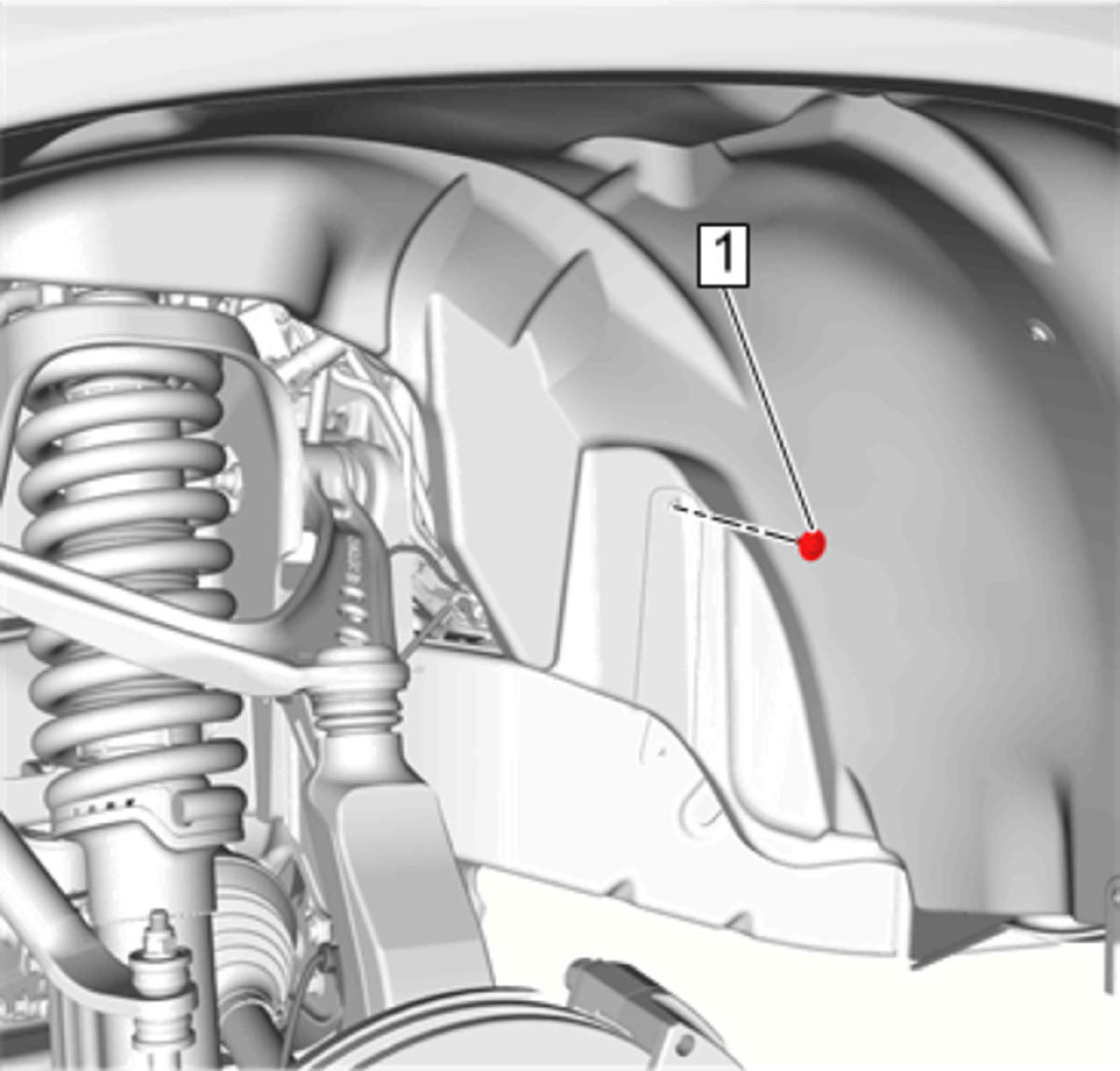

    8. Fig 8: Front Wheelhouse Liner Bolt
    GM4774684Courtesy of GENERAL MOTORS COMPANY
  8. Install Front Wheelhouse Liner Bolt (1) - Front Wheelhouse Liner Replacement (with ZR2)
  9. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
