Installation Procedure

Install the EBCM, if removed. Electronic Brake Control Module Replacement
Install the BPMV to the bracket, if removed. Brake Pressure Modulator Valve Bracket Replacement
Install the BPMV and bracket assembly to the frame rail and slide the BPMV and bracket assembly toward the front of the vehicle.

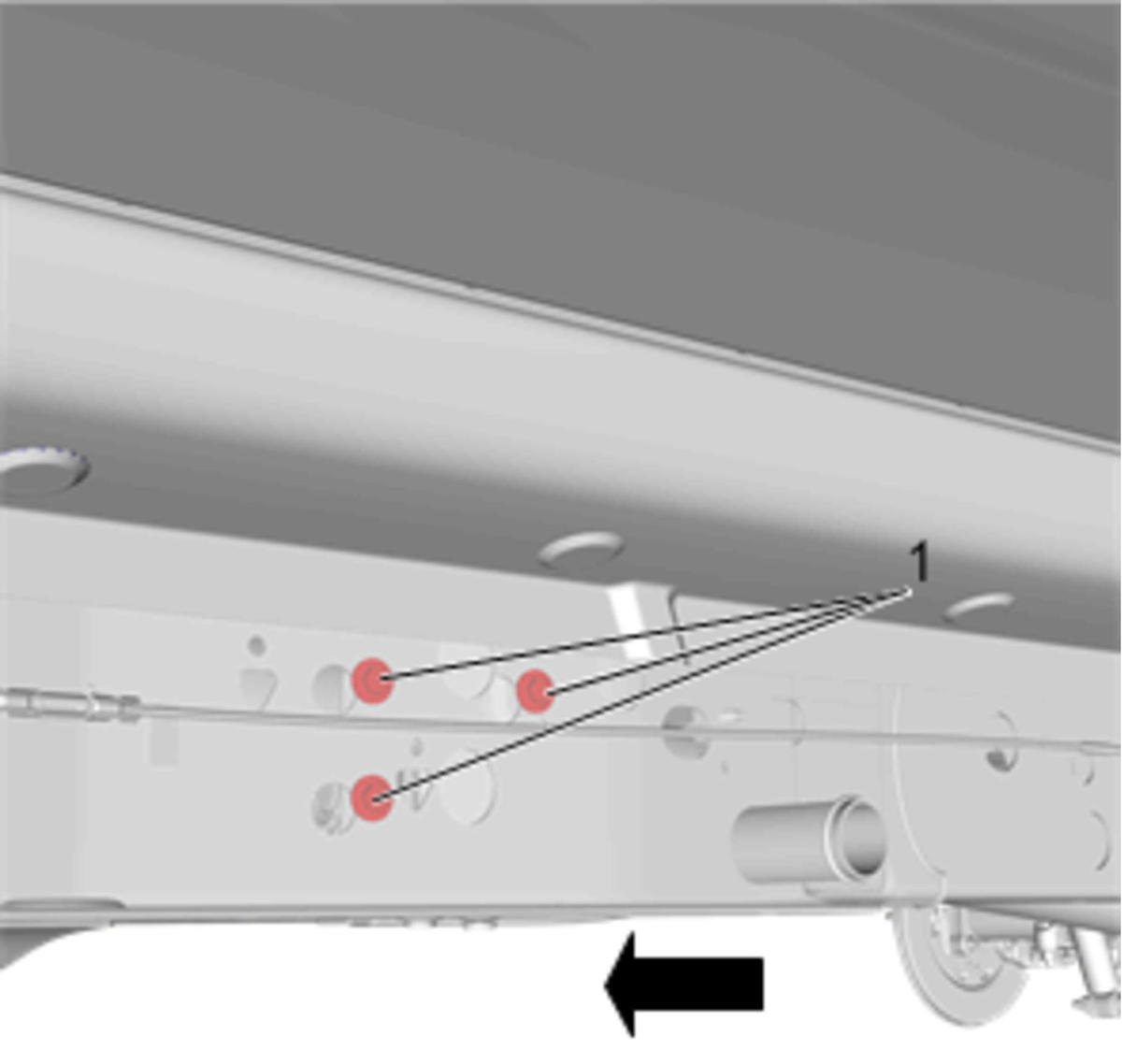

Fig 1: BPMV Bracket Bolts

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Keep the BPMV and bracket assembly firmly seated in the slots of the frame rail and tighten the BPMV bracket bolts (1) to 25 N.m (18 lb ft).

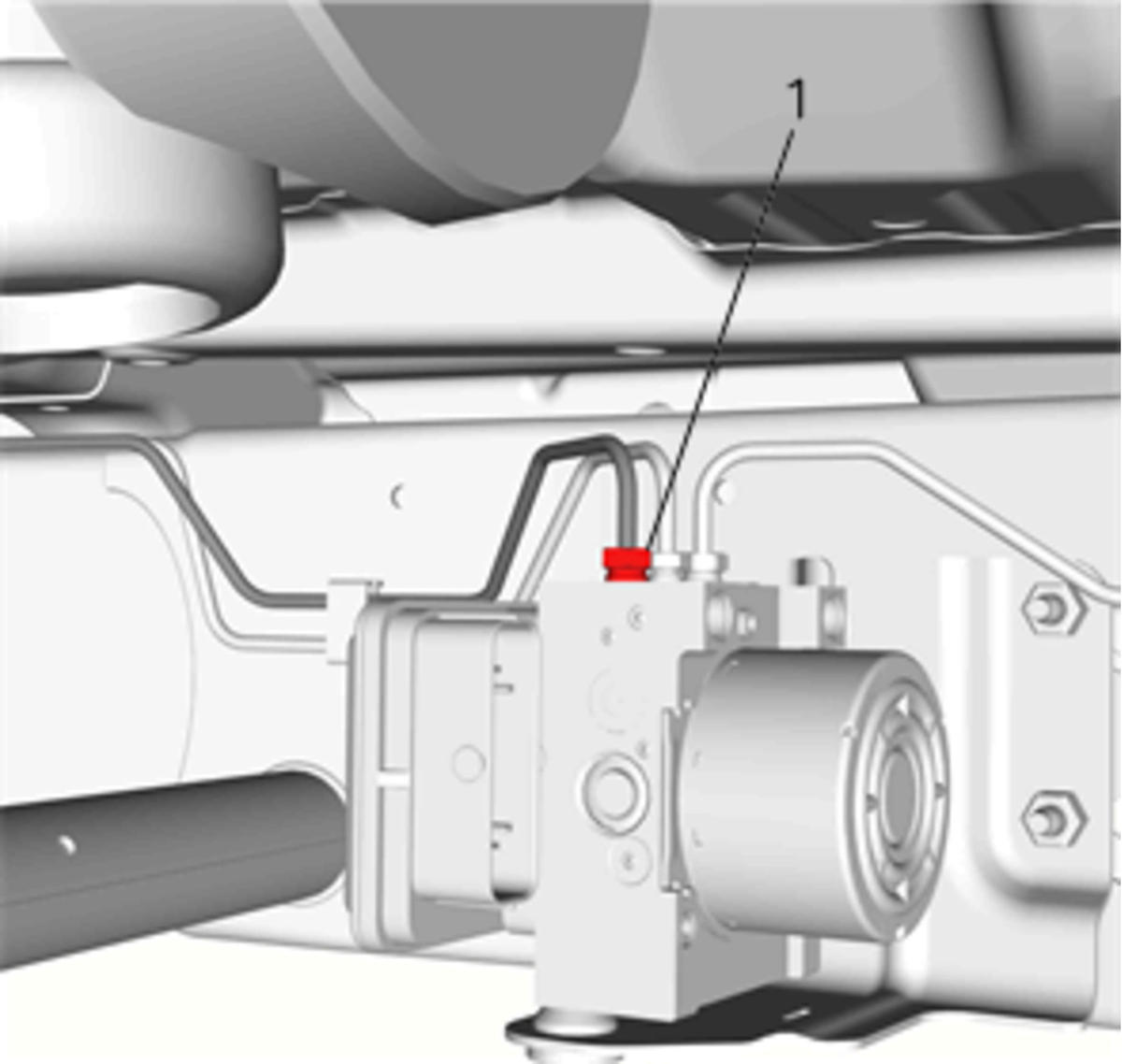

Fig 2: Left Front Brake Pipe Fitting

Courtesy of GENERAL MOTORS COMPANY

Connect the left front brake pipe fitting (1) and tighten the fitting to 18 N.m (13 lb ft).

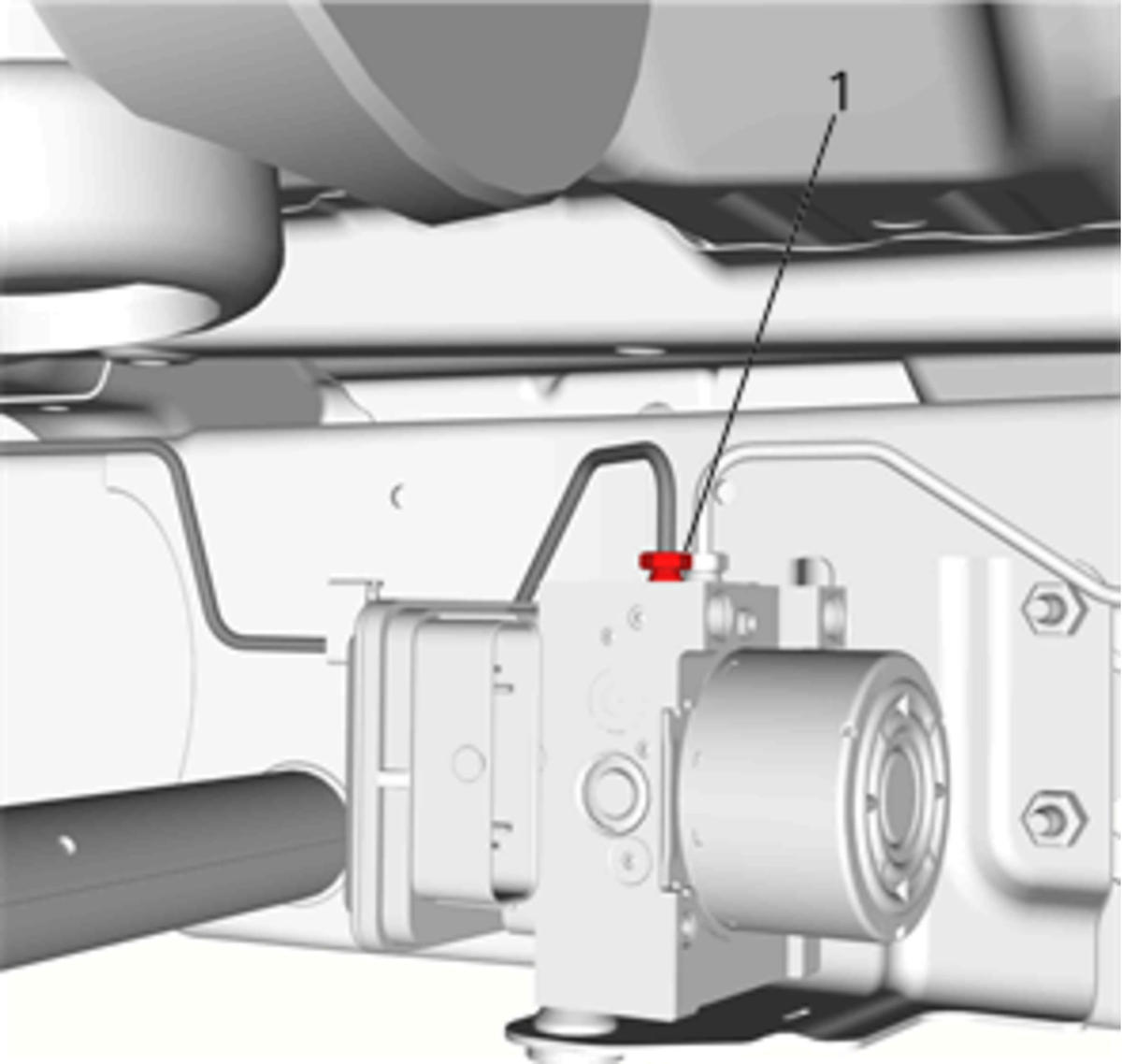

Fig 3: Right Rear Brake Pipe Fitting

Courtesy of GENERAL MOTORS COMPANY

Connect the right rear brake pipe fitting (1) and tighten the fitting to 18 N.m (13 lb ft).

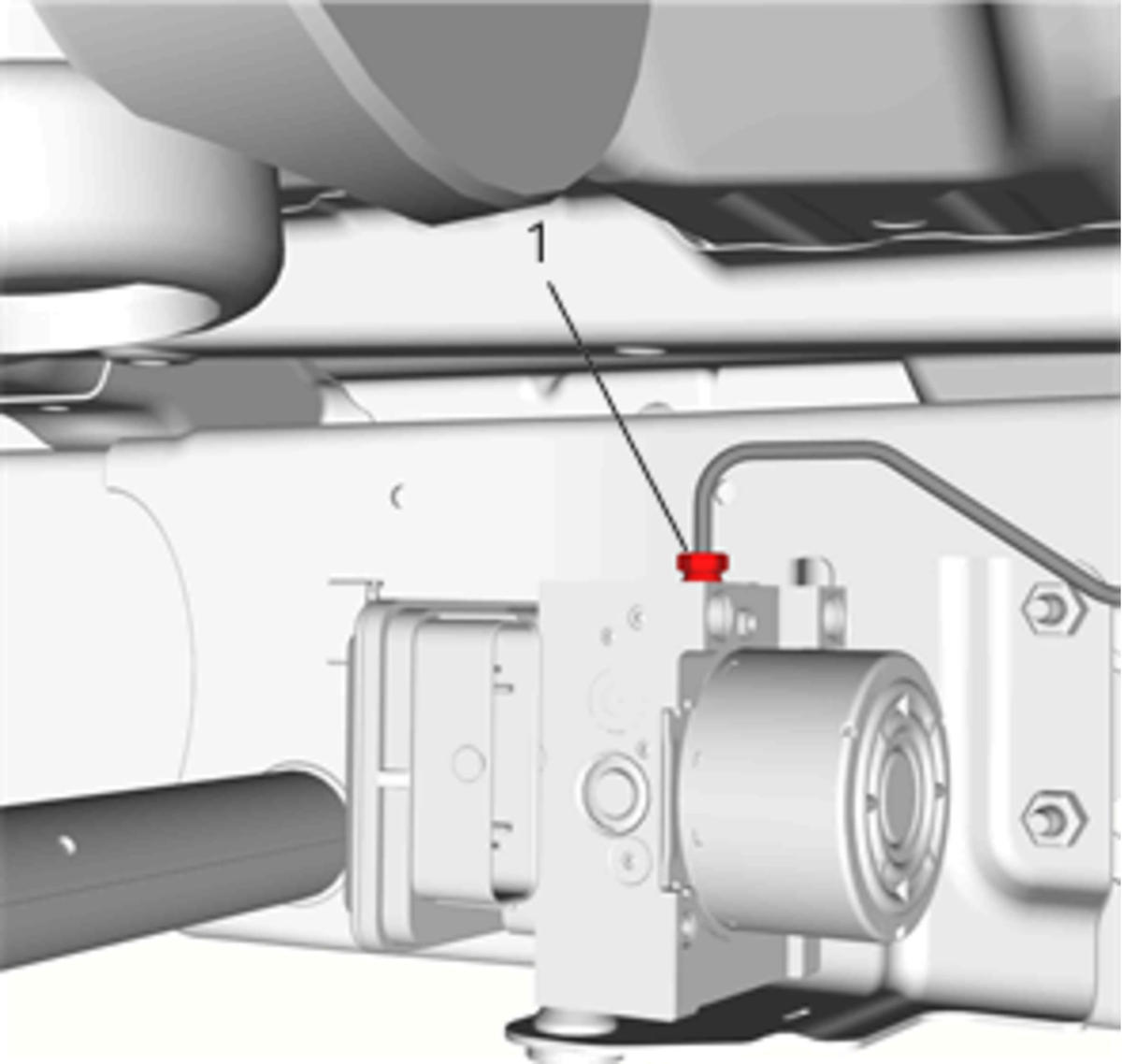

Fig 4: Left Rear Brake Pipe Fitting

Courtesy of GENERAL MOTORS COMPANY

Connect the left rear brake pipe fitting (1) and tighten the fitting to 18 N.m (13 lb ft).

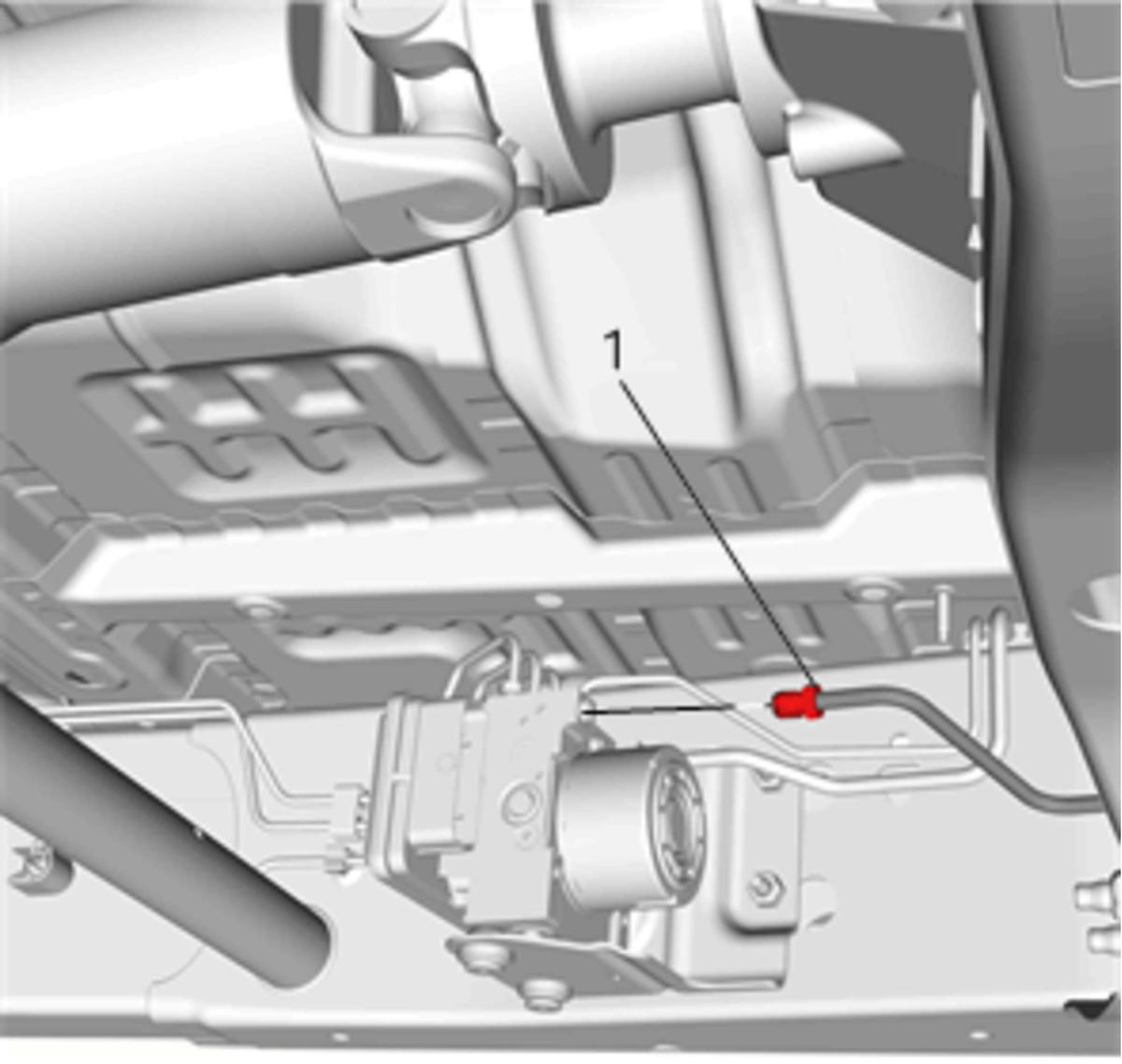

Fig 5: Right Front Brake Pipe Fitting

Courtesy of GENERAL MOTORS COMPANY

Connect the right front brake pipe fitting (1) and tighten the fitting to 18 N.m (13 lb ft).

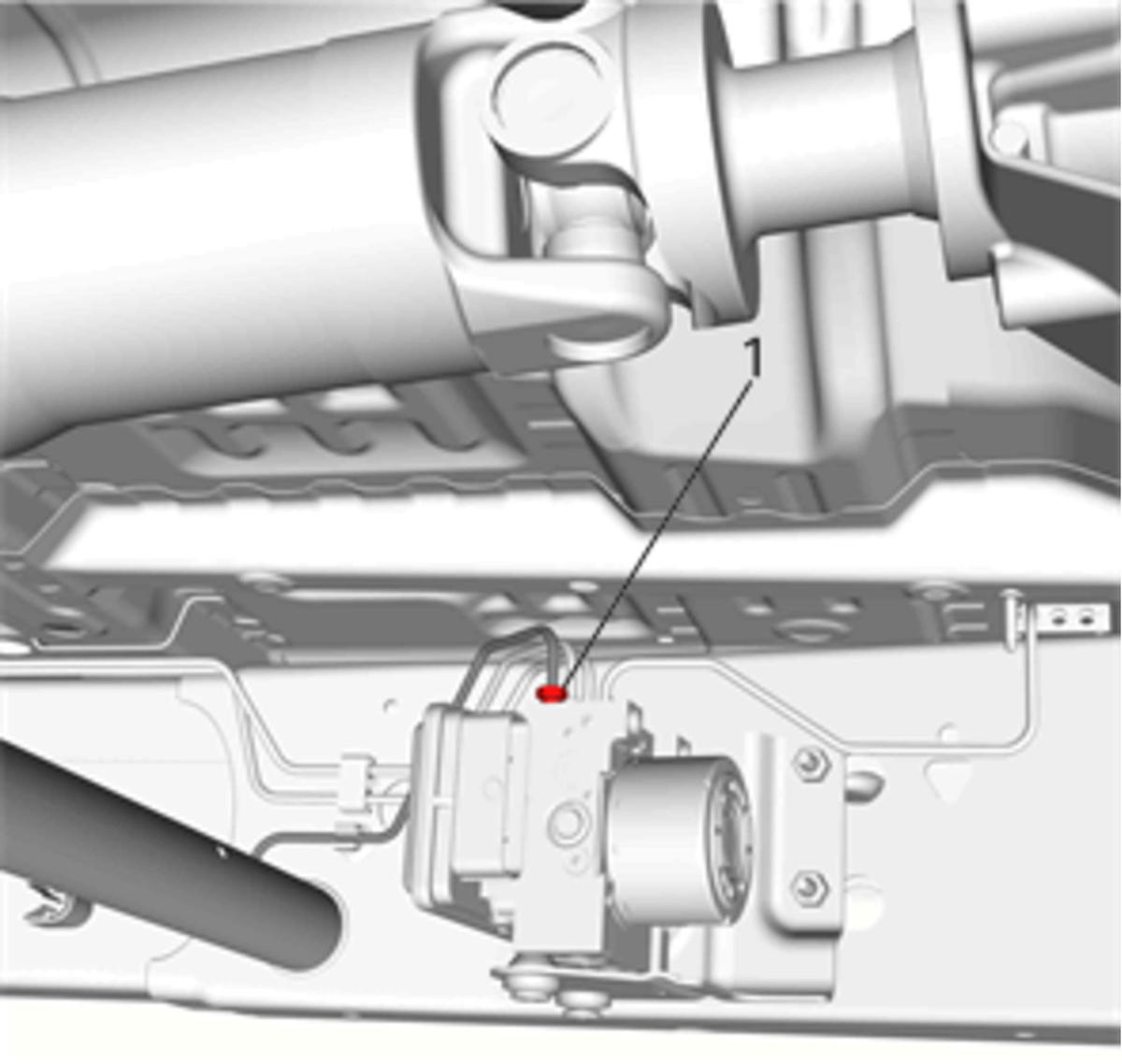

Fig 6: Master Cylinder Secondary Inlet Brake Pipe Fitting

Courtesy of GENERAL MOTORS COMPANY

Connect the master cylinder secondary brake pipe fitting (1) and tighten the fitting to 32 N.m (24 lb ft).

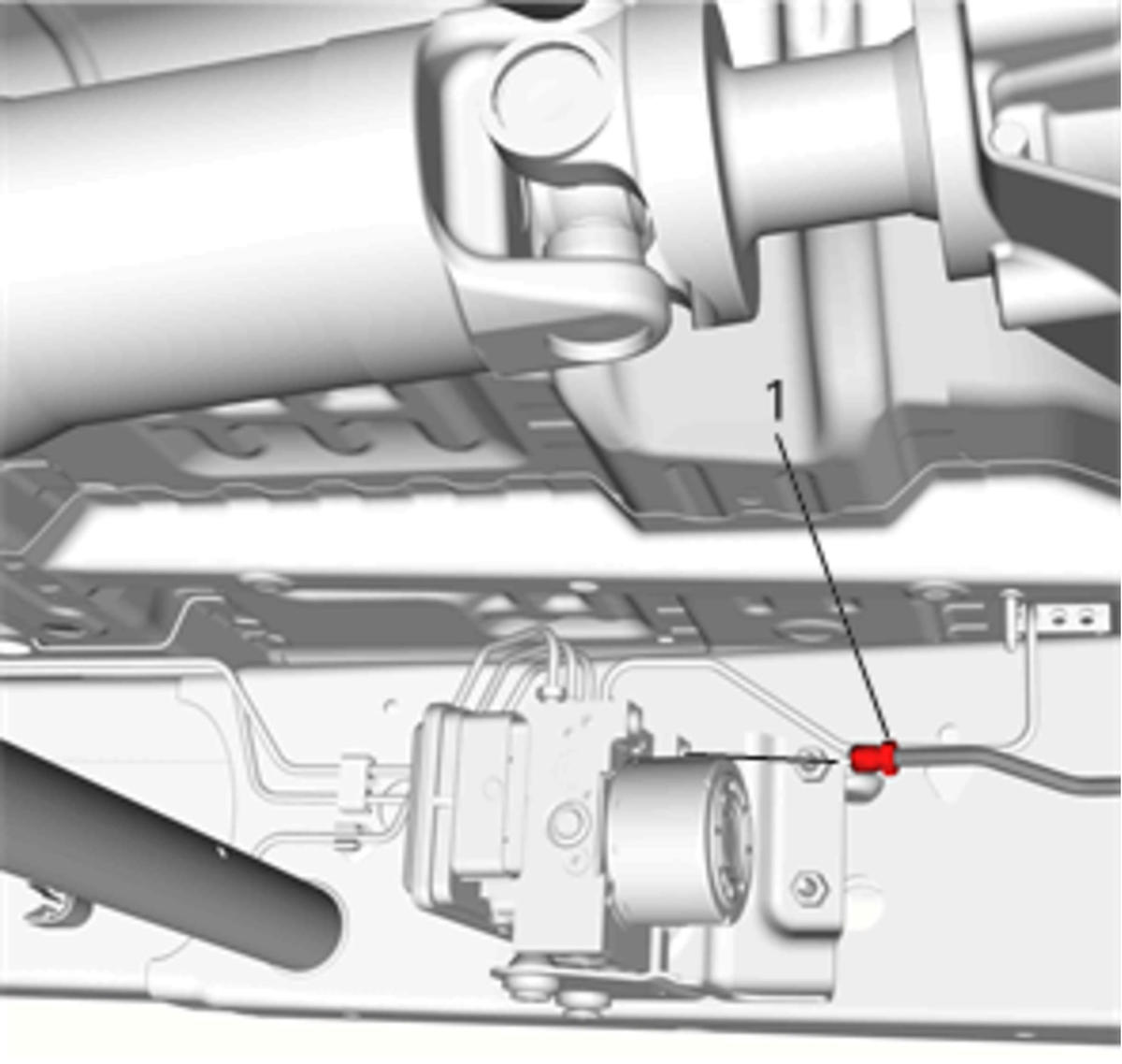

Fig 7: Master Cylinder Primary Inlet Brake Pipe Fitting

Courtesy of GENERAL MOTORS COMPANY

Connect the master cylinder primary brake pipe fitting (1) and tighten the fitting to 32 N.m (24 lb ft).
Connect the EBCM electrical connector.
Install the transfer case skid shield, if equipped. Transfer Case Skid Shield Replacement
Bleed the antilock brake system. Antilock Brake System Automated Bleed
Program the EBCM. Control Module References
Calibrate the BPMV pressure sensor. Brake Pressure Modulator Valve Pressure Sensor Calibration
