Installation Procedure

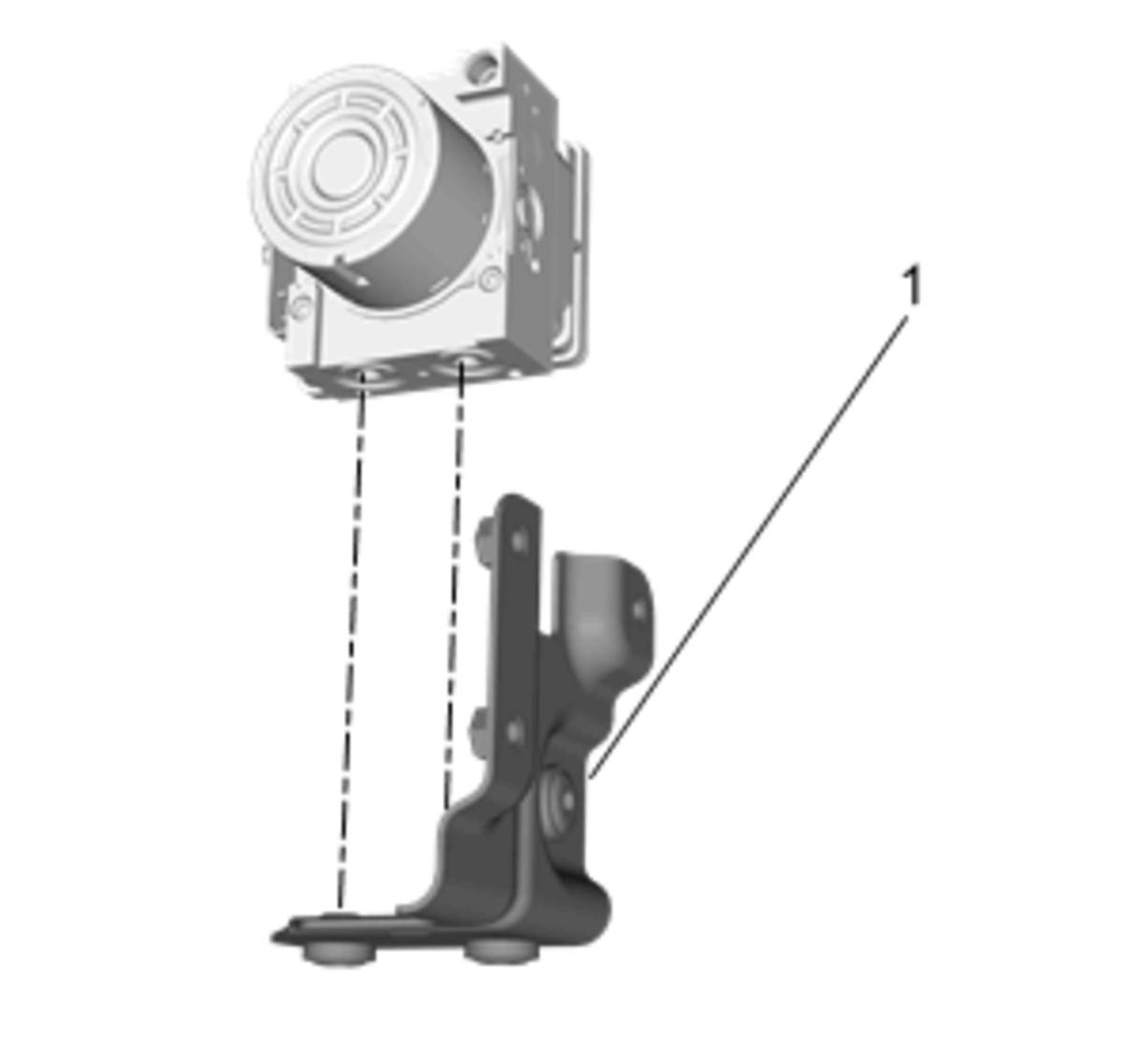

    Fig 1: BPMV Bracket
    GM3683619Courtesy of GENERAL MOTORS COMPANY
  1. Install the BPMV bracket (1).

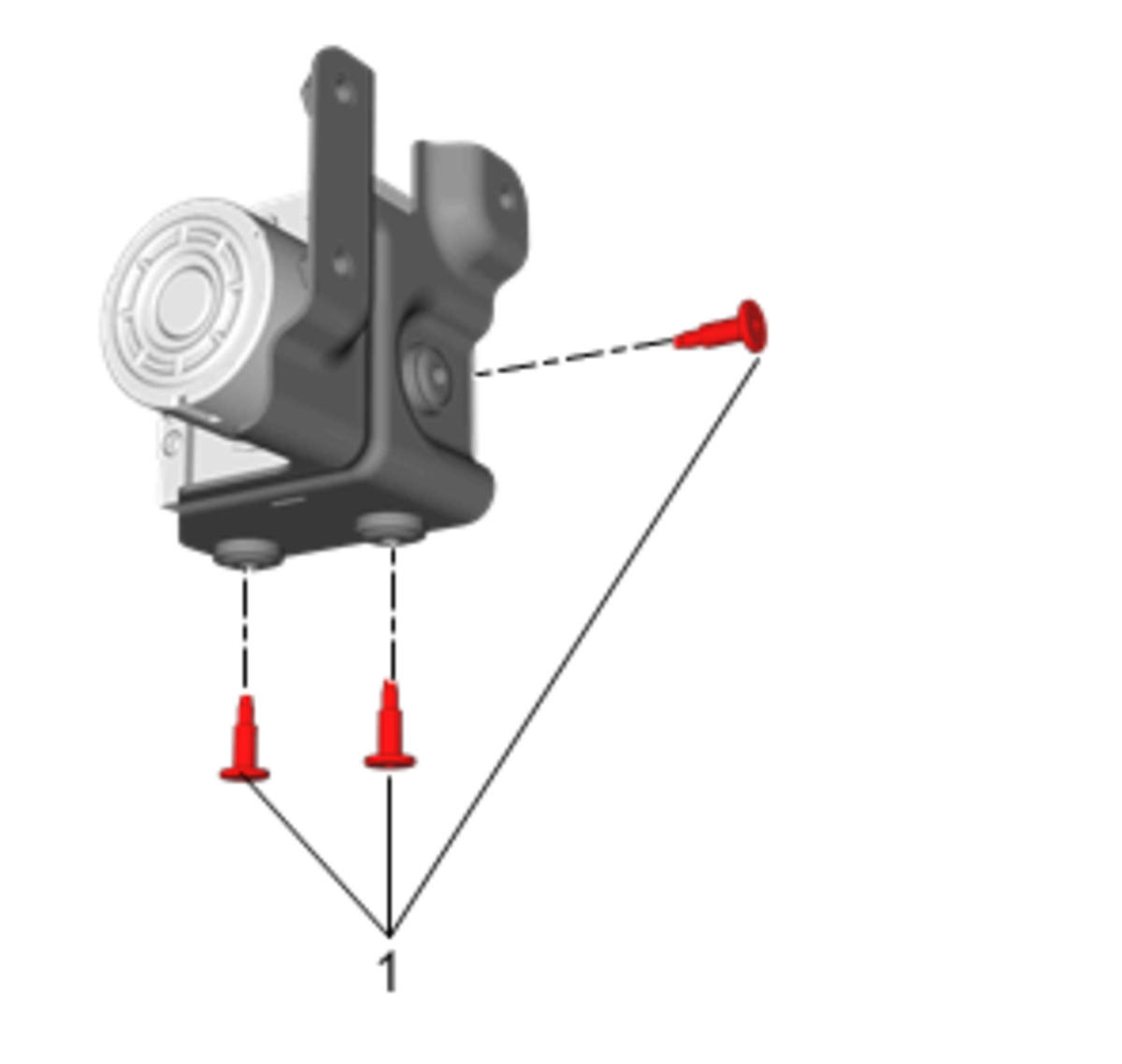

    2. Fig 2: BPMV Bolts
    GM3683618Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the BPMV bolts (1) and tighten to 9 N.m (80 lb in).
  3. Install the BPMV assembly. Refer to Brake Pressure Modulator Valve Replacement .
