Front Side Door Window Regulator Motor Replacement

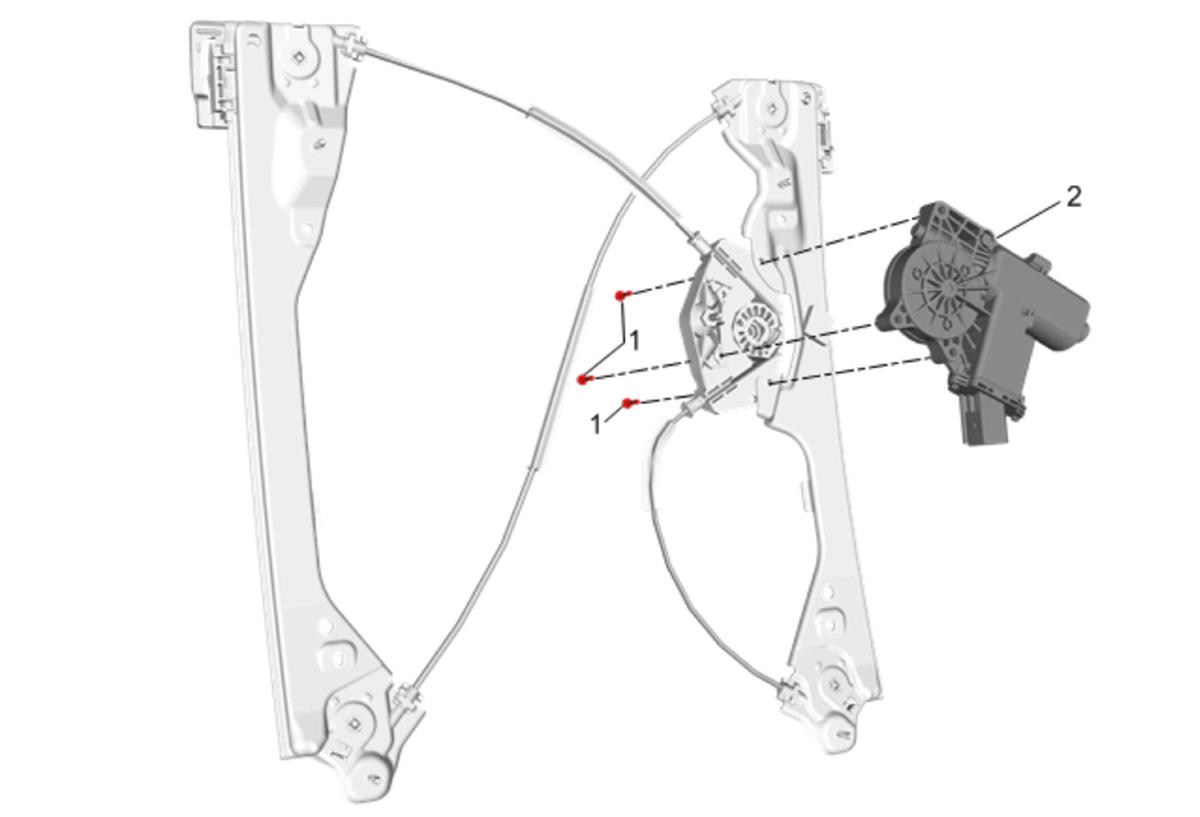

Fig 1: Front Side Door Window Regulator Motor
GM3742218Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement (Driver Side) Front Side Door Window Regulator Replacement (Passenger Side) .
1 Front Side Door Window Regulator Motor Fastener (Qty: 3)
Tighten
11 N.m (97 lb in)
2 Front Side Door Window Regulator Motor
NOTE:

Inspect the door window for proper operation before installing the door trim.
