Front Side Door Window Control Switch Replacement (Crew Cab)

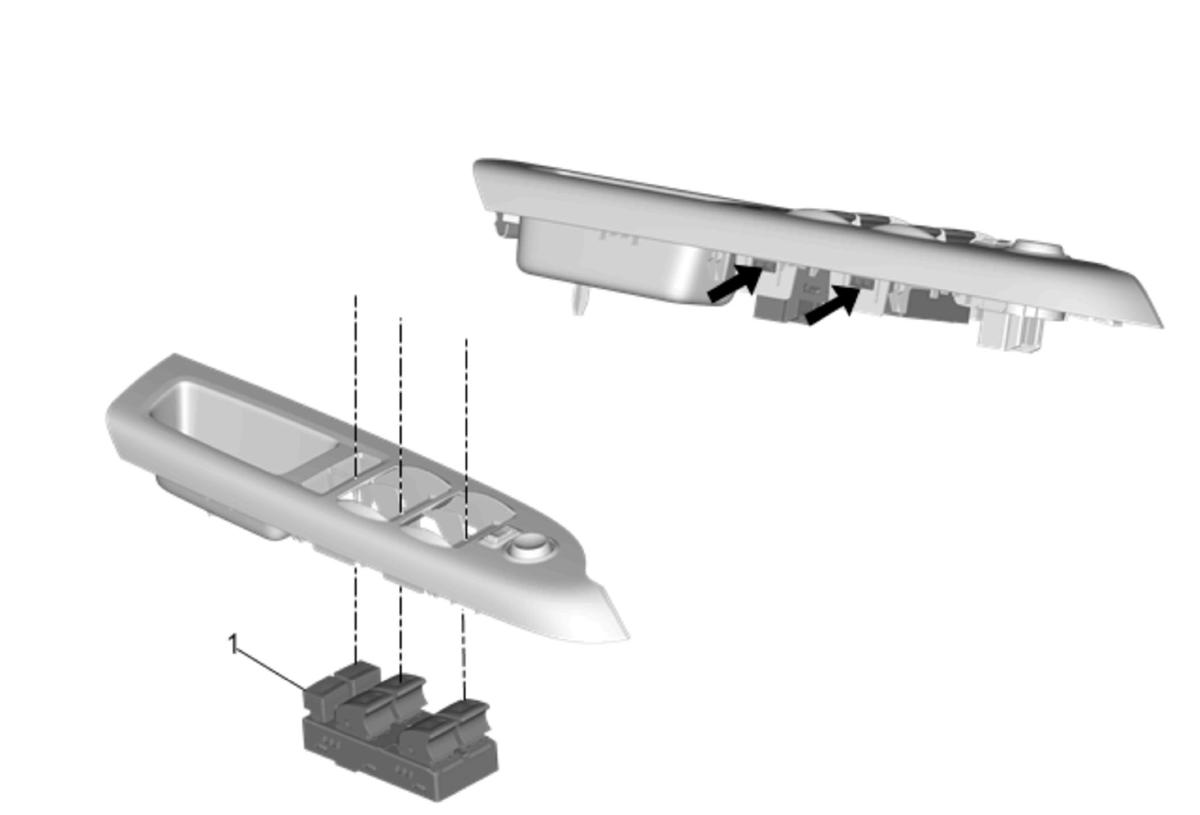

Fig 1: Front Side Door Window Control Switch (Crew Cab)

GM3794439

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the front side door accessory switch mount plate - driver side. Refer to Front Side Door Accessory Switch Mount Plate Replacement - Driver Side (Crew Cab)Front Side Door Accessory Switch Mount Plate Replacement - Driver Side (Extended Cab) .

1

Front Side Door Window Control Switch Assembly

Procedure

Release tabs on switch to remove from front side door accessory switch mount plate - driver side.
Refer to Control Module References for programming and set up procedures, if required.
