Outside Rearview Mirror Remote Control Switch Replacement (Extended Cab)

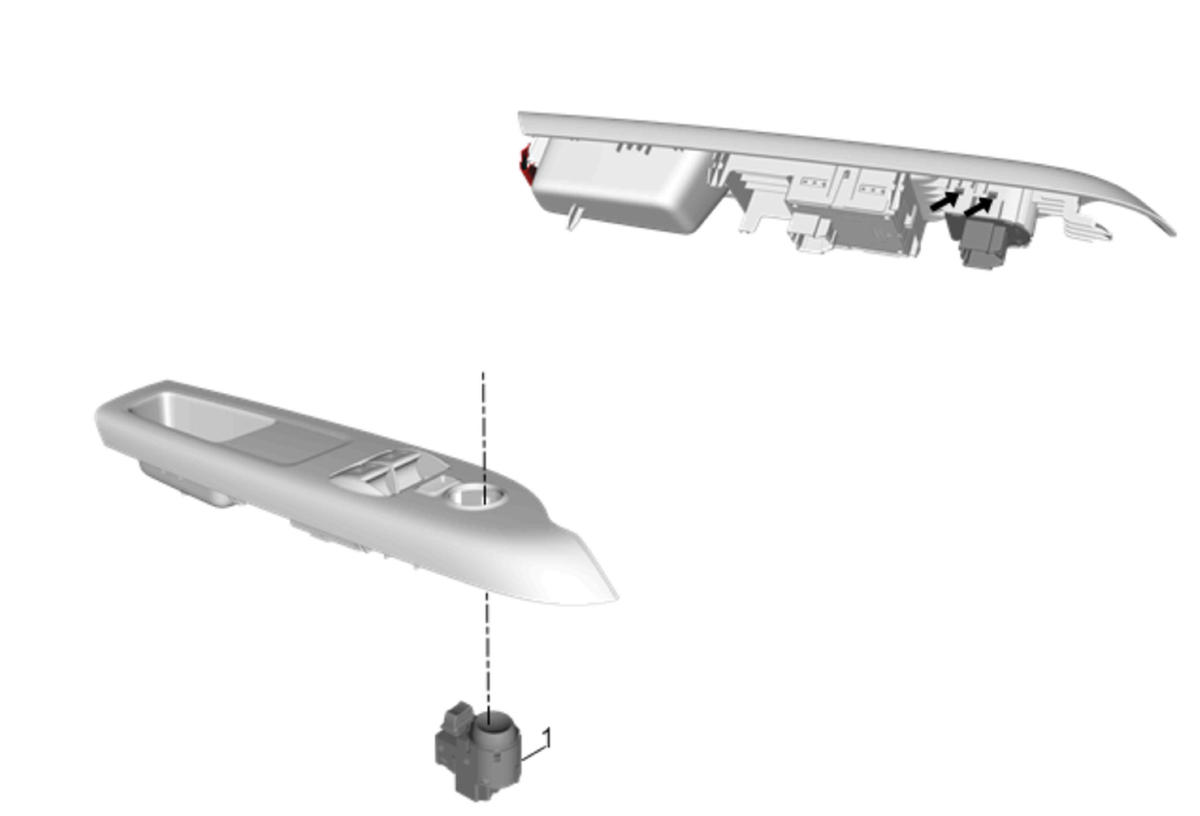

Fig 1: Outside Rearview Mirror Remote Control Switch (Extended Cab)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Accessory Switch Mount Plate Replacement - Driver Side (Extended Cab)
1	Outside Rearview Mirror Remote Control Switch Assembly Procedure Release tabs on switch to remove from front side door accessory switch mount plate - driver side. Refer to Control Module References for programming and set up procedures, if required.

Callout

Component Name

Outside Rearview Mirror Remote Control Switch Assembly

Procedure

Release tabs on switch to remove from front side door accessory switch mount plate - driver side.
Refer to Control Module References for programming and set up procedures, if required.
