Engine Front Splash Shield Replacement

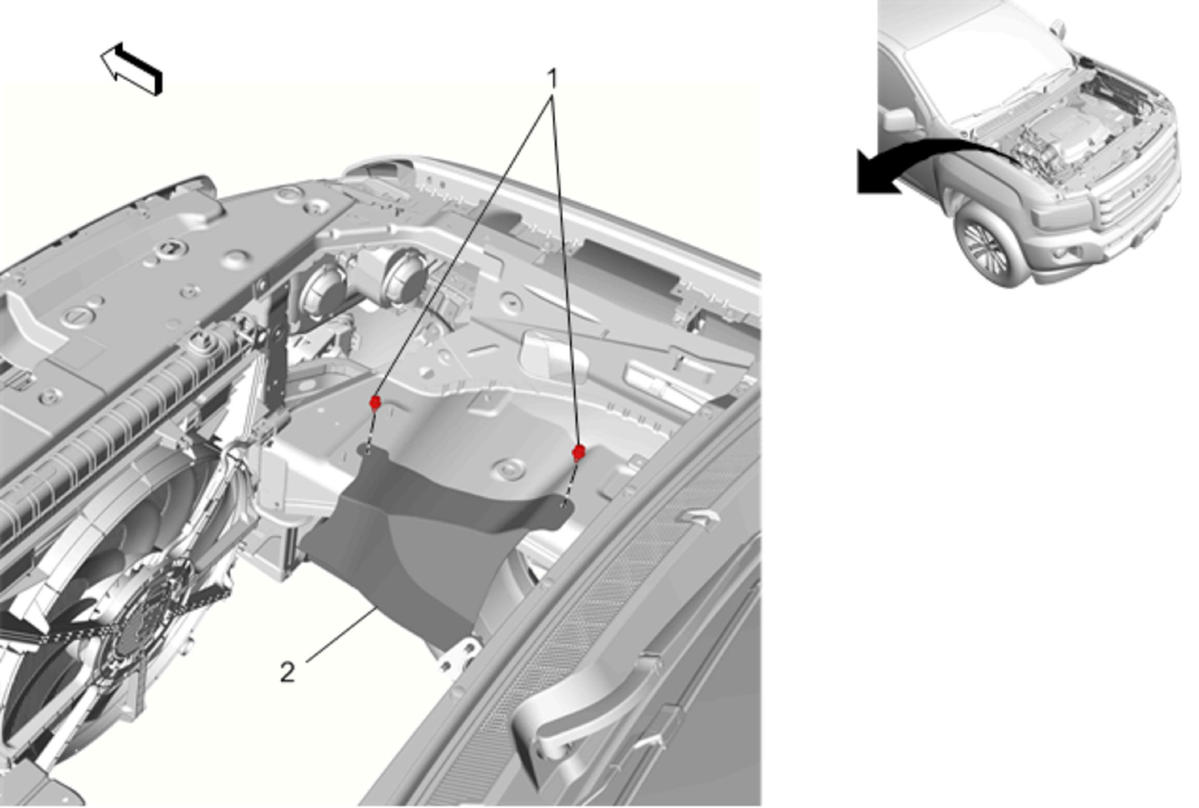

Fig 1: Engine Front Splash Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement , for the 3.6L engine or Air Cleaner Assembly Replacement for the 2.5L engine
1	Engine Front Splash Shield Plastic Retainers (Qty: 2)
2	Engine Front Splash Shield
