Radio Replacement

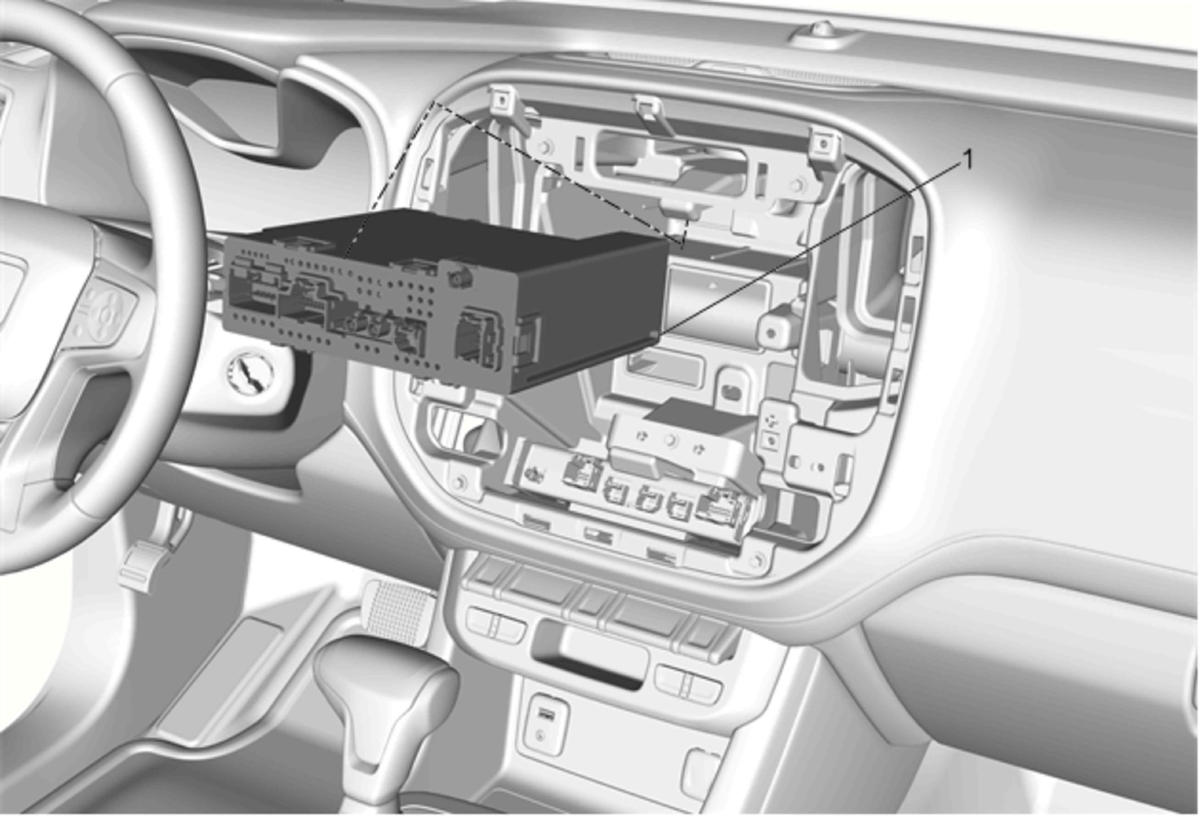

Fig 1: Radio

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the radio control assembly. Refer to Radio Control Assembly Replacement .
1	Radio Procedure Disconnect the electrical connections. Disengage radio from the top bracket tab and slide module rearward to release. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the radio control assembly. Refer to Radio Control Assembly Replacement .

Radio

Procedure
