Rearview Driver Information Camera Replacement

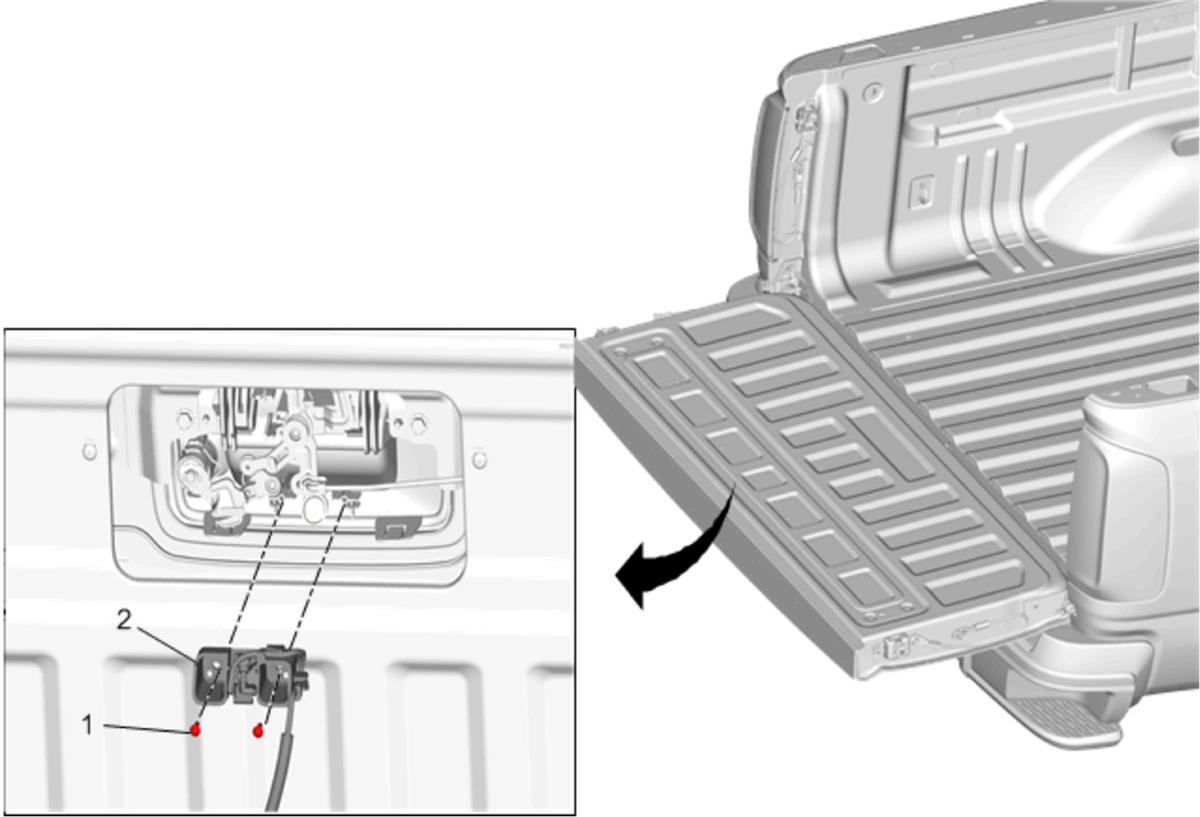

Fig 1: Rearview Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the pickup box endgate access hole cover panel. Refer to Pickup Box Endgate Access Hole Cover Panel Replacement .
1	Rearview Driver Information Camera Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  1 N.m (9 lb in)
2	Rearview Driver Information Camera Procedure  Disconnect the electrical connector.
