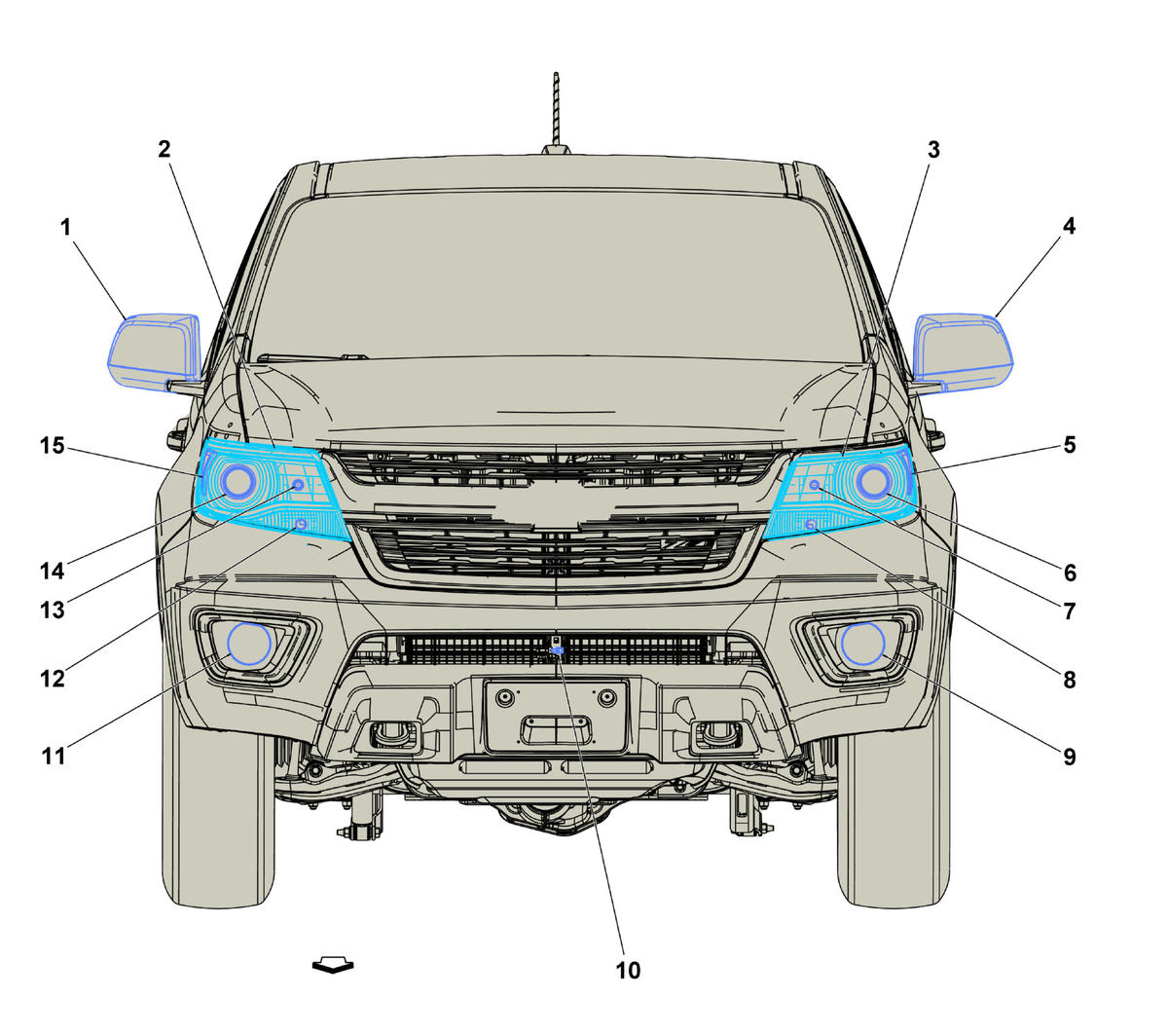

Front of Vehicle Components (Chevrolet/X88)
Front of Vehicle Components (Chevrolet/X88)
| Items |
|---|
| 1: A9B Outside Rearview Mirror - Passenger |
| 2: E13RA Headlamp Assembly - Right |
| 3: E13LA Headlamp Assembly - Left |
| 4: A9A Outside Rearview Mirror - Driver |
| 5: E4J Park Lamp - Left Front (X88) |
| 6: E4G Headlamp - Left Low Beam |
| 7: E4E Headlamp - Left High Beam |
| 8: E4N Park/Turn Signal Lamp - Left |
| 9: E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front |
| 10: B9 Ambient Air Temperature Sensor |
| 11: E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front |
| 12: E4P Park/Turn Signal Lamp - Right |
| 13: E4F Headlamp - Right High Beam |
| 14: E4H Headlamp - Right Low Beam |
| 15: E4K Park Lamp - Right Front (X88) |
