Below Left Side of the Instrument Panel Components (N8D)

Below Left Side of the Instrument Panel Components (N8D)

Items
1: B80 Park Brake Switch B80 Park Brake Switch
2: B25B Clutch Pedal Position Sensor (N8D) B25B Clutch Pedal Position Sensor
3: B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor (N8D)
4: B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor

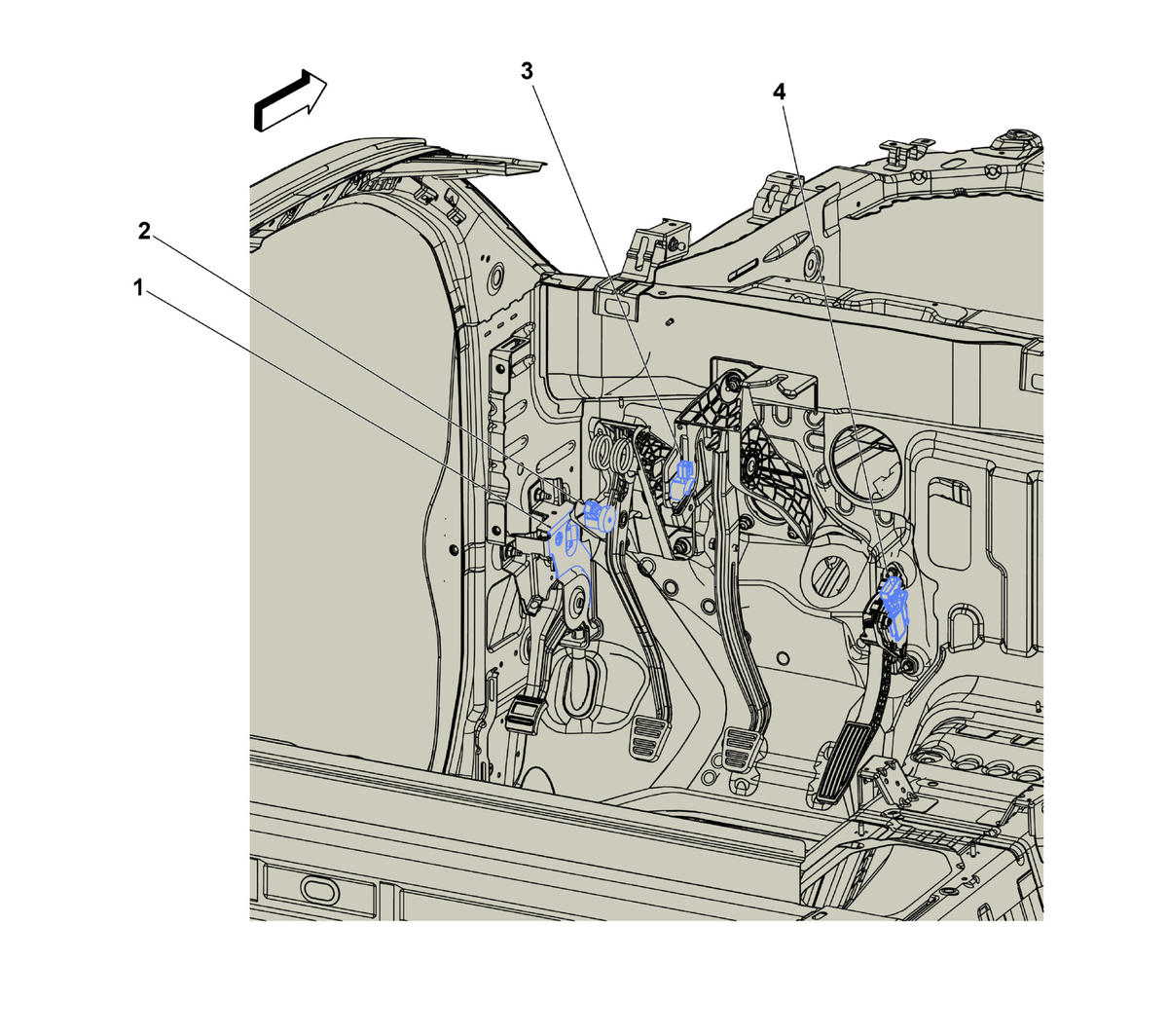

Fig 1: Below Left Side of the Instrument Panel Components (N8D)
GM3873661Courtesy of GENERAL MOTORS COMPANY
