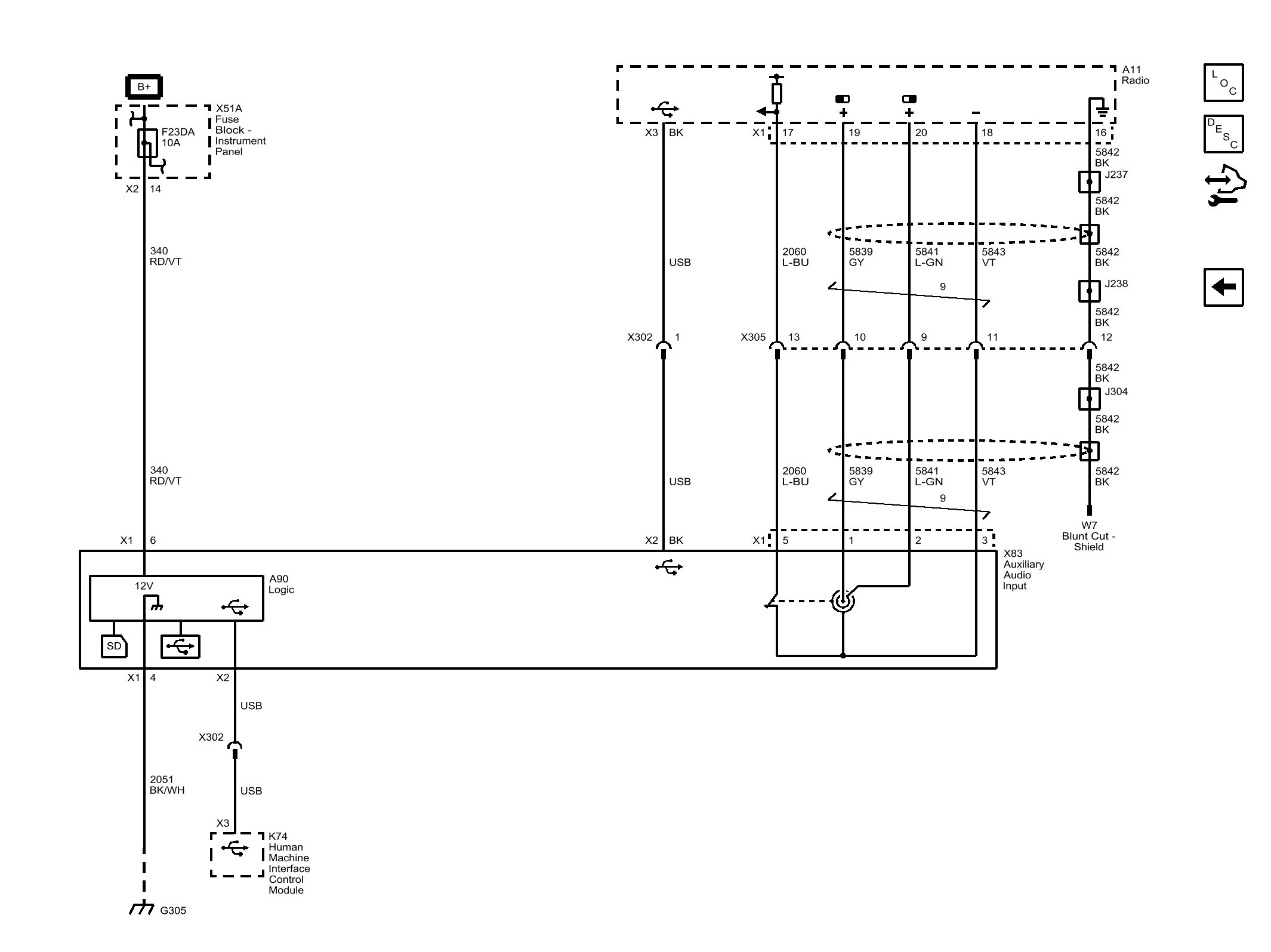

Home >> GMC >> 2017 >> Canyon SL >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Entertainment Systems >> Cellular System, Entertainment System, And Navigation System >> Schematic Wiring Diagrams >> Radio/Navigation System Wiring Schematics (IOB, IO5, IO6) >> Auxiliary Inputs (IOB with N8D)
