Installation Procedure

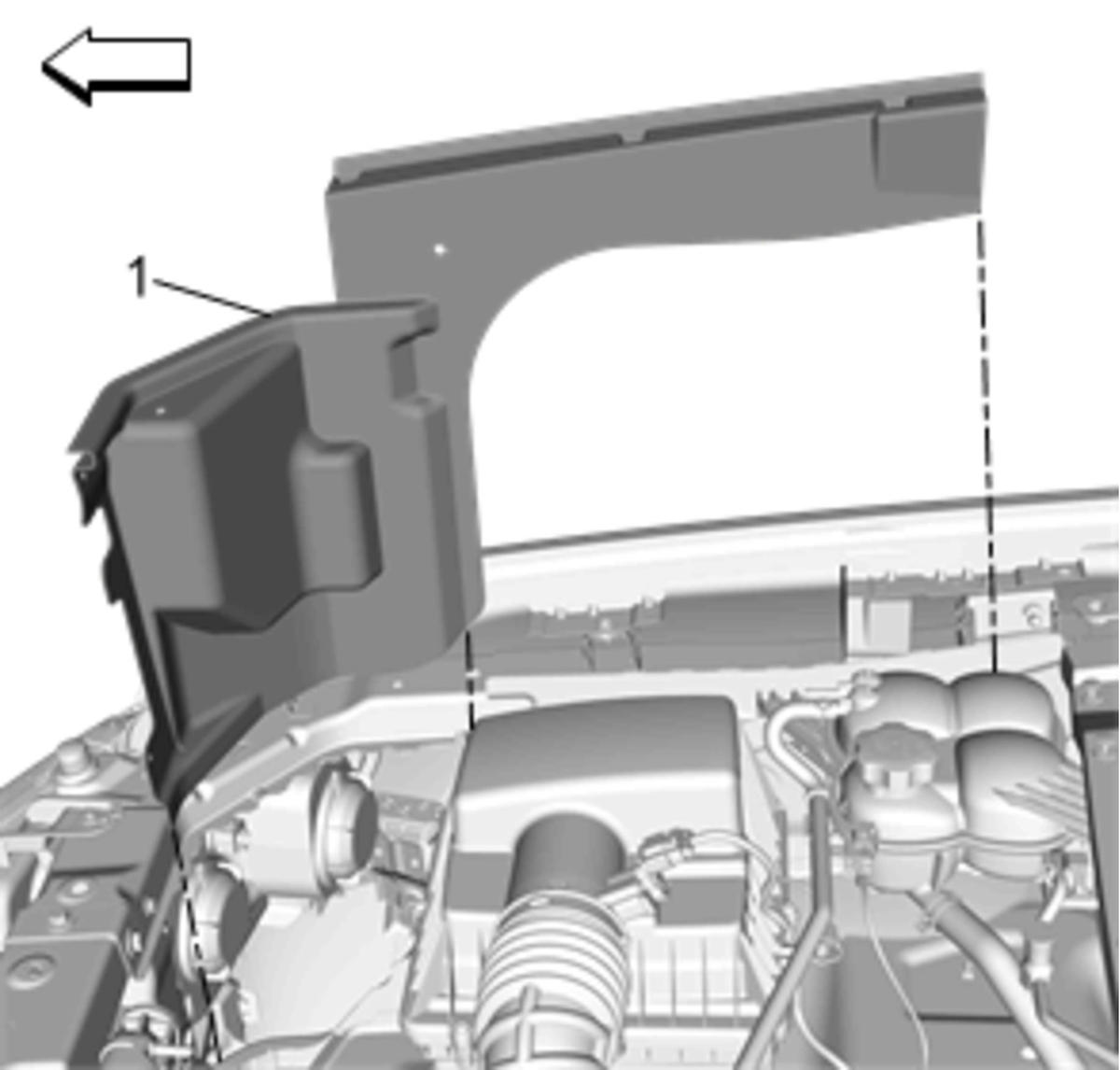

    Fig 1: Intake Air Splash Shield
    GM4140131Courtesy of GENERAL MOTORS COMPANY
  1. Install Intake Air Splash Shield (1)

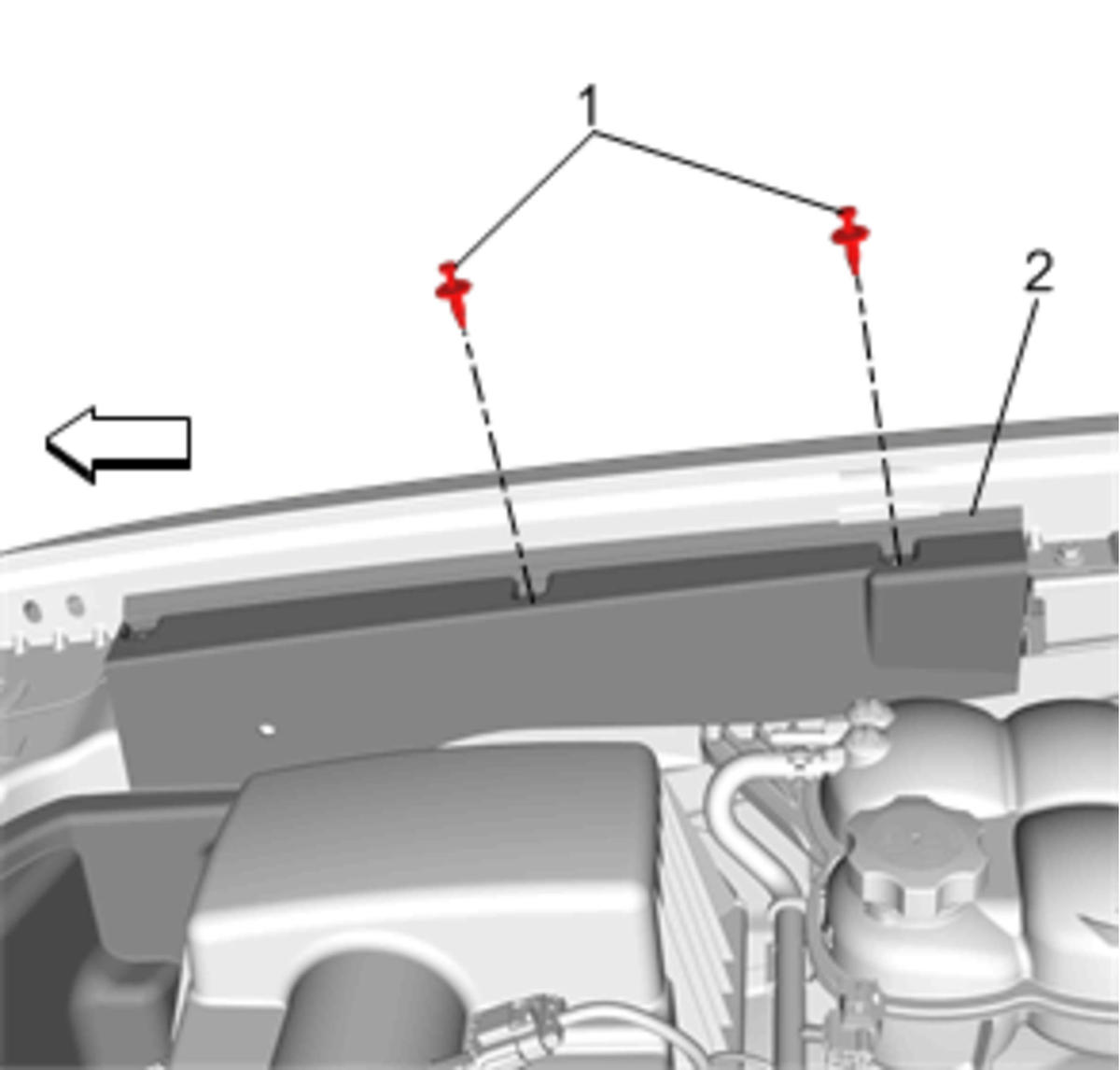

    2. Fig 2: Intake Air Splash Shield And Retainers
    GM4140075Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install Intake Air Splash Shield Retainers (1) (Qty: 2) @ Intake Air Splash Shield (2)

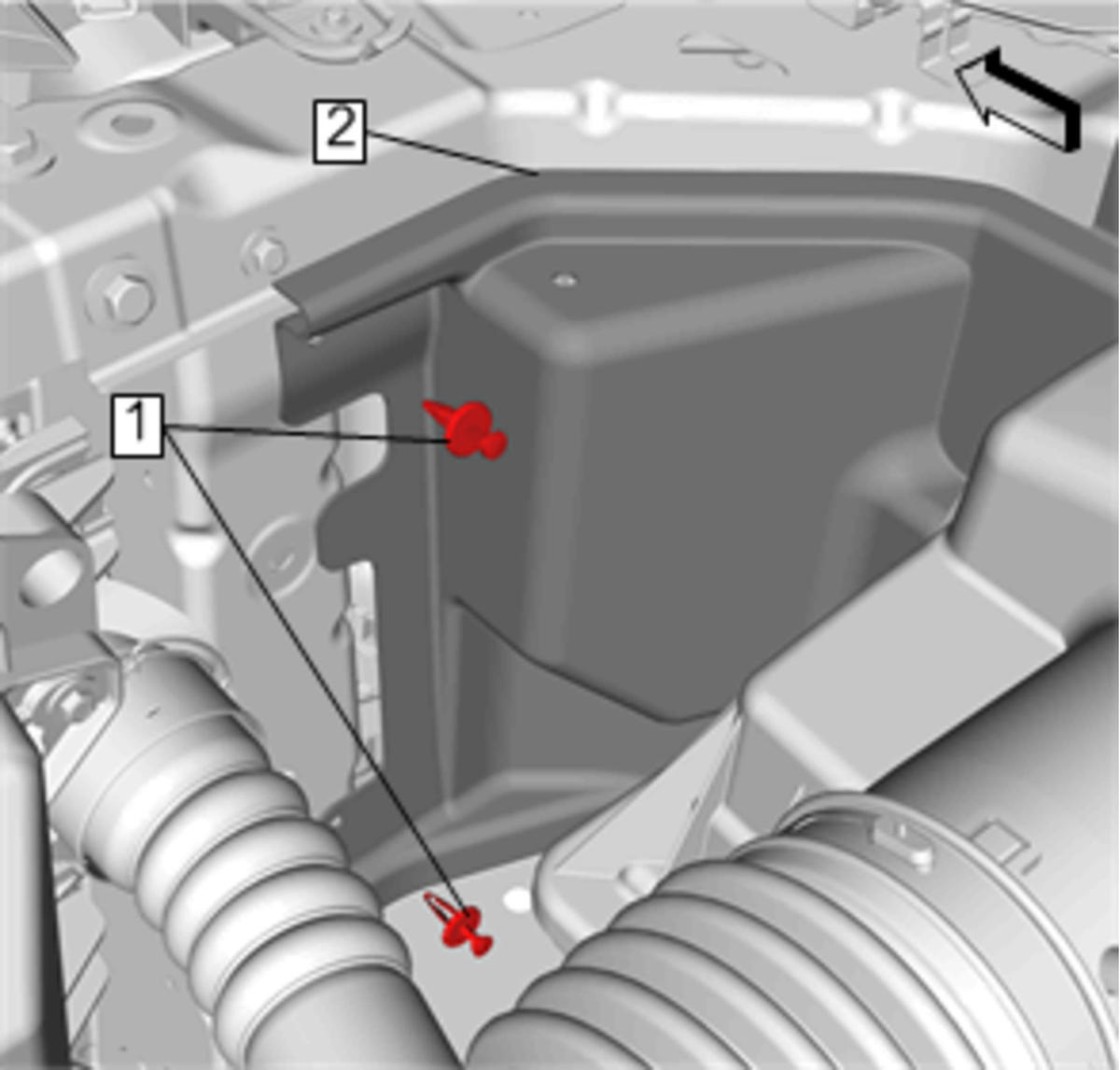

    3. Fig 3: Intake Air Splash Shield And Retainers
    GM4140043Courtesy of GENERAL MOTORS COMPANY
  3. Install Intake Air Splash Shield Retainers (1) (Qty: 2) @ Intake Air Splash Shield (2)
  4. Install Intake Air Baffle. Refer to Intake Air Baffle Replacement
  5. Reposition and Clip Radiator Vent Outlet Hose. Refer to Radiator Vent Outlet Hose Replacement (LCV LGZ)
