Installation Procedure

  1. Support the fuel tank with a suitable jack.

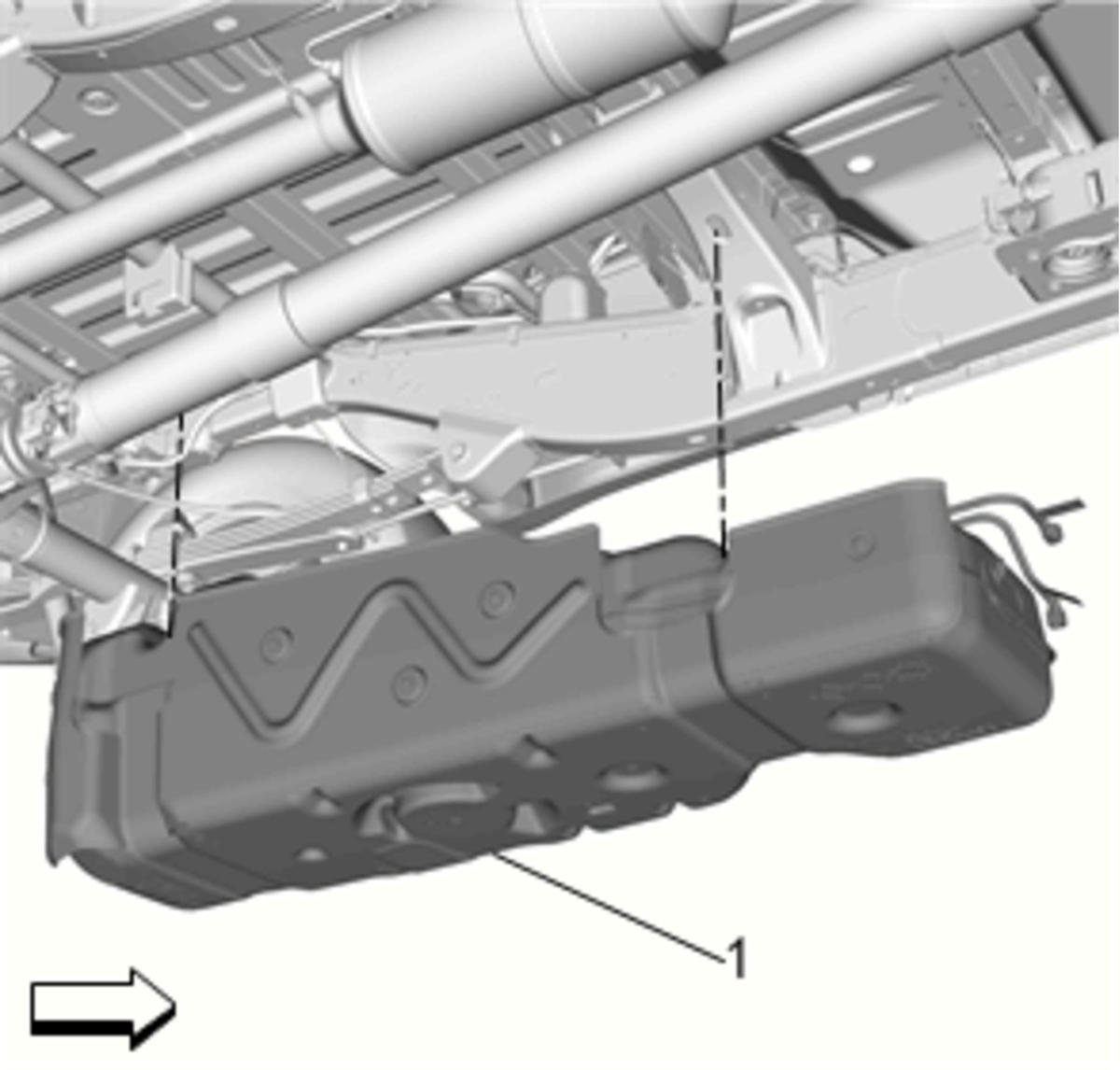

    2. Fig 1: Fuel Tank
    GM4144566Courtesy of GENERAL MOTORS COMPANY
  2. Position and raise the fuel tank (1).
  3. Connect the electrical connector.
  4. Install Fuel Tank (1)

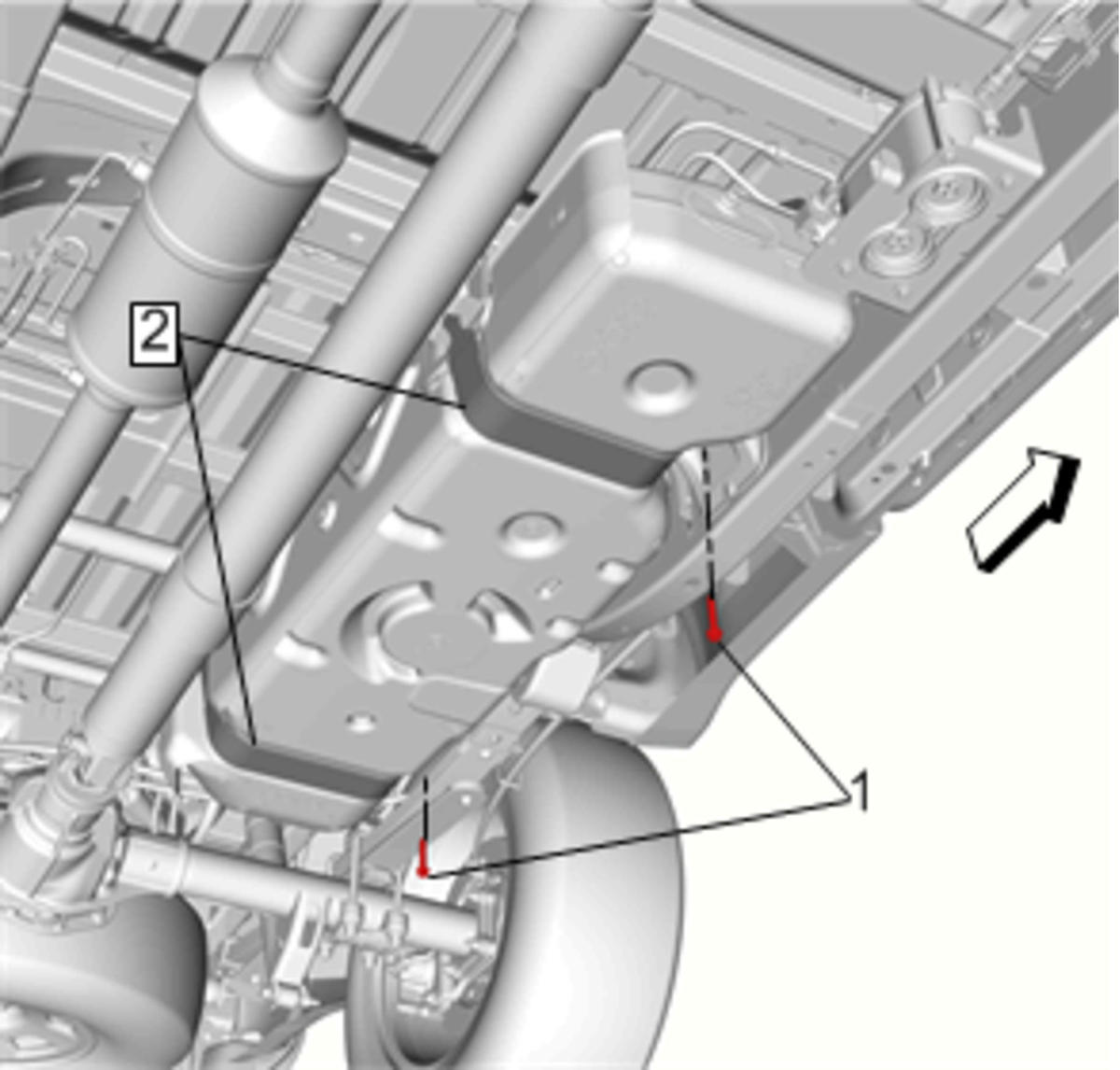

    5. Fig 2: Fuel Tank Strap Bolt And Fuel Tank Strap
    GM4144560Courtesy of GENERAL MOTORS COMPANY
  5. Install Fuel Tank Straps (2) (Qty: 2)
    6. CAUTION:

    Refer to Fastener Caution .

  6. Install and tighten Fuel Tank Strap Bolts (1) (Qty: 2) to 45 N.m (33 lb ft)

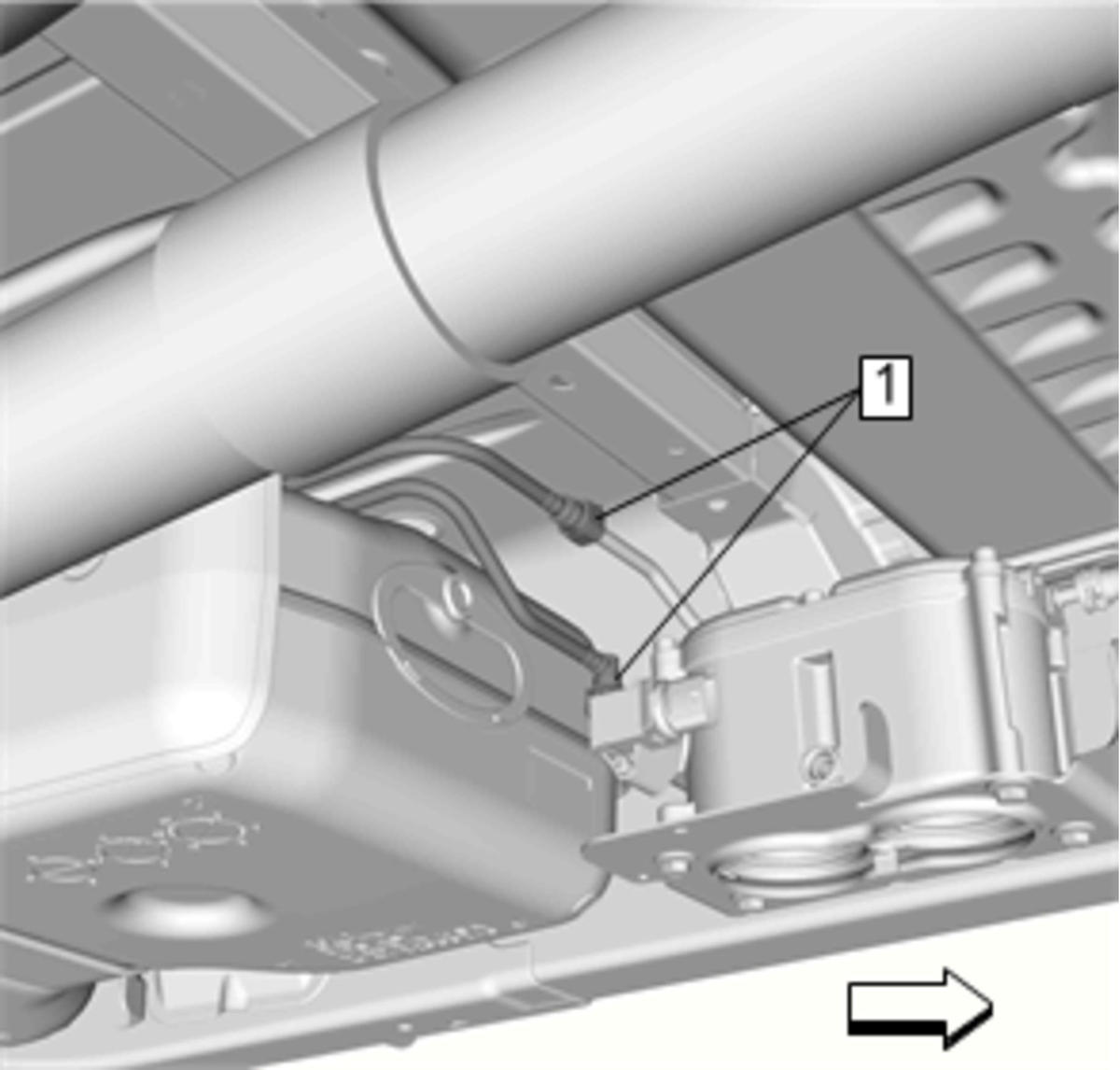

    7. Fig 3: Fuel Feed And Return Pipe
    GM4144543Courtesy of GENERAL MOTORS COMPANY
  7. Connect Fuel Feed and Return Pipe (1). Refer to Plastic Collar Quick Connect Fitting Service

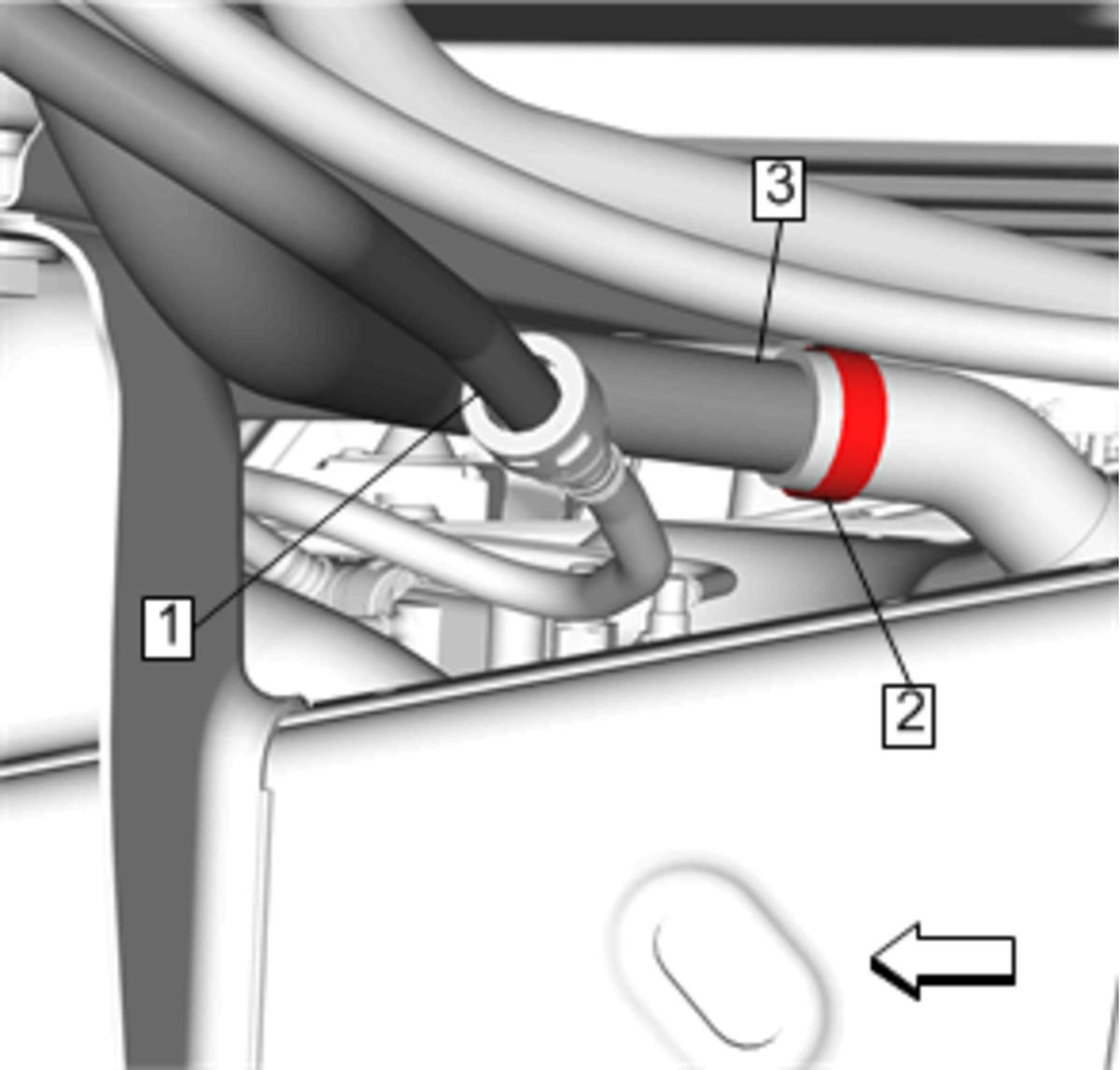

    8. Fig 4: Fuel Tank Filler Vent Pipe, Filler Pipe And Clamp
    GM4144492Courtesy of GENERAL MOTORS COMPANY
  8. Install Fuel Tank Filler Pipe (3)
  9. Install and tighten Fuel Tank Filler Pipe Clamp (2) to 3.5 N.m (31 lb in)
  10. Connect Fuel Tank Filler Vent Pipe (1). Refer to Plastic Collar Quick Connect Fitting Service
  11. Replace the fuel filter. Refer to Fuel Filter Replacement
  12. Lower the vehicle.
  13. Refill the fuel tank.
  14. Inspect for fuel leaks.
