Fuel Tank Fuel Pump Module Replacement

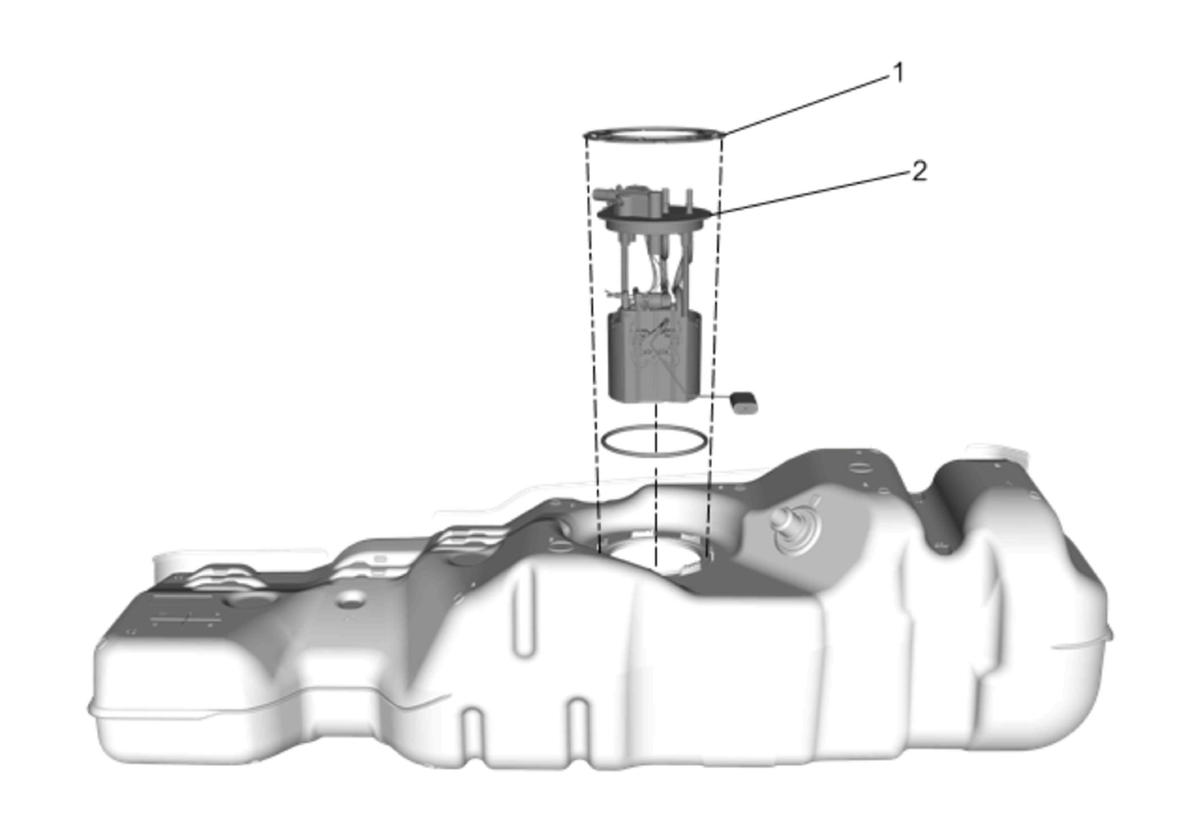

Fig 1: Fuel Tank Fuel Pump Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Remove Fuel Tank. Refer to Fuel Tank Replacement Disconnect the fuel feed, return, and vent pipes. Refer to Plastic Collar Quick Connect Fitting Service . Disconnect the electrical connector. Replace the fuel filter. Refer to Fuel Filter Replacement
1	Fuel Sender Retainer CAUTION: Refer to Fastener Caution . Special Tools J-45722 Fuel Sender Lock Ring Wrench Equivalent regional tools: Special Tools (Diagnostic Tools)Special Tools (Mechanical Tools)
2	Fuel Tank Fuel Pump Module Procedure Replace the O-ring seal.

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedures

Remove Fuel Tank. Refer to Fuel Tank Replacement
Disconnect the fuel feed, return, and vent pipes. Refer to Plastic Collar Quick Connect Fitting Service .
Disconnect the electrical connector.
Replace the fuel filter. Refer to Fuel Filter Replacement

Fuel Sender Retainer

CAUTION:

Special Tools
J-45722 Fuel Sender Lock Ring Wrench
Equivalent regional tools: Special Tools (Diagnostic Tools)Special Tools (Mechanical Tools)

Fuel Tank Fuel Pump Module
Procedure
Replace the O-ring seal.
