Fuel Level Sensor Replacement

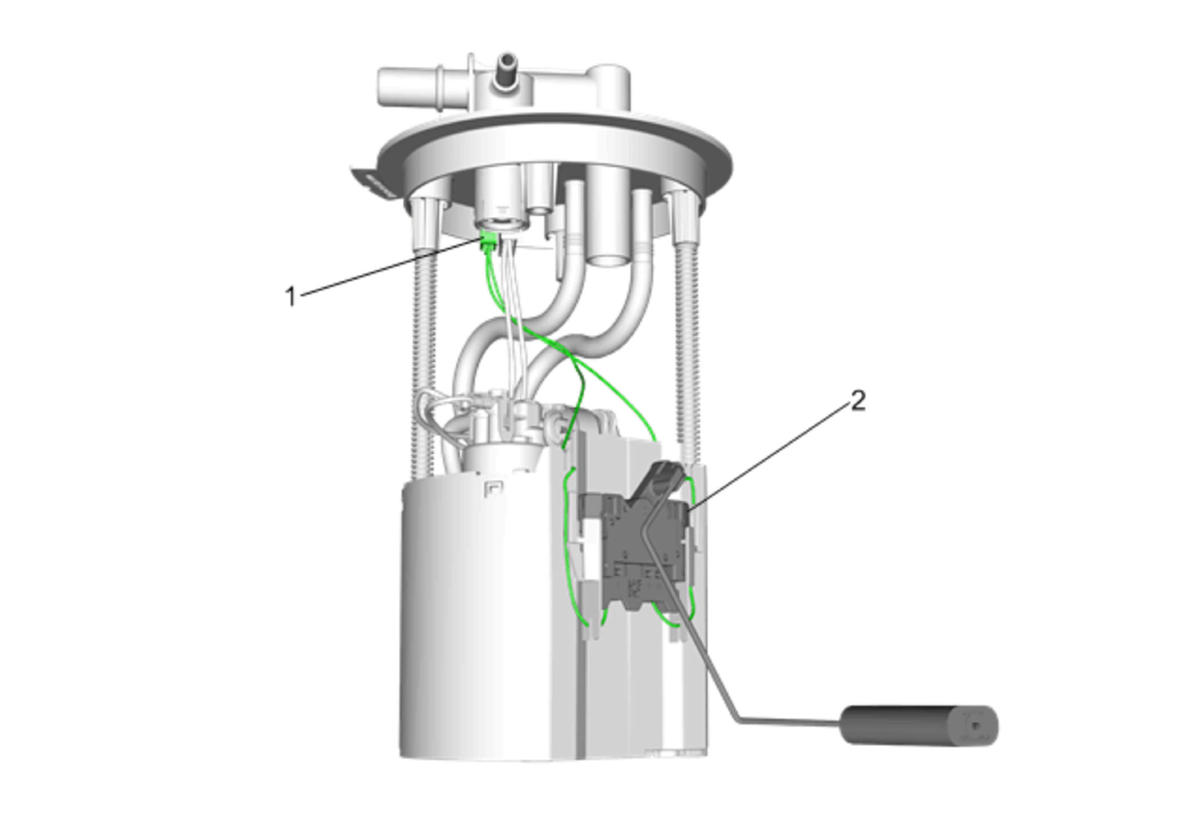

Fig 1: Fuel Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Fuel Tank Fuel Pump Module. Refer to Fuel Tank Fuel Pump Module Replacement Replace the fuel filter. Refer to Fuel Filter Replacement
1	Fuel Level Sensor Electrical Connector
2	Fuel Level Sensor Procedure Push the plastic tabs inward and simultaneously pull upward.

Callout

Component Name

Preliminary Procedure

Remove Fuel Tank Fuel Pump Module. Refer to Fuel Tank Fuel Pump Module Replacement
Replace the fuel filter. Refer to Fuel Filter Replacement

Fuel Level Sensor Electrical Connector

Fuel Level Sensor
Procedure
Push the plastic tabs inward and simultaneously pull upward.
