Installation Procedure

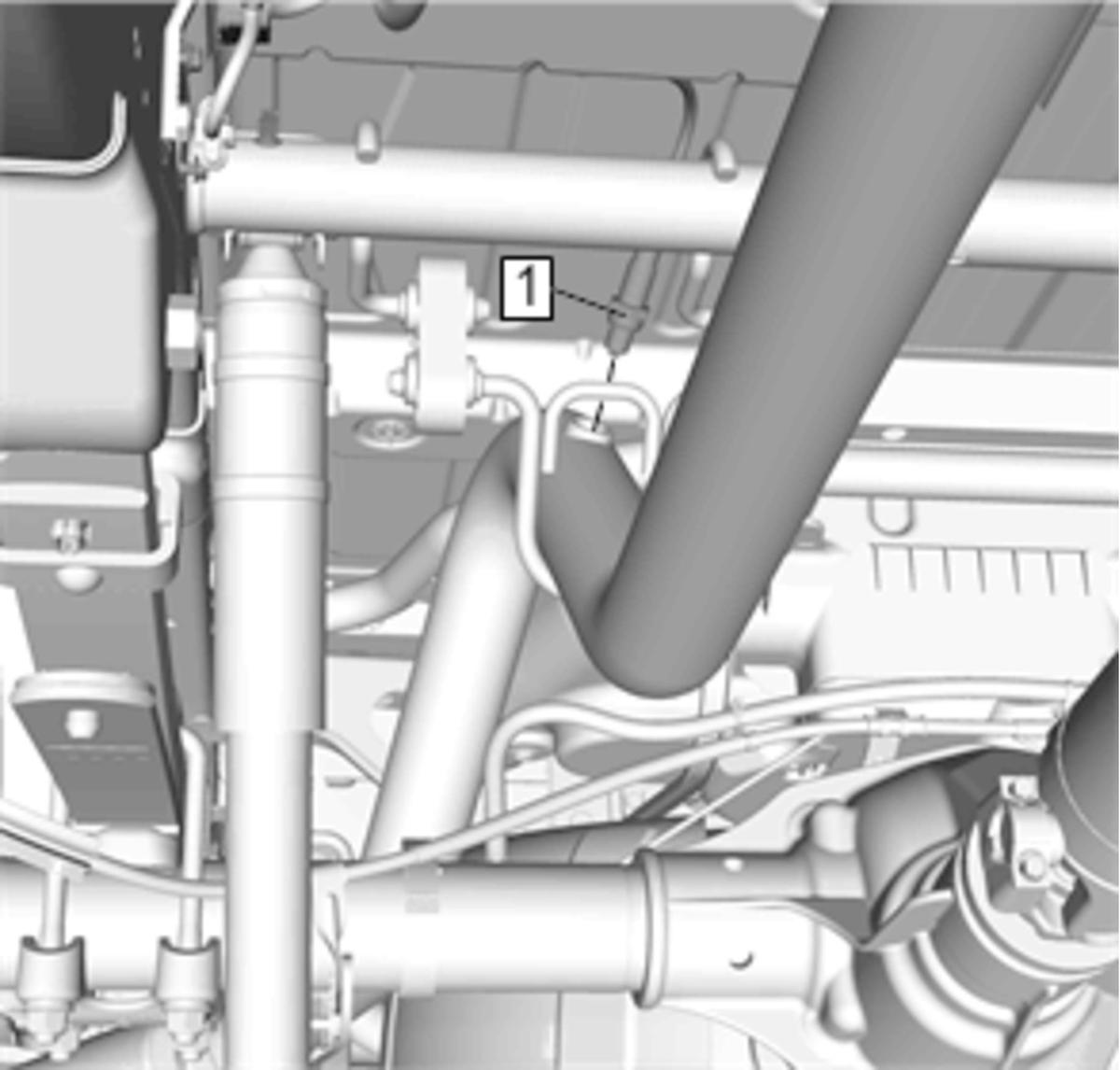

    Fig 1: Exhaust Particulate Sensor
    GM4177072Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

  1. Install and tighten Exhaust Particulate Sensor (1) to 50 N.m (37 lb ft)

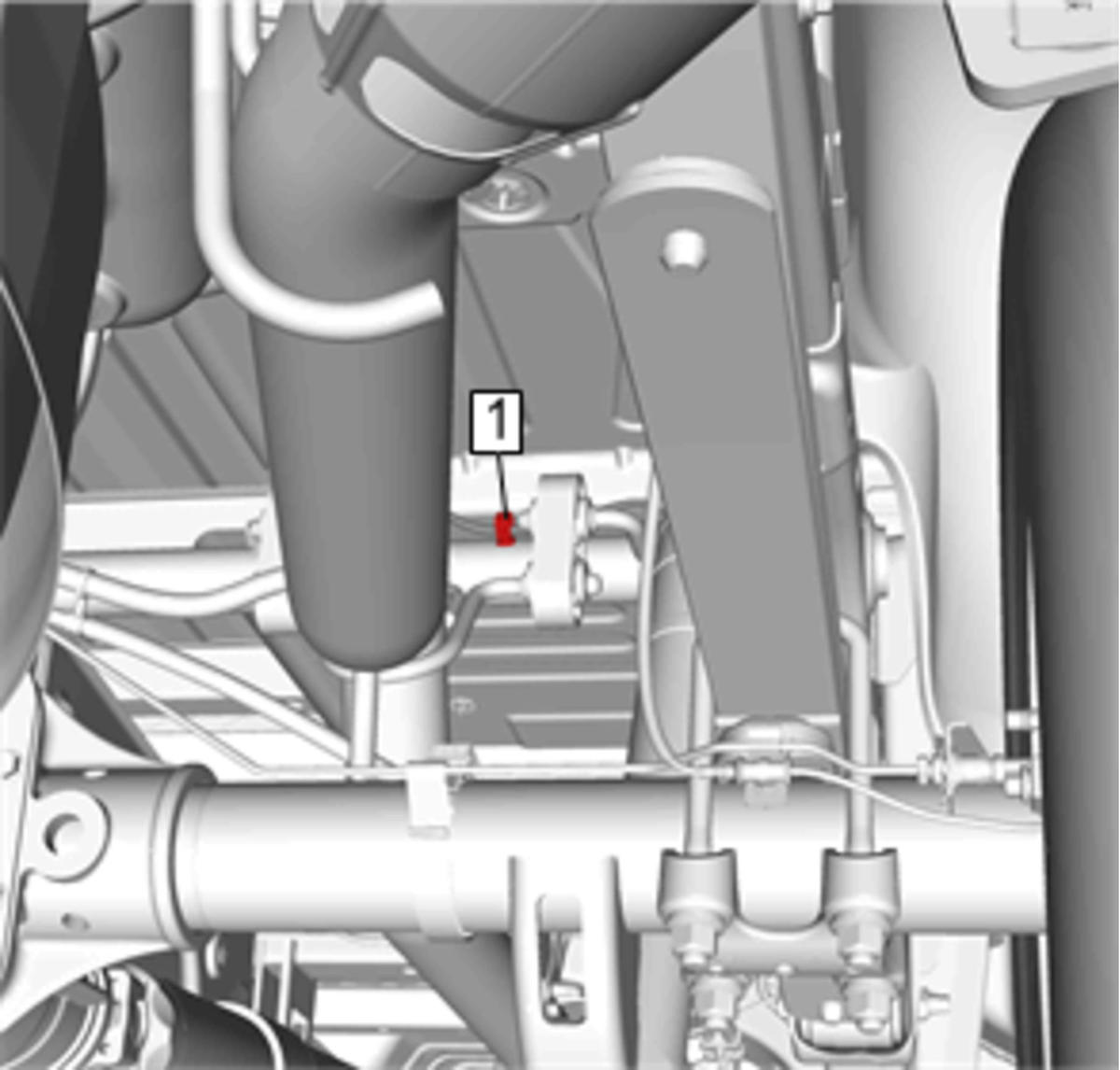

    2. Fig 2: Retainer
    GM4177054Courtesy of GENERAL MOTORS COMPANY
  2. Install Retainer (1)

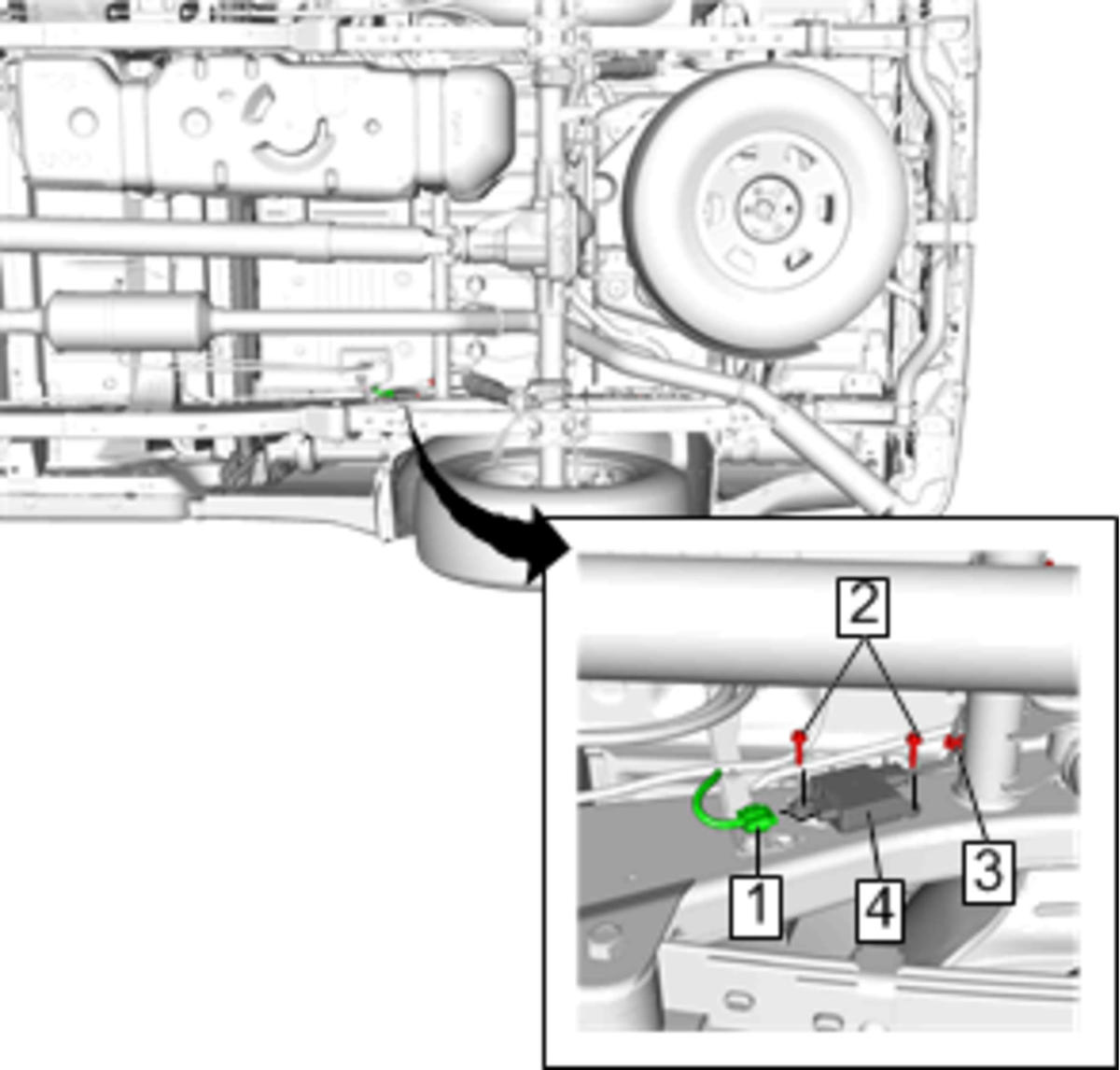

    3. Fig 3: Exhaust Particulate Sensor, Electrical Connector, Fasteners And Retainer
    GM4177030Courtesy of GENERAL MOTORS COMPANY
  3. Install Retainer (3)
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install and tighten Exhaust Particulate Sensor Fasteners (2) (Qty: 2) to 9 N.m (80 lb in)
  5. Connect Electrical Connector (1) @ Exhaust Particulate Sensor (4)
  6. Lower the vehicle. Refer to Lifting and Jacking the Vehicle
  7. Connect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
