Installation Procedure

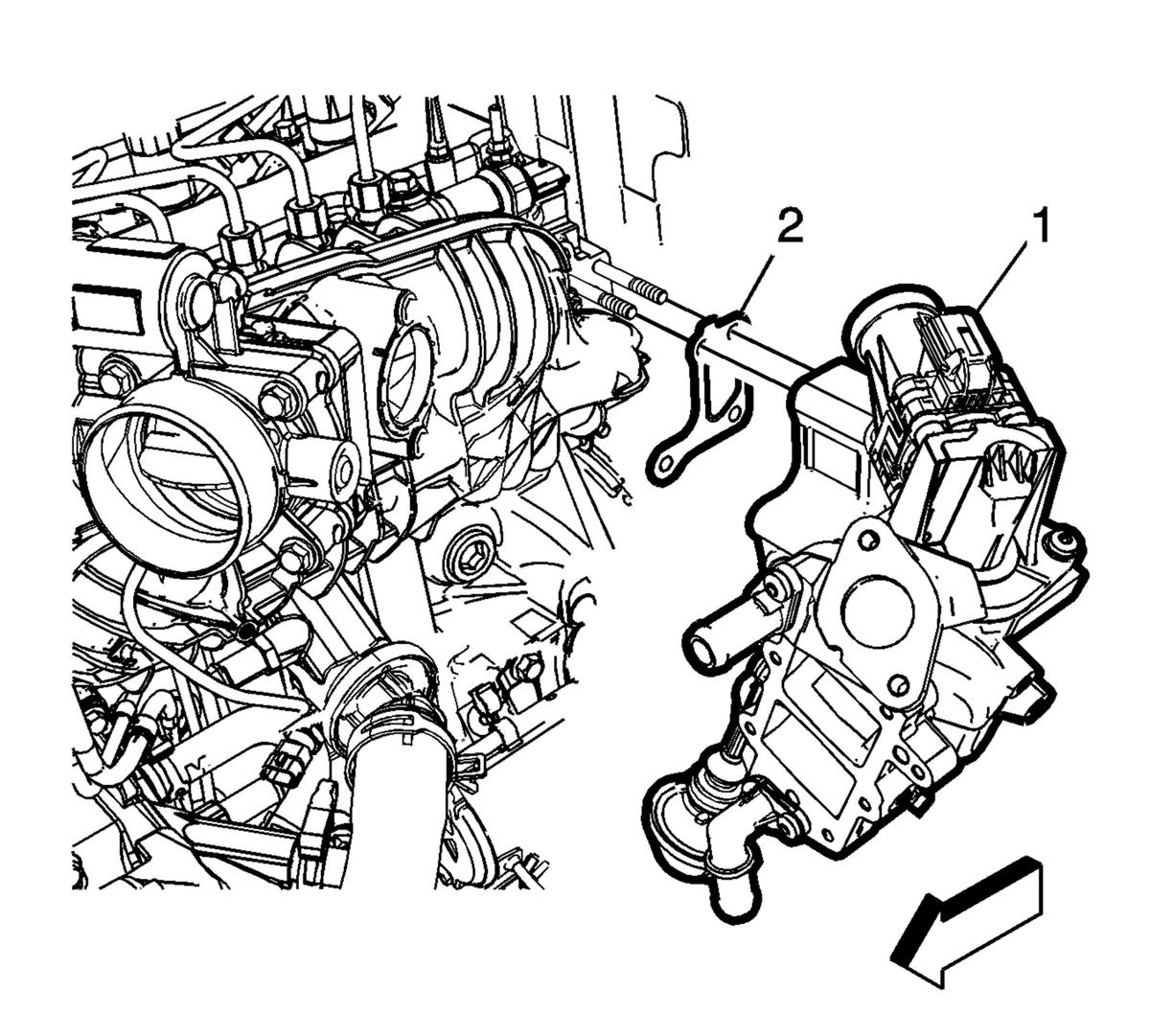

    Fig 1: EGR Valve Housing Assembly And Gasket
    GM3351246Courtesy of GENERAL MOTORS COMPANY
  1. Position the EGR valve housing assembly gasket (2) and EGR valve housing assembly (1) in place and hand start the fasteners.

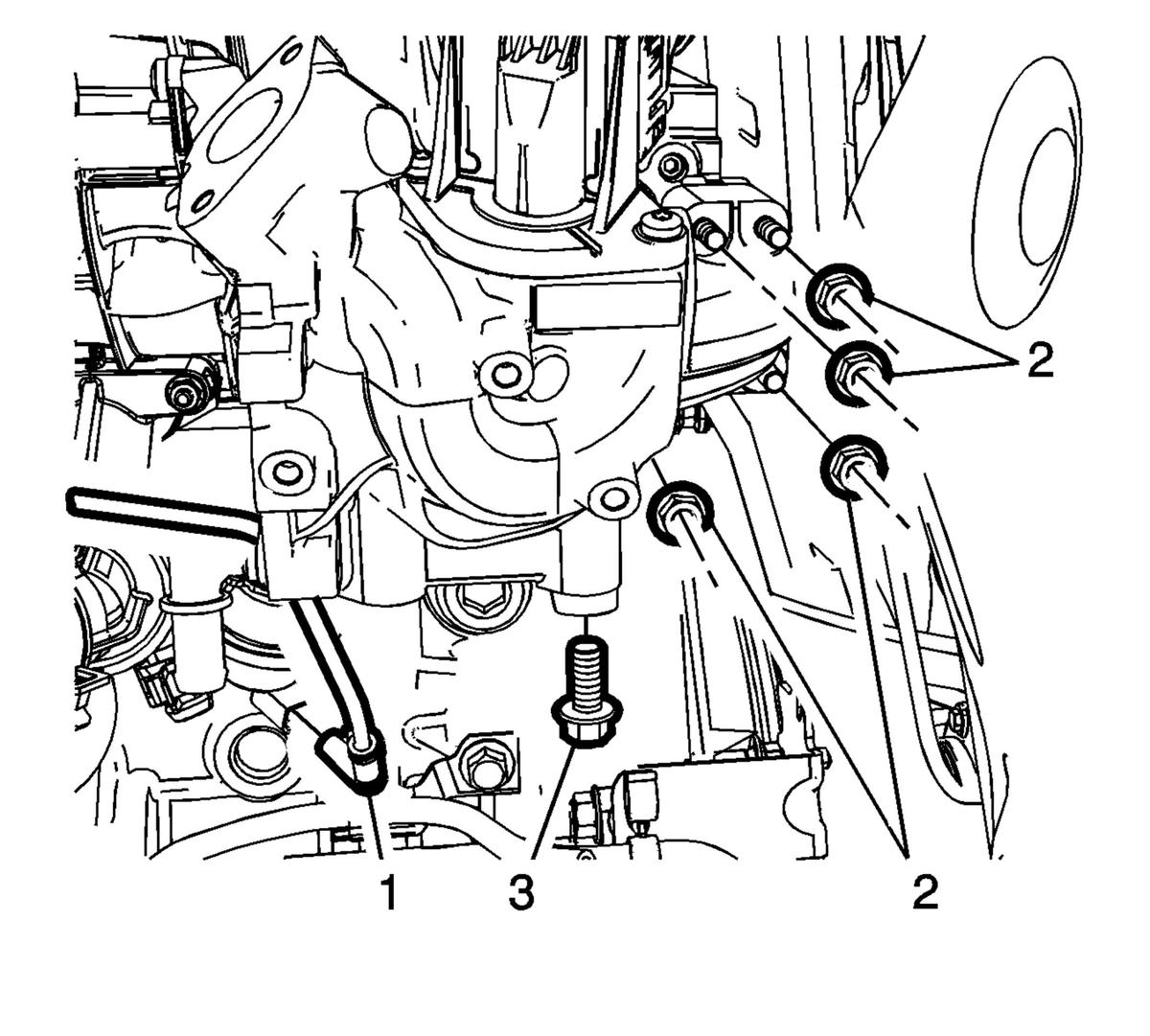

    2. Fig 2: EGR Bypass Valve Vacuum Tube, Valve Adapter Nuts And Manifold Brace Bolt
    GM3351194Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install and tighten Exhaust Gas Recirculation Valve Adapter Nuts (2) (Qty: 4) to 25 N.m (18 lb ft)
  3. Install and tighten Exhaust Gas Recirculation Manifold Brace Bolt (3) to 58 N.m (43 lb ft)
  4. Connect the EGR bypass vacuum tube (1).
  5. Connect the exhaust gas recirculation valve temperature sensor electrical connector. Refer to Exhaust Gas Recirculation Valve Temperature Sensor Replacement - Position 1
  6. Connect the EGR valve electrical connector.

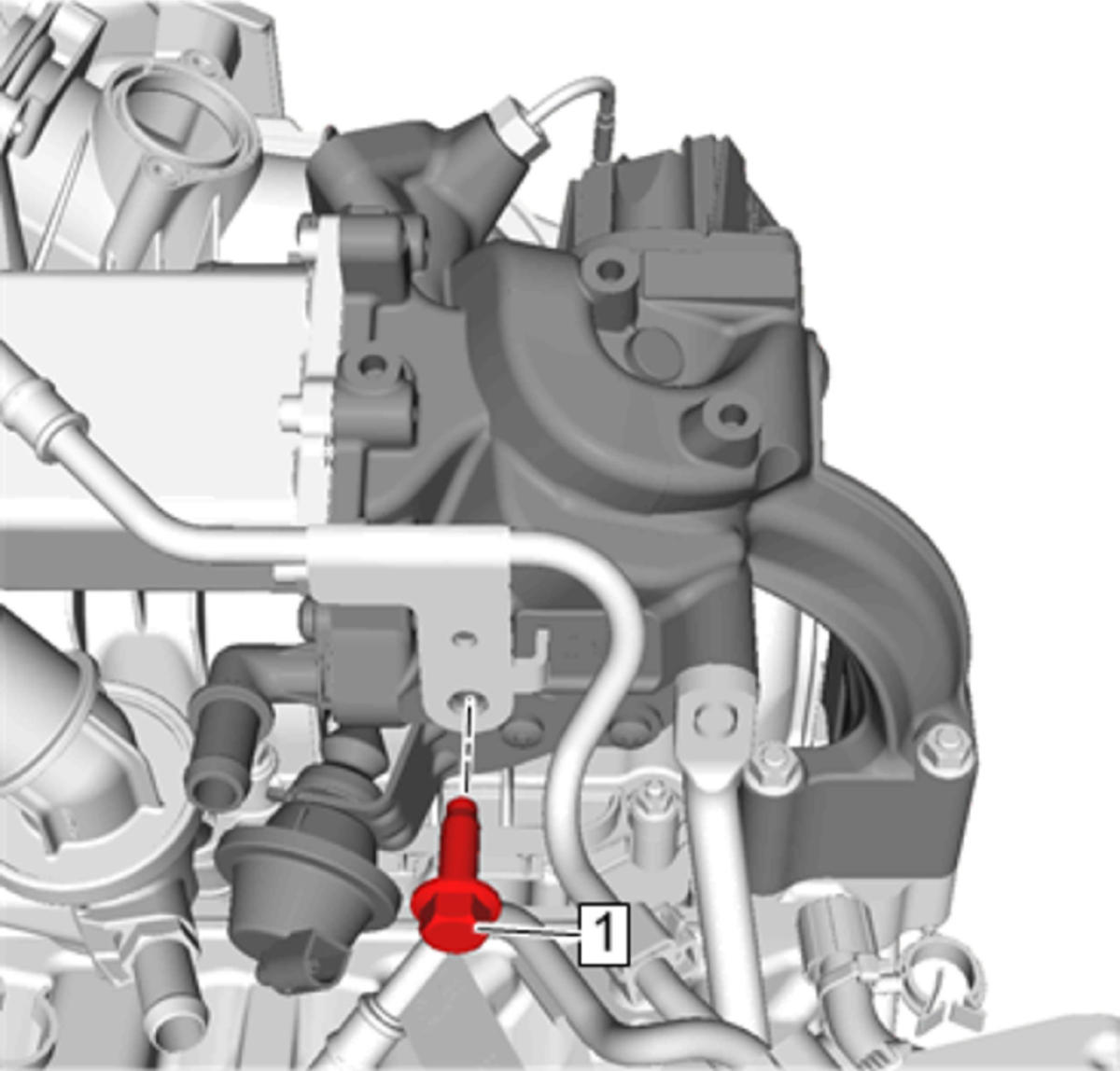

    7. Fig 3: Fuel Return Hose Bracket Bolt
    GM4325173Courtesy of GENERAL MOTORS COMPANY
  7. Install and tighten Fuel Return Hose Bracket Bolt (1) to 22 N.m (16 lb ft)
  8. Install Front Wheelhouse Liner - Left side. Refer to Front Wheelhouse Liner Replacement (without ZR2)Front Wheelhouse Liner Replacement (with ZR2)

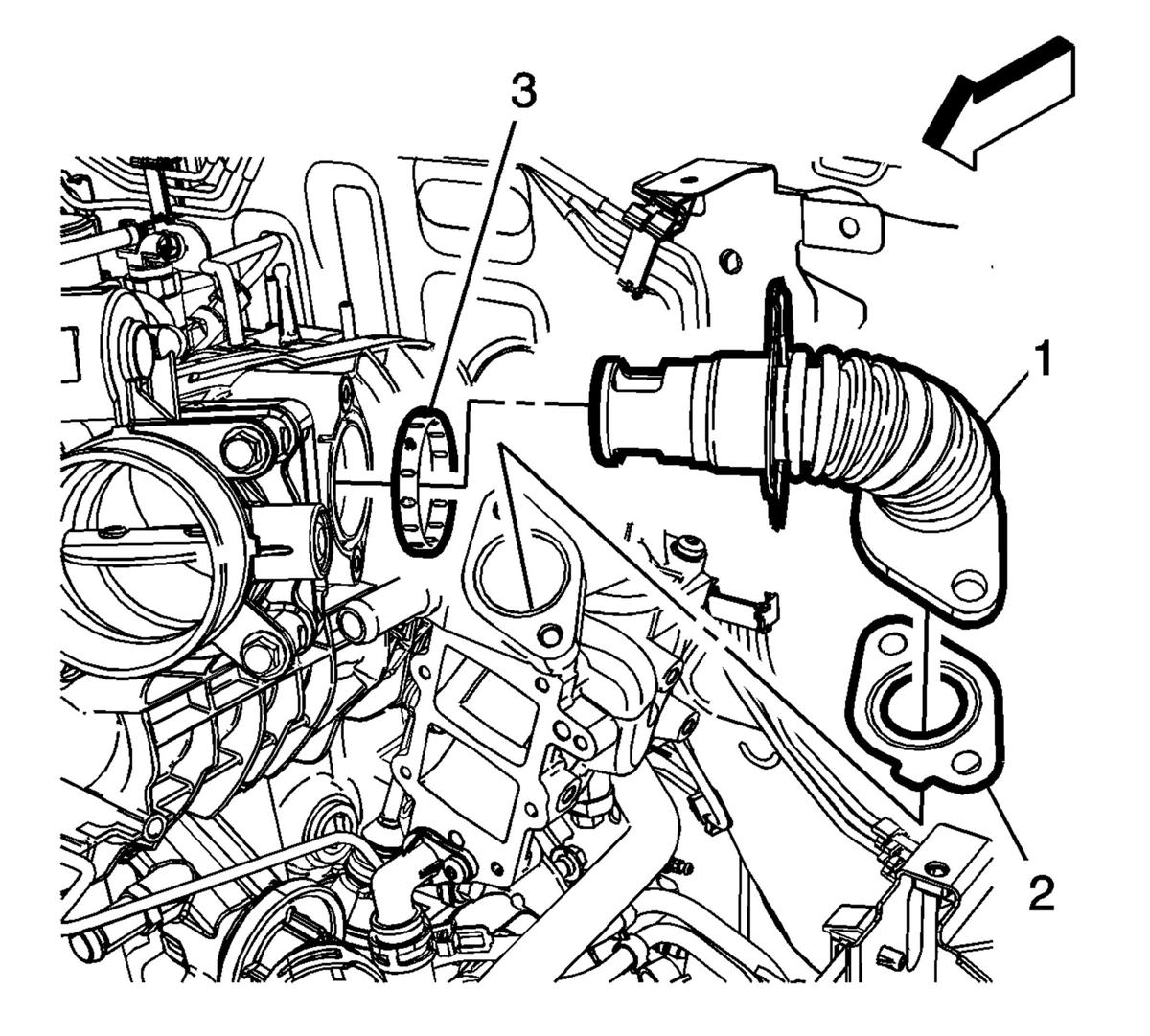

    9. Fig 4: EGR Pipe, Gasket And Seal
    GM3351379Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Install NEW seal and gasket to ensure proper sealing.

  9. Position the EGR pipe seal (3), gasket (2) and pipe in place then hand start the fasteners.

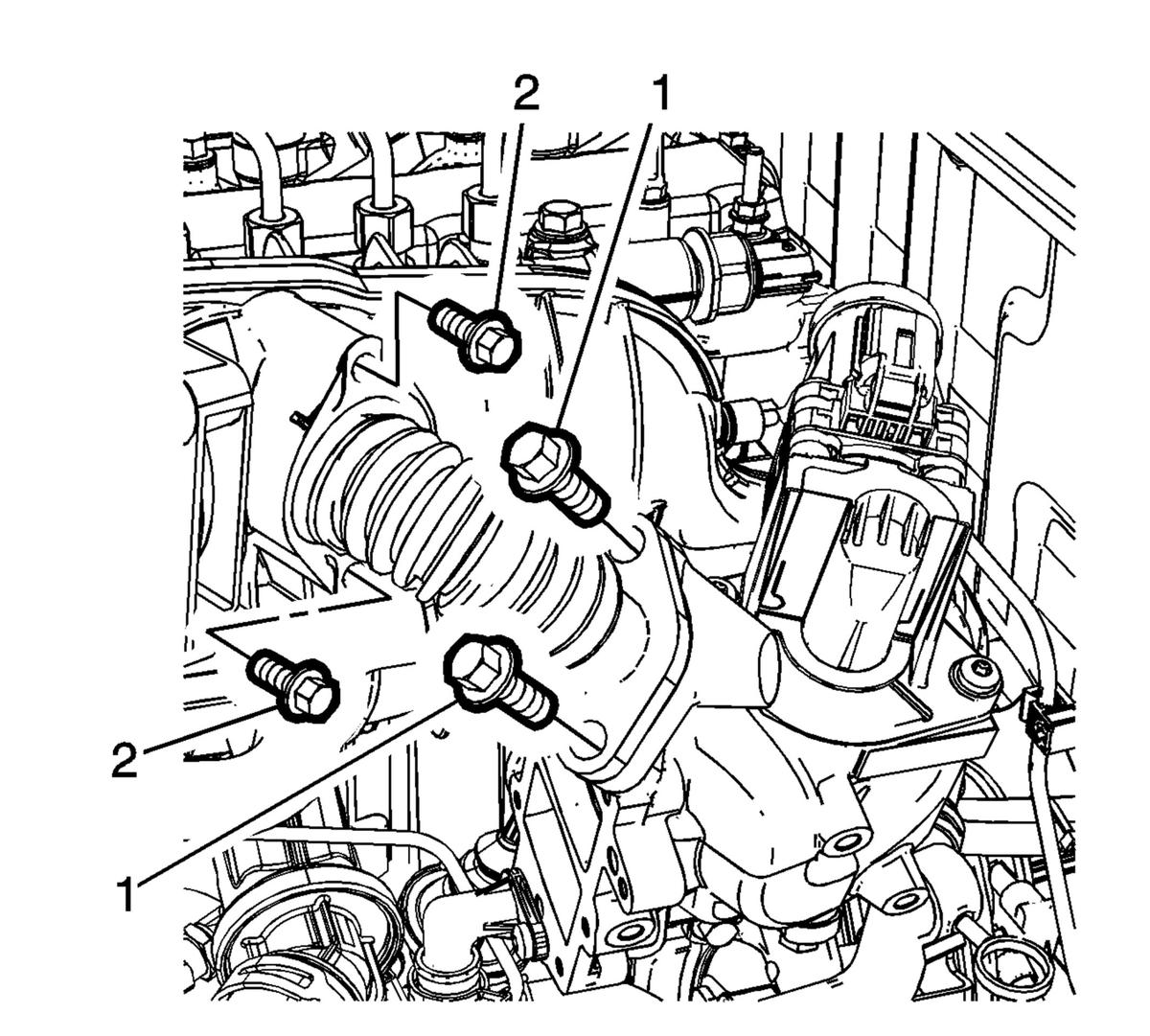

    10. Fig 5: Exhaust Gas Recirculation (EGR) Pipe Fasteners
    GM3351038Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  10. Tighten the EGR pipe fasteners (1) to 25 N.m (18 lb ft)
  11. Tighten the EGR pipe fasteners (2) to 11 N.m (8 lb ft)
  12. Install Oil Level Indicator Tube. Refer to Oil Level Indicator Tube Replacement

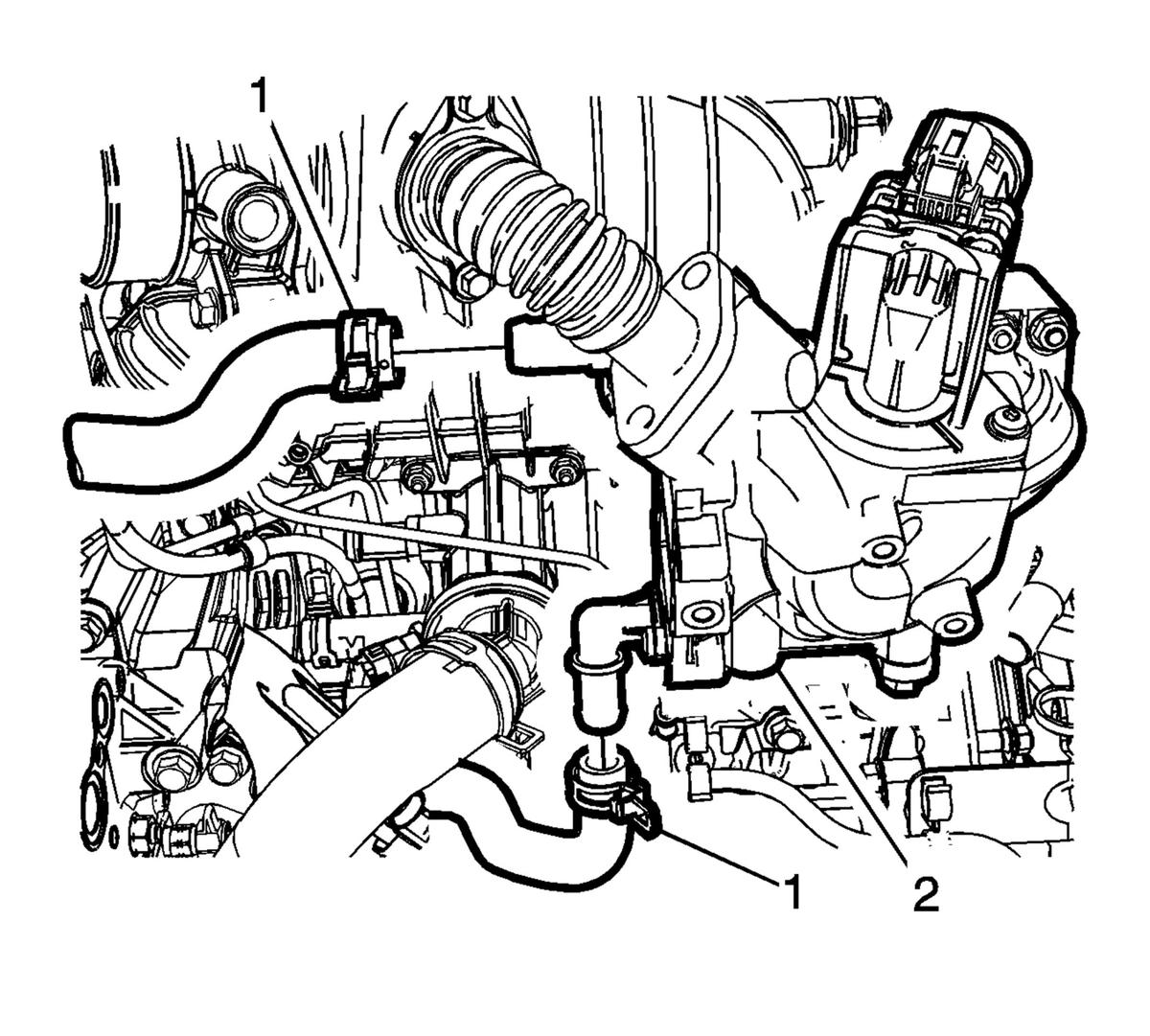

    13. Fig 6: Cooler Hoses And EGR Valve Housing Assembly
    GM3351069Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Install NEW clamps to ensure proper hose sealing.

  13. Connect the cooler hoses (1) to the EGR valve housing (2).
  14. Install Exhaust Gas Recirculation Cooler. Refer to Exhaust Gas Recirculation Cooler Replacement
  15. Connect Power Brake Booster Vacuum Hose @ Power Brake Booster. Refer to Power Brake Booster Vacuum Hose Replacement (LWN)
  16. Install Plenum Front Panel. Refer to Plenum Front Panel Replacement
  17. Install Charge Air Cooler Outlet Duct. Refer to Charge Air Cooler Outlet Duct Replacement
  18. Install Intake Manifold Cover Insulator. Refer to Intake Manifold Cover Insulator Replacement (Top of Engine)Intake Manifold Cover Insulator Replacement (Left Side)
