Air Cleaner Assembly Replacement

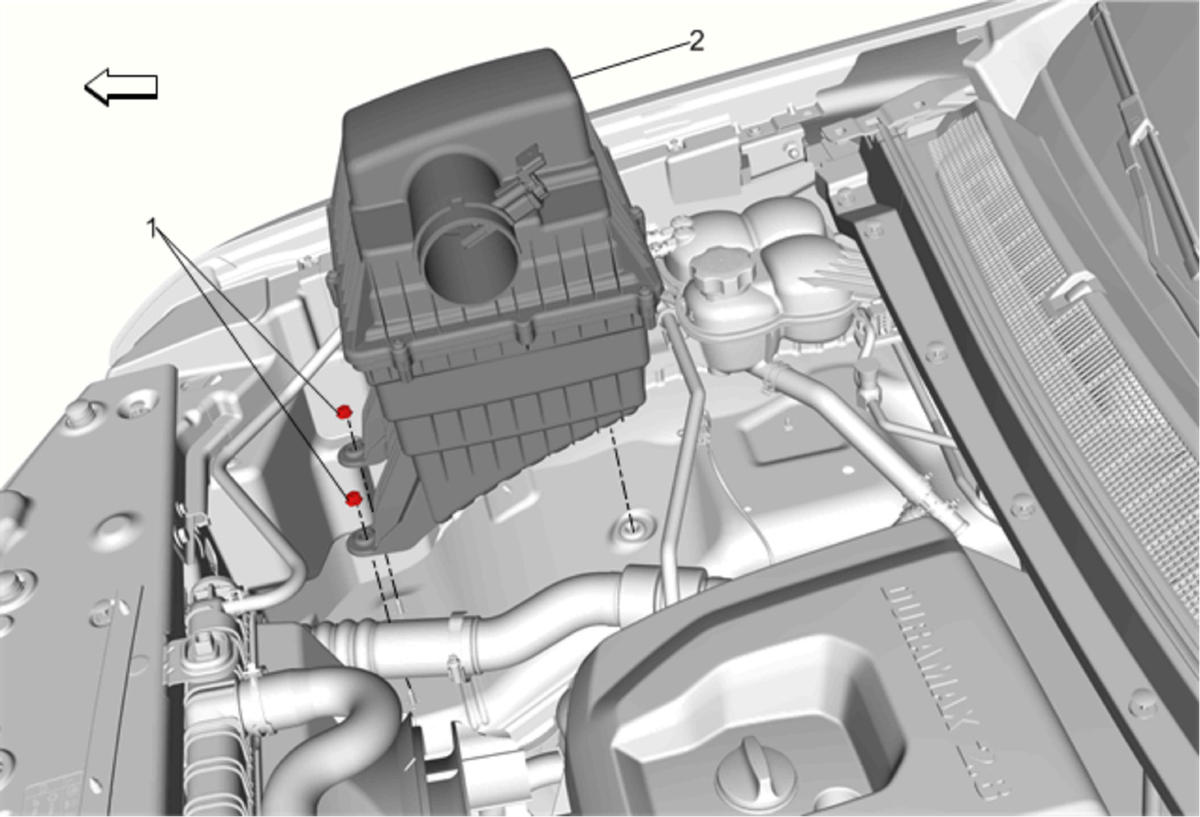

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement Disconnect the electrical connector.
1	Air Cleaner Assembly Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 12 N.m (9 lb ft)
2	Air Cleaner Assembly Procedure Pull up on the assembly to release lower retainer.

Callout

Component Name

Preliminary Procedures

Air Cleaner Assembly Fastener (Qty: 2)

CAUTION:

Tighten
12 N.m (9 lb ft)

Air Cleaner Assembly
Procedure
Pull up on the assembly to release lower retainer.
