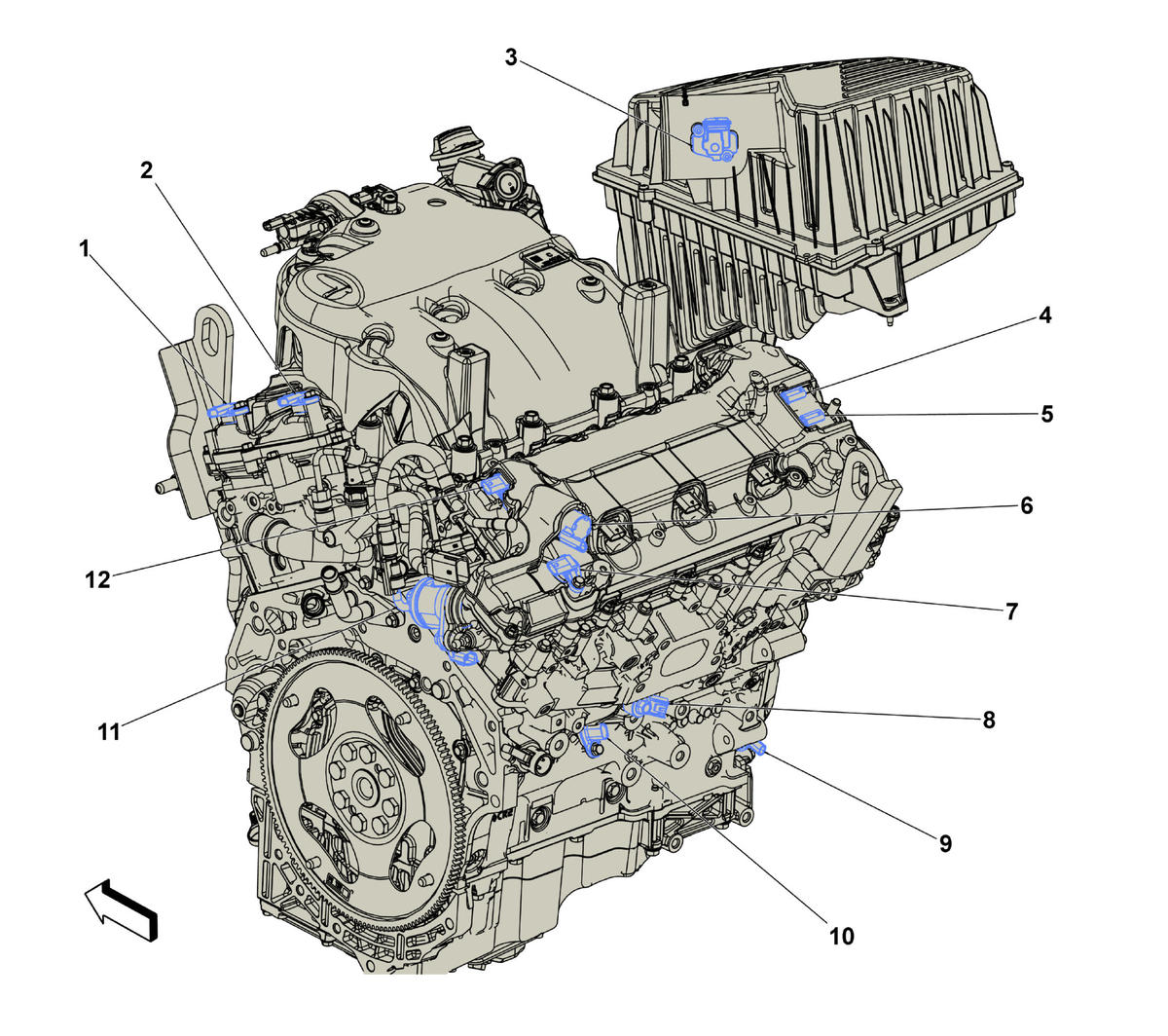

Engine Components - Left Rear (LGX)
Engine Components - Left Rear (LGX)
| Items |
|---|
| 1: B23C Camshaft Position Sensor - Bank 2 Exhaust (LGX) B23C Camshaft Position Sensor - Bank 2 Exhaust (LGX) |
| 2: B23D Camshaft Position Sensor - Bank 2 Intake (LGX) B23D Camshaft Position Sensor - Bank 2 Intake (LGX) |
| 3: B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 4: Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LGX) Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LGX) |
| 5: Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LGX) Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LGX) |
| 6: Q83A Valve Lifter Oil Solenoid Valve - Bank 1 (LGX) Q83A Valve Lifter Oil Solenoid Valve - Bank 1 (LGX) |
| 7: B23A Camshaft Position Sensor - Bank 1 Exhaust (LGX) B23A Camshaft Position Sensor - Bank 1 Exhaust (LGX) |
| 8: B68A Knock Sensor 1 B68A Knock Sensor 1 (LGX/LCV) |
| 9: Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve (LGX) |
| 10: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LGX) |
| 11: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LGX) |
| 12: B23B Camshaft Position Sensor - Bank 1 Intake (LGX) B23B Camshaft Position Sensor - Bank 1 Intake (LGX) |
