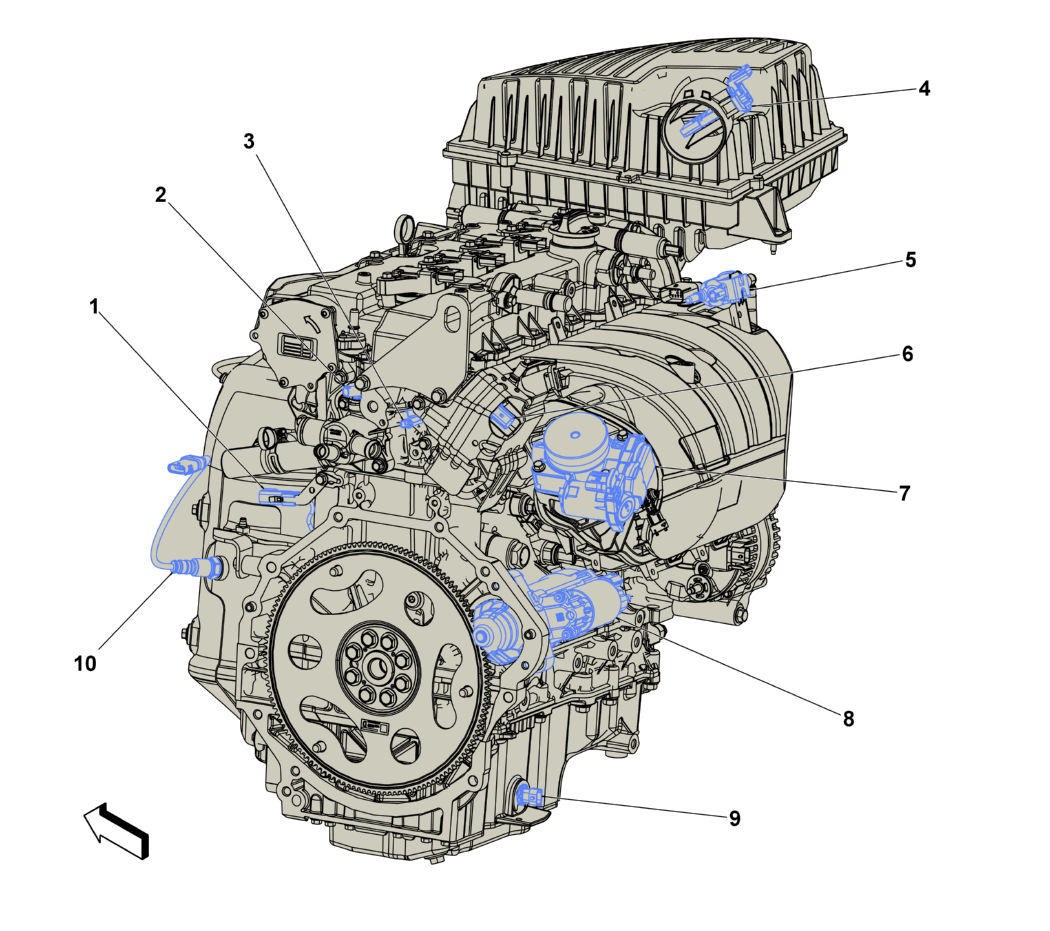

Engine Components - Left Rear (LCV)
Engine Components - Left Rear (LCV)
| Items |
|---|
| 1: Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve (LCV) |
| 2: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LCV) |
| 3: B23F Camshaft Position Sensor - Intake (LCV) B23F Camshaft Position Sensor - Intake (LCV) |
| 4: B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 5: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LCV) |
| 6: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LCV) |
| 7: Q38 Throttle Body Q38 Throttle Body |
| 8: M64 Starter Motor M64 Starter Motor X1 (LCV) |
| 9: B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LCV) |
| 10: B52B Heated Oxygen Sensor 2 (LCV) B52B Heated Oxygen Sensor 2 (LCV) |
