Serial Data Gateway Bracket Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

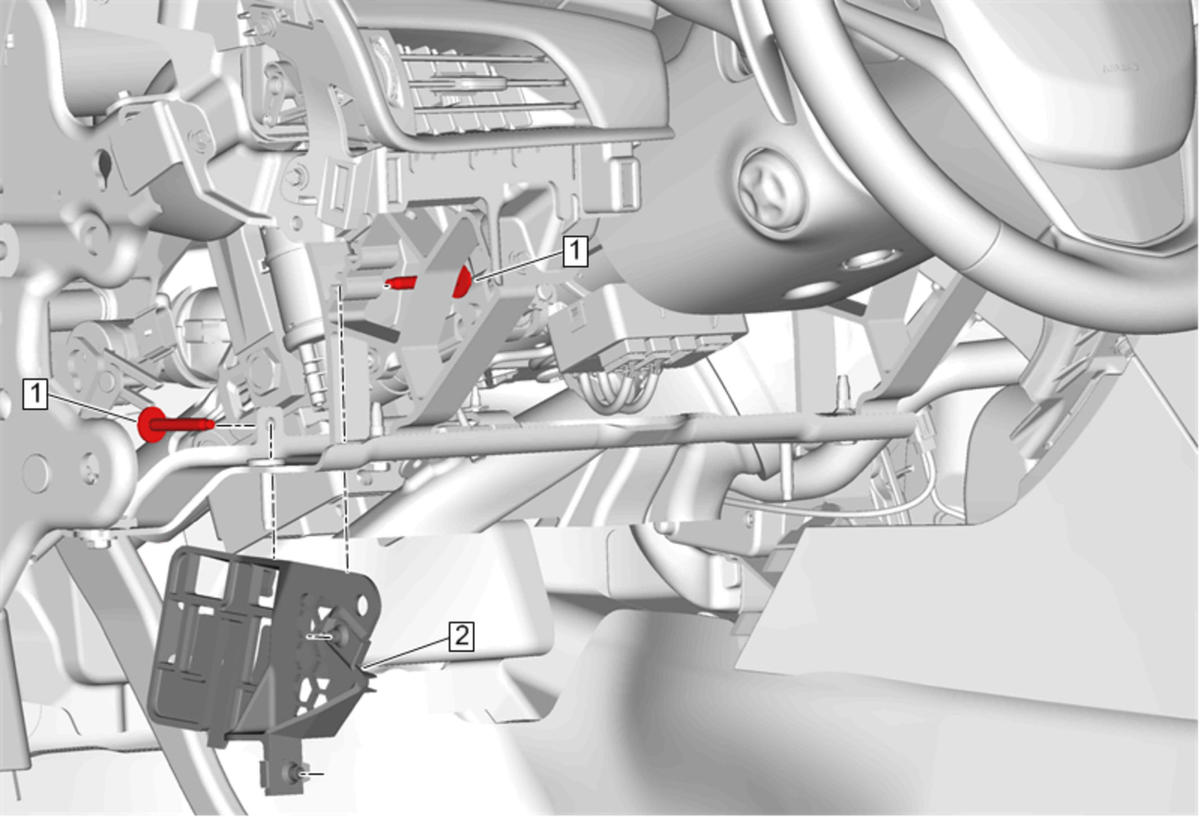

Fig 1: Serial Data Gateway Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Refer to Instrument Panel Knee Bolster Replacement Refer to Serial Data Gateway Module Replacement
1	Serial Data Gateway Module Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 9 N.m (80 lb in)
2	Serial Data Gateway Bracket

Callout

Component Name

Preliminary Procedures

Refer to Instrument Panel Knee Bolster Replacement
Refer to Serial Data Gateway Module Replacement

Serial Data Gateway Module Bracket Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution

Tighten
9 N.m (80 lb in)

Serial Data Gateway Bracket
