Steering Column Components
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

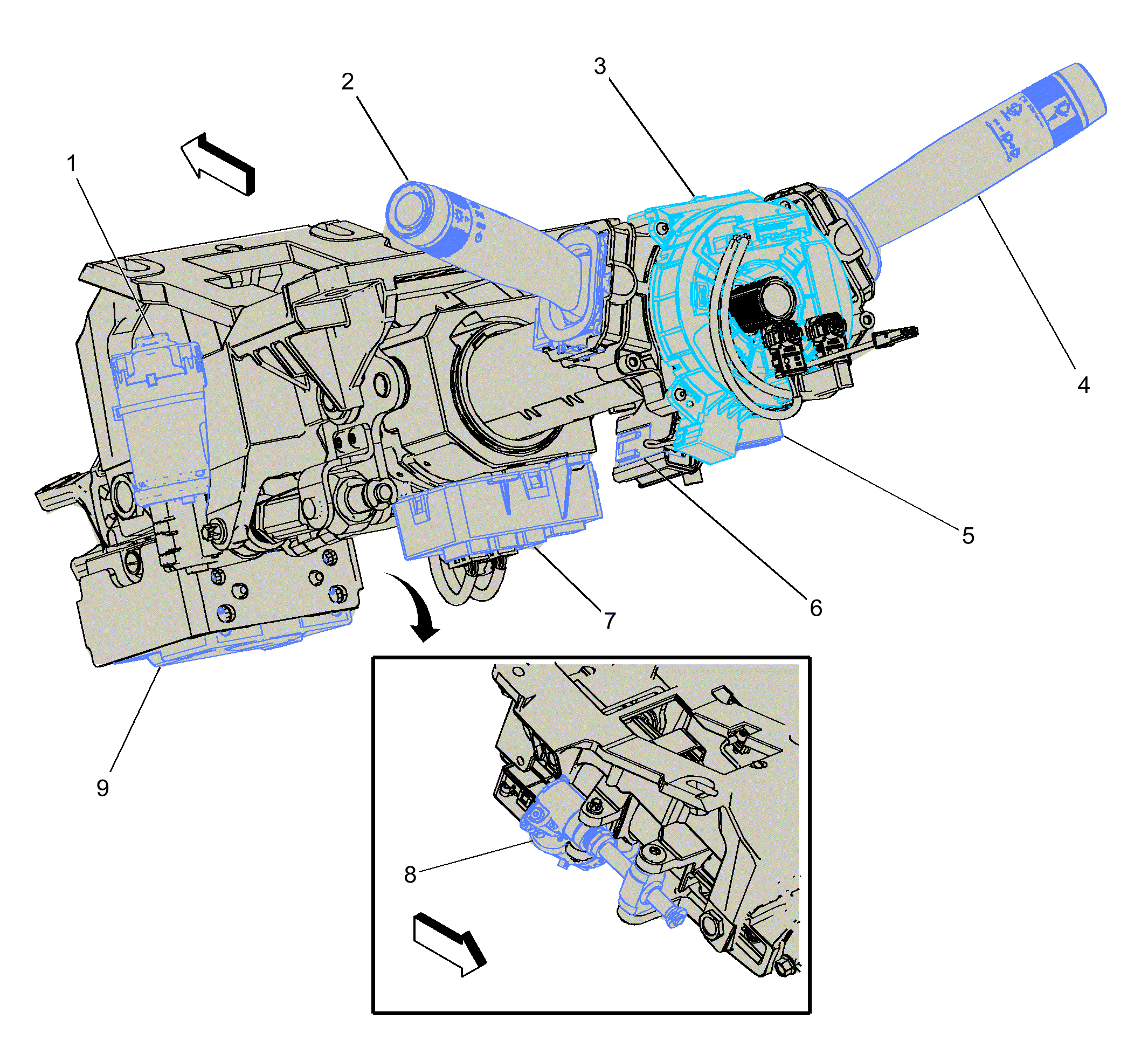

Steering Column Components
| Items |
|---|
| 1: M68 Steering Column Tilt Motor (N38) |
| 2: S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch |
| 3: X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1X85 Steering Wheel Air Bag Coil X2X85 Steering Wheel Air Bag Coil X3X85 Steering Wheel Air Bag Coil X4 (UVD)X85 Steering Wheel Air Bag Coil X5 (UVD) |
| 4: S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch |
| 5: B99 Steering Wheel Angle Sensor B99 Steering Wheel Angle Sensor |
| 6: X55AE Fuse Holder - Steering Wheel Heater (UVD) X55AE Fuse Holder - Steering Wheel Heater (UVD) |
| 7: K99 Steering Column Position Control Module (N38) K99 Steering Column Position Control Module X1 (N38)K99 Steering Column Position Control Module X2 (N38)K99 Steering Column Position Control Module X3 (N38)K99 Steering Column Position Control Module X4 (N38) |
| 8: M65 Steering Column Telescope Motor (N38) |
| 9: K60 Steering Column Lock Module (ULS) K60 Steering Column Lock Module |
