Instrument Panel Components - Right Side

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Items
1: E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp
2: A33 Media Disc Player (WCN) A33 Media Disc Player (WCN)
3: K33 HVAC Control Module K33 HVAC Control Module X1 K33 HVAC Control Module X2 K33 HVAC Control Module X3 K33 HVAC Control Module X4
4: A11 Radio A11 Radio X1 A11 Radio X2 A11 Radio X4 A11 Radio X5 A11 Radio X5 (Sedan+UGN/UVZ)A11 Radio X6 (U2K/U2M)A11 Radio X7 (IO3)A11 Radio X8 (IO3)A11 Radio X9
5: K74 Human Machine Interface Control Module (IO5/IO6) K74 Human Machine Interface Control Module X1 (IO5/IO6)K74 Human Machine Interface Control Module X2 (IO5/IO6)K74 Human Machine Interface Control Module X3 (IO5/IO6)K74 Human Machine Interface Control Module X4 (IO5/IO6)K74 Human Machine Interface Control Module X5 (IO5/IO6)K74 Human Machine Interface Control Module X7 (IO6)
6: E8K Instrument Panel Courtesy Lamp - Right E8K Instrument Panel Courtesy Lamp - Right
7: F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger (Coupe)F114P Knee Air Bag - Passenger (Sedan+(UGN/UVZ))
8: S35 Instrument Panel Compartment Lamp Switch S35 Instrument Panel Compartment Lamp Switch
9: X20 Memory Card Receptacle (UQT) X20 Memory Card Receptacle X1 X20 Memory Card Receptacle X2

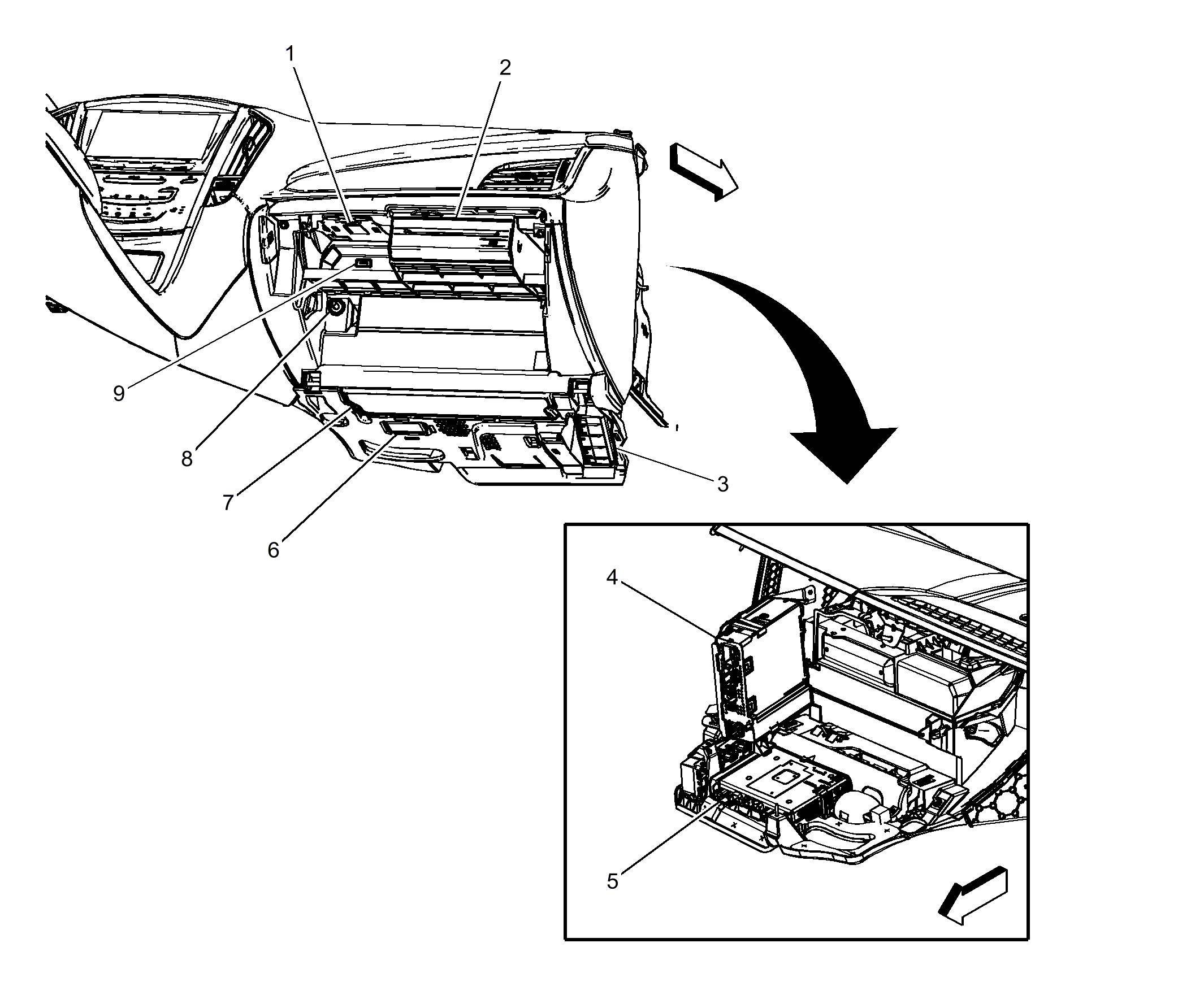

Fig 1: Instrument Panel Components - Right Side

Courtesy of GENERAL MOTORS COMPANY
