Instrument Panel Components - Center

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Items
1: P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter
2: P16 Instrument Cluster P16 Instrument Cluster X1 P16 Instrument Cluster X2 (UV6)
3: P29 Head-Up Display (UV6) P29 Head-Up Display X1 (UV6)P29 Head-Up Display X2 (UV6)
4: P43 Collision Alert Indicators (UEU-UV6) P43 Collision Alert Indicators
5: P17 Info Display Module P17 Info Display Module X1 P17 Info Display Module X1 (Sedan+(UGN/UVZ))P17 Info Display Module X2 (Coupe+IO3)P17 Info Display Module X2 (Coupe+IO5/IO6)P17 Info Display Module X2 (Sedan+(IO5/IO6))P17 Info Display Module X2 (Sedan+IO3)P17 Info Display Module X3 (Coupe+(IO6+1SV/UQT-MAW))P17 Info Display Module X3 (Sedan+(IO6+1SV/UQT-MAW))
6: P19B Speaker - Center Instrument Panel (1SV/UQS) P19B Speaker - Center Instrument Panel
7: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
8: P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter
9: F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 F101 Passenger Instrument Panel Air Bag X2
10: X92 USB Receptacle (IO5/IO6) X92 USB Receptacle
11: S26 Hazard Warning Switch S26 Hazard Warning Switch
12: T22 Mobile Device Wireless Charger Module (K4C) T22 Mobile Device Wireless Charger Module
13: A20 Radio/HVAC Controls
13: S38 Ignition Mode Switch S38 Ignition Mode Switch
14: B80 Park Brake Switch B80 Park Brake Switch (-J77)
15: P9 Driver Information Center Display

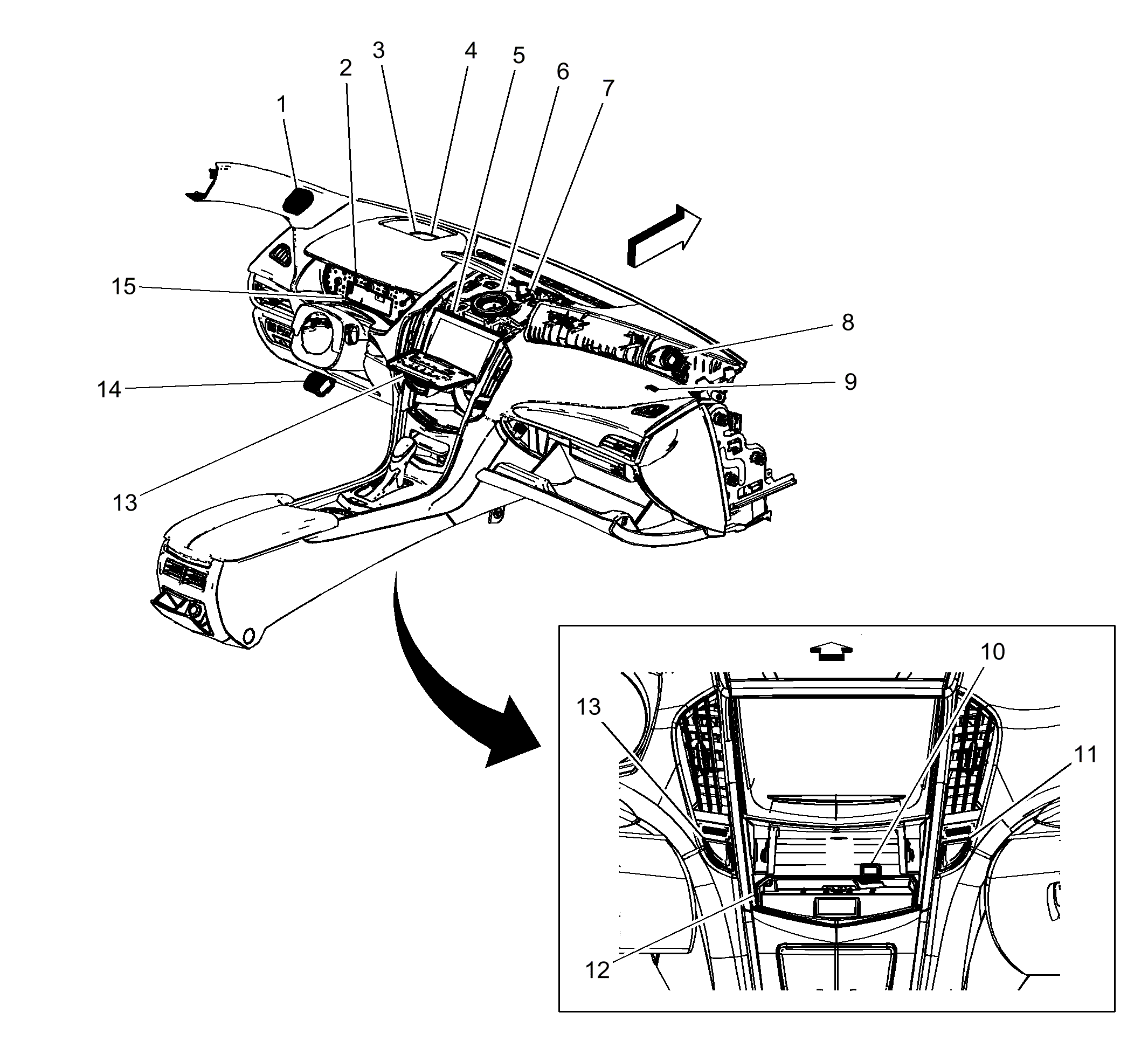

Fig 1: Instrument Panel Components - Center

Courtesy of GENERAL MOTORS COMPANY
