HVAC Module Components

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
HVAC Module Components

Items
1: M37 Mode Door Actuator M37 Mode Door Actuator
2: M6L Air Temperature Door Actuator - Left M6L Air Temperature Door Actuator - Left
3: M6R Air Temperature Door Actuator - Right M6R Air Temperature Door Actuator - Right
4: M46 Air Recirculation Door Actuator M46 Air Recirculation Door Actuator (-KL9)M46 Air Recirculation Door Actuator (KL9)
5: B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor
6: M8 Blower Motor M8 Blower Motor
7: B7E Air Temperature Sensor - Duct Right Lower B7E Air Temperature Sensor - Duct Right Lower
8: B7D Air Temperature Sensor - Duct Left Lower B7D Air Temperature Sensor - Duct Left Lower

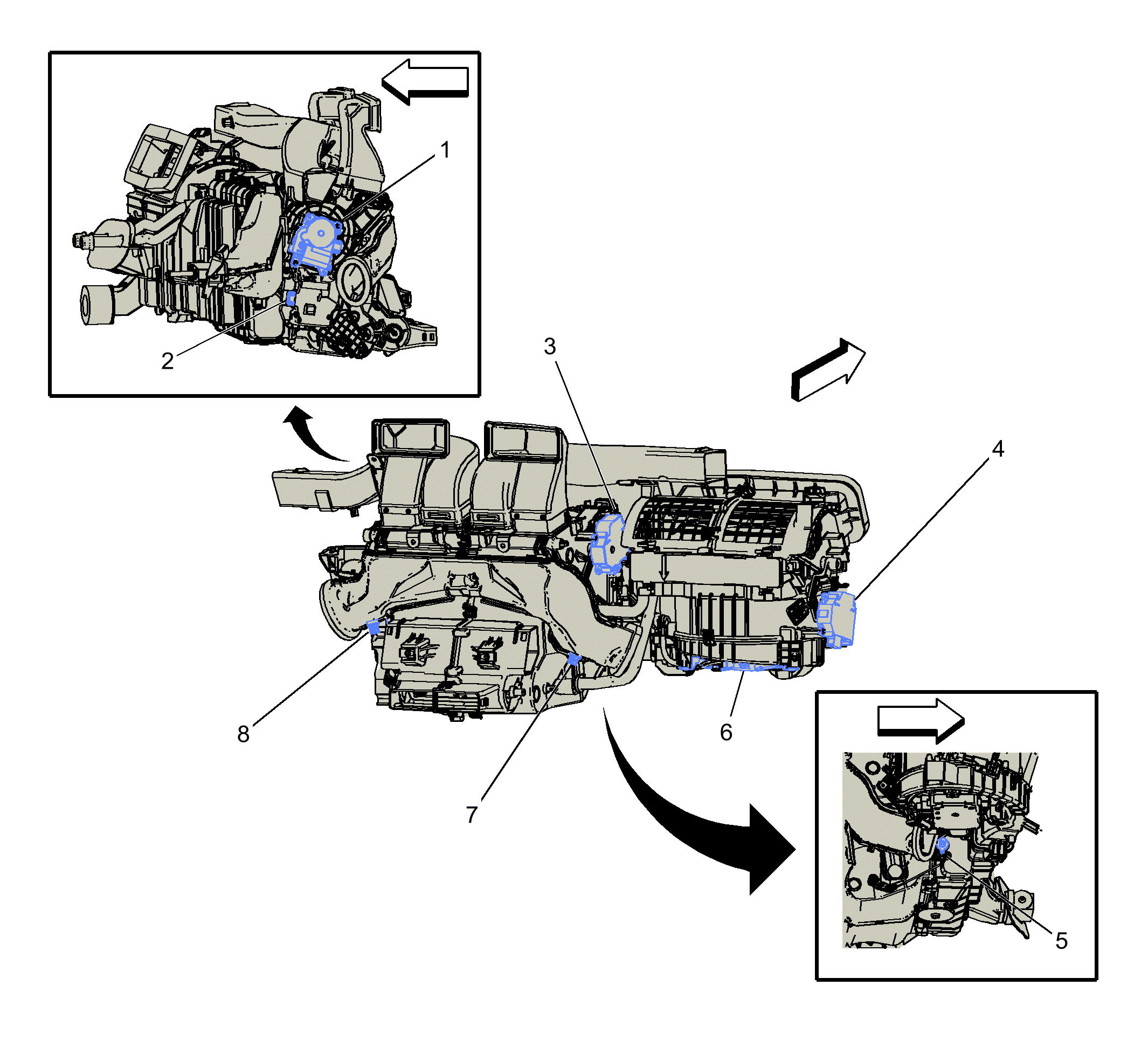

Fig 1: HVAC Module Components
GM4703095Courtesy of GENERAL MOTORS COMPANY
