Floor Console Components - Automatic Transmission (M5N/M5T/M5U)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

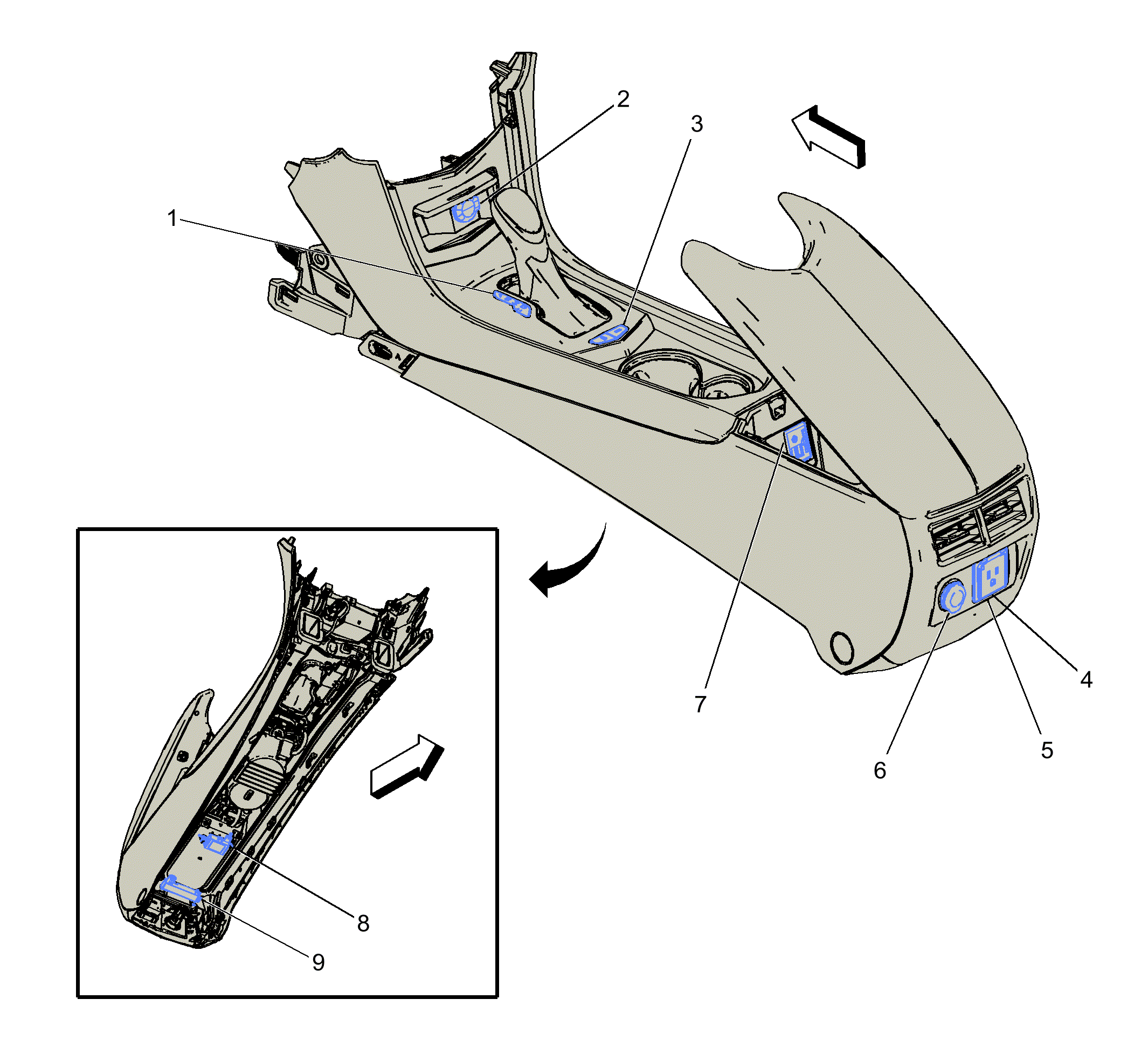

Floor Console Components - Automatic Transmission (M5N/M5T/M5U)
| Items |
|---|
| 1: P2 Transmission Shift Lever Position Indicator (M5N/M5T/M5U) P2 Transmission Shift Lever Position Indicator (M5N/M5T/M5U) |
| 2: X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel |
| 3: S126 Drive Mode Select Switch S126 Drive Mode Select Switch (M5N/M5T/M5U) |
| 4: X81 Accessory Power Receptacle - 110V AC (KI6) X81 Accessory Power Receptacle - 110V AC X1 (KI6)X81 Accessory Power Receptacle - 110V AC X2 (KI6) |
| 5: X81B Accessory Power Receptacle - 220V AC (KI7) X81B Accessory Power Receptacle - 220V AC X1 (KI7)X81B Accessory Power Receptacle - 220V AC X2 (KI7) |
| 6: X80H Accessory Power Receptacle - Center Console X80H Accessory Power Receptacle - Center Console |
| 7: X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1X83 Auxiliary Audio Input X2 |
| 8: K89 Immobilizer Control Module K89 Immobilizer Control Module |
| 9: T10K Keyless Entry Antenna - Center Console Rear T10K Keyless Entry Antenna - Center Console Rear |
