Communication Interface Module Battery Replacement (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

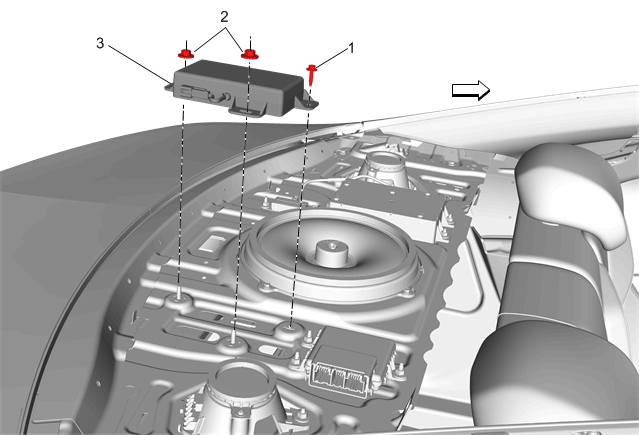

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Coupe) . |
|
| 1 | Communication Interface Module Battery Bolt
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Communication Interface Module Battery Nut (Qty: 2) Tighten 4 N.m (35 lb in) |
| 3 | Communication Interface Module Battery Procedure Disconnect the electrical connector. |
