Dimmer Switch Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

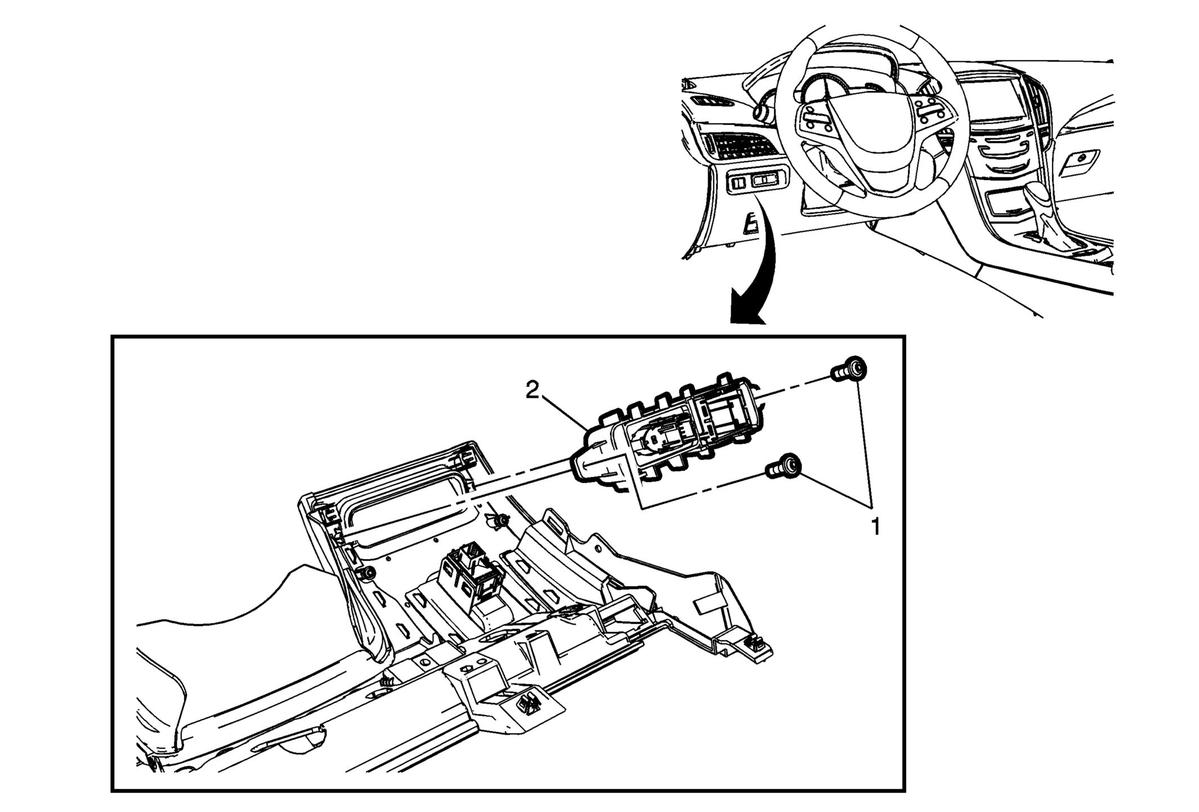

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement . |
|
| 1 | Dimmer Switch Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Dimmer Switch |
