Rear Body Fuse Block Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

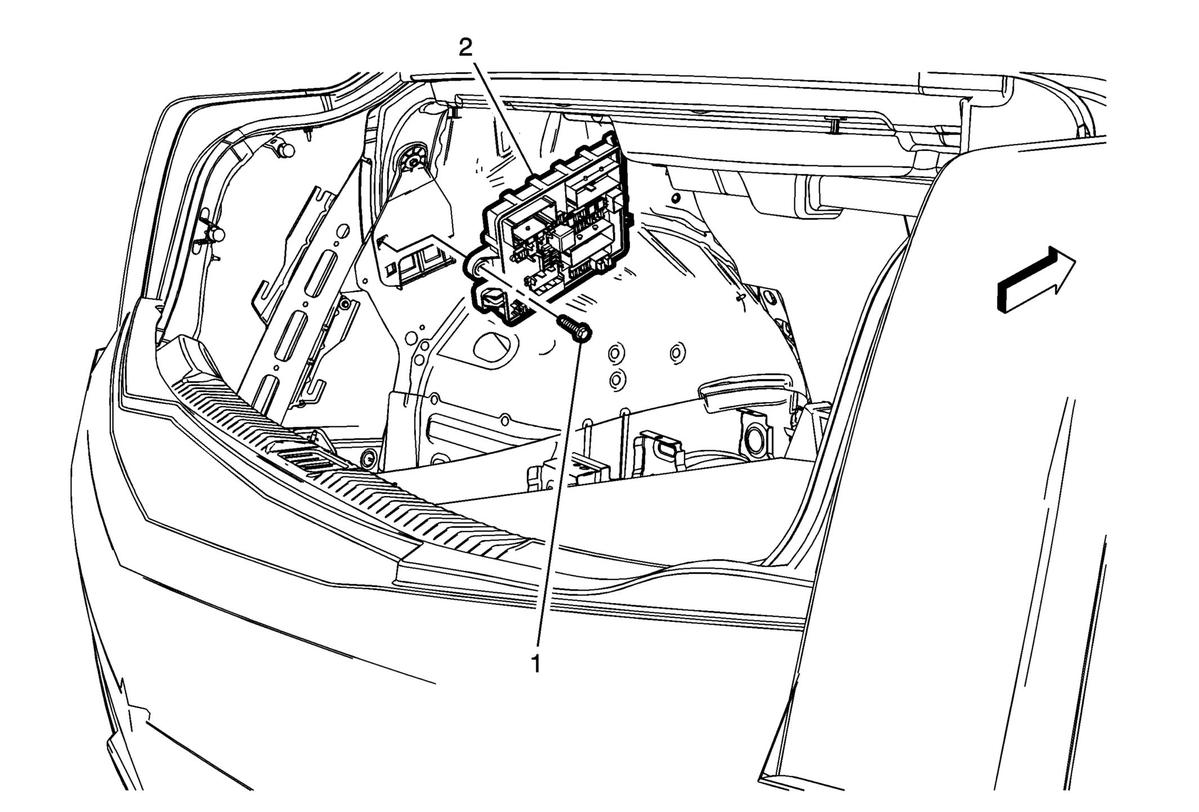

Fig 1: Rear Body Fuse Block & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim panel - left side. Refer to Rear Compartment Side Trim Replacement - Left Side (Sedan with AM9)Rear Compartment Side Trim Replacement - Left Side (Sedan except AM9)Rear Compartment Side Trim Replacement - Left Side (Coupe) . Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Rear Body Fuse Block Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Body Fuse Block Procedure Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure

Remove the rear compartment side trim panel - left side. Refer to Rear Compartment Side Trim Replacement - Left Side (Sedan with AM9)Rear Compartment Side Trim Replacement - Left Side (Sedan except AM9)Rear Compartment Side Trim Replacement - Left Side (Coupe) .
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .

Rear Body Fuse Block Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Rear Body Fuse Block
Procedure
Disconnect the electrical connectors.
