Wireless Communication Interface Antenna Replacement (Sedan)
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Sedan) . |
|

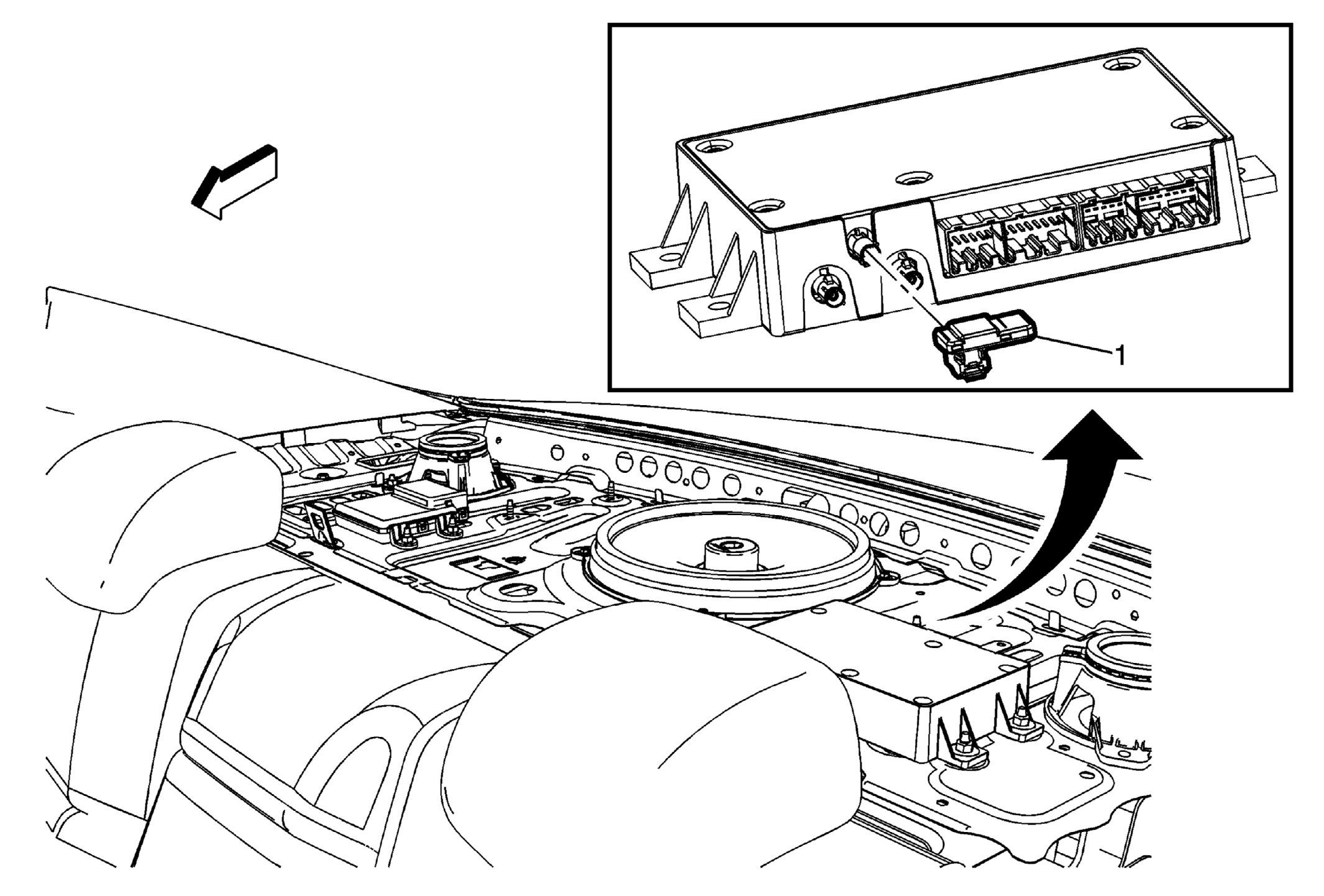

| 1 | Wireless Communication Interface Antenna Procedure Unsnap the antenna from the communication interface module. |
