Radio Volume Compensator Interior Noise Microphone Replacement

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

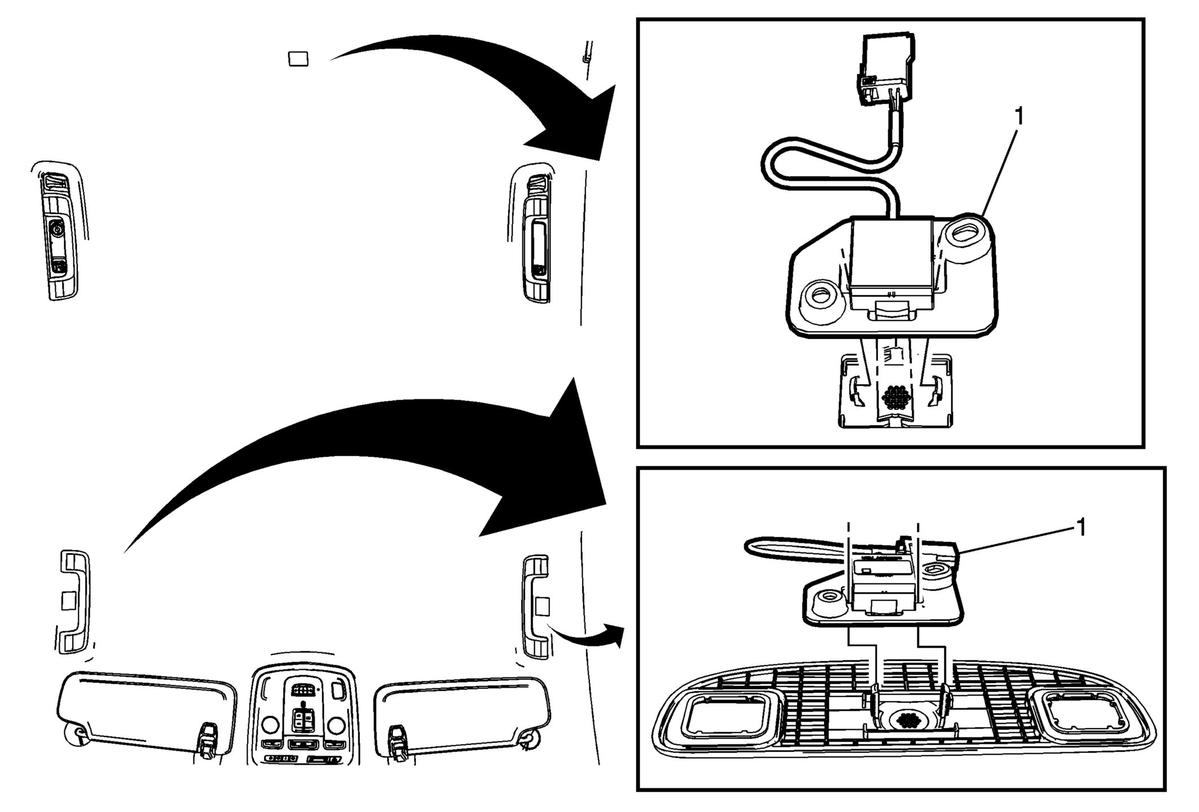

Fig 1: Radio Volume Compensator Interior Noise Microphones

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the front or rear of the headlining trim panel enough to gain access to the microphone. Refer to Headlining Trim Panel Replacement (Sedan With Sunroof)Headlining Trim Panel Replacement (Sedan Without Sunroof)Headlining Trim Panel Replacement (Coupe) .
1	Radio Volume Compensator Interior Noise Microphone (Qty: 3) Procedure Disconnect the electrical connectors. Unsnap the microphone from the grille.

Callout

Component Name

Preliminary Procedure
Lower the front or rear of the headlining trim panel enough to gain access to the microphone. Refer to Headlining Trim Panel Replacement (Sedan With Sunroof)Headlining Trim Panel Replacement (Sedan Without Sunroof)Headlining Trim Panel Replacement (Coupe) .

Radio Volume Compensator Interior Noise Microphone (Qty: 3)

Procedure

Disconnect the electrical connectors.
Unsnap the microphone from the grille.
