Radio Antenna Base Replacement
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

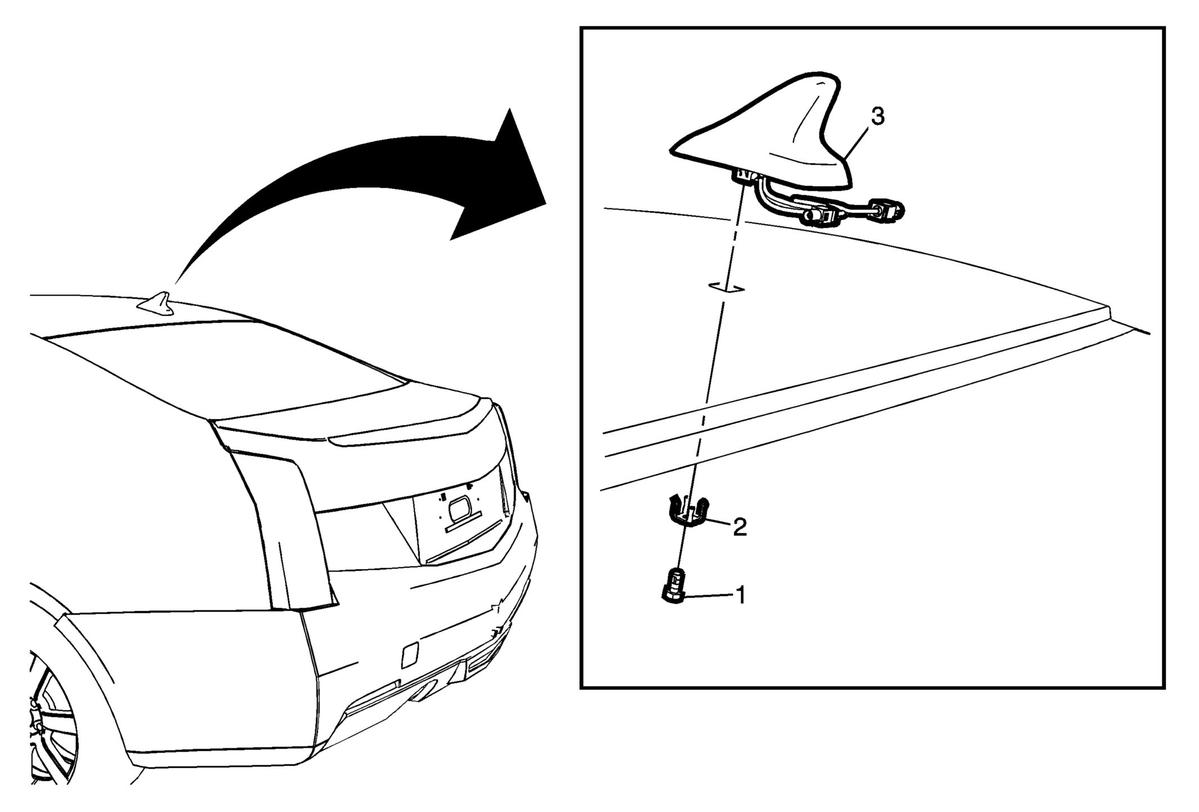

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lower the rear of the headlining trim panel. Refer to Headlining Trim Panel Replacement (Sedan With Sunroof)Headlining Trim Panel Replacement (Sedan Without Sunroof)Headlining Trim Panel Replacement (Coupe) . |
|
| 1 | Radio Antenna Base Fastener
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Radio Antenna Base Retainer |
| 3 | Radio Antenna Base Procedure Disconnect the electrical connectors. |
