Fuel Tank Shield Replacement (FWD)

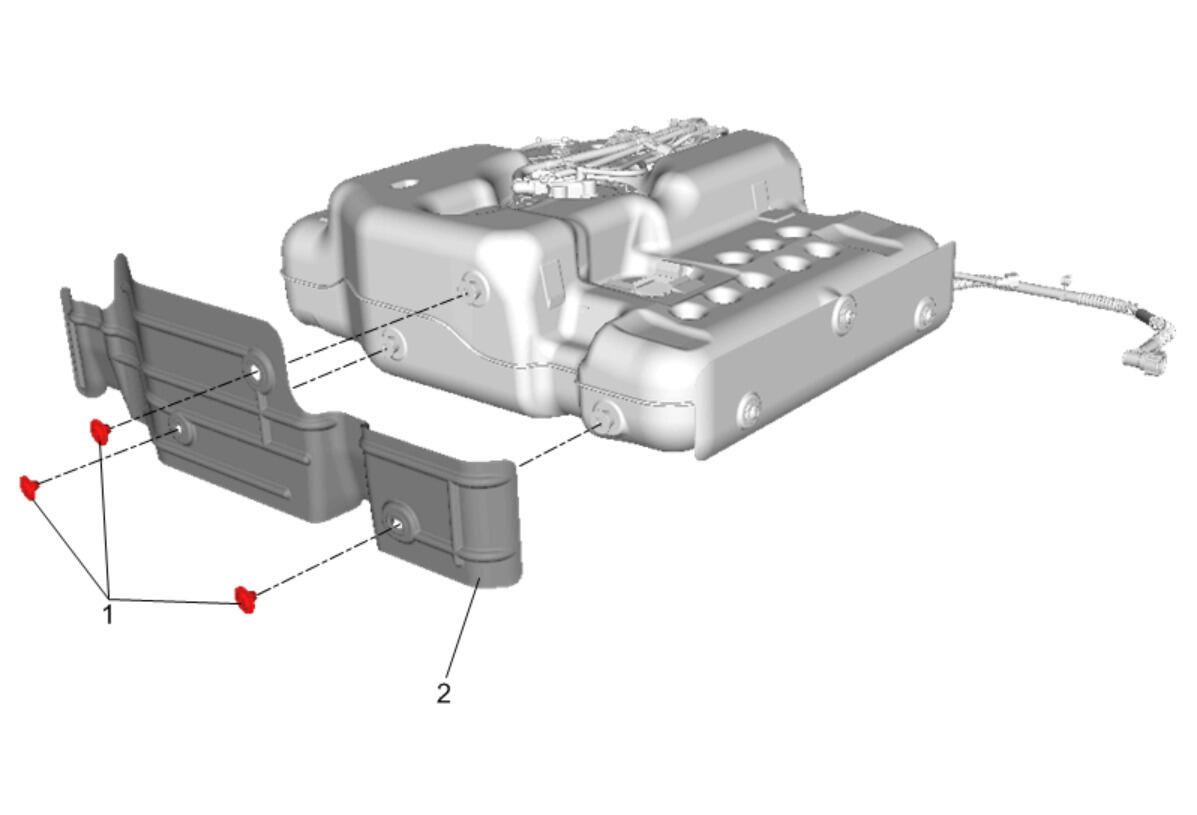

Fig 1: Fuel Tank Shield (FWD)
GM4292588Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Fuel Tank. Refer to Fuel Tank Replacement (FWD)
1 Fuel Tank Heat Shield Retainer (Qty: 3)
CAUTION:

Refer to Fastener Caution .
2 Fuel Tank Shield
