Fuel Tank Shield Replacement (AWD)

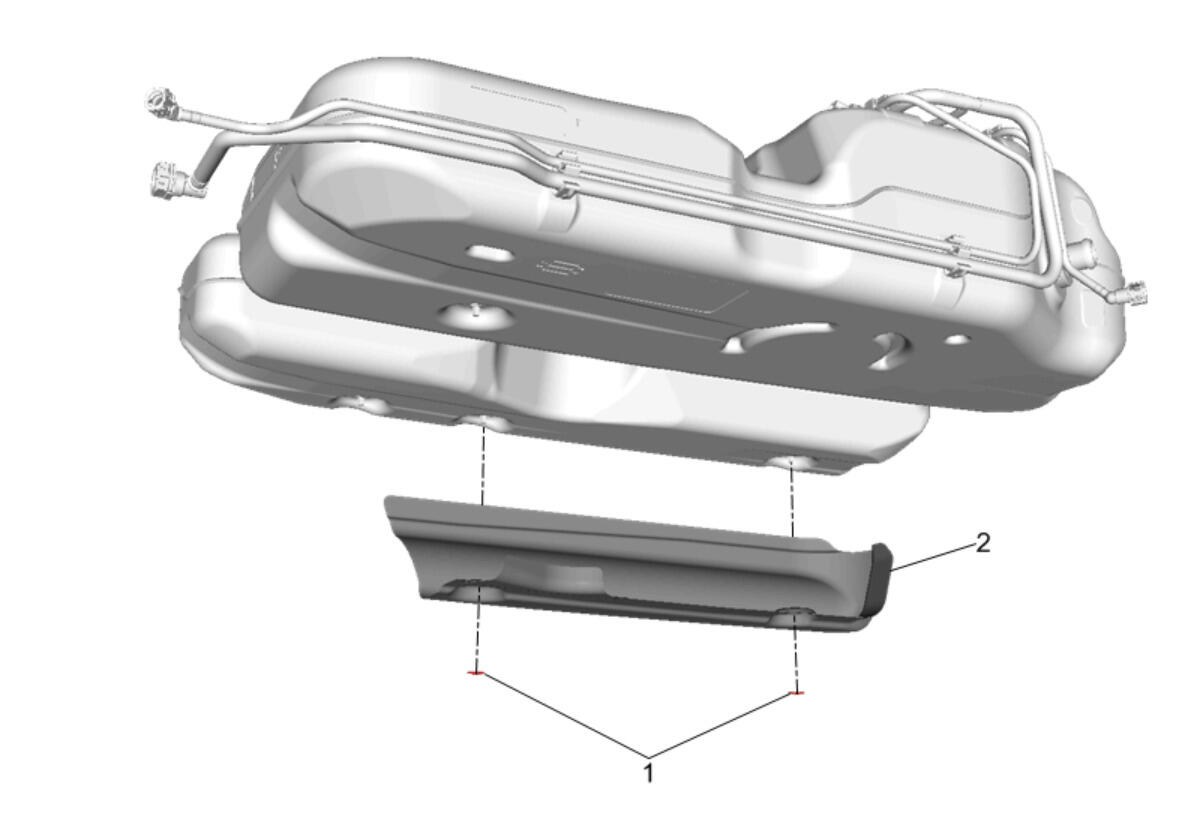

Fig 1: Fuel Tank Shield (AWD)
GM4294857Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Fuel Tank Front Shield. Refer to Fuel Tank Front Shield Replacement (AWD)
1 Fuel Tank Heat Shield Retainer (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Fuel Tank Shield
