Installation Procedure

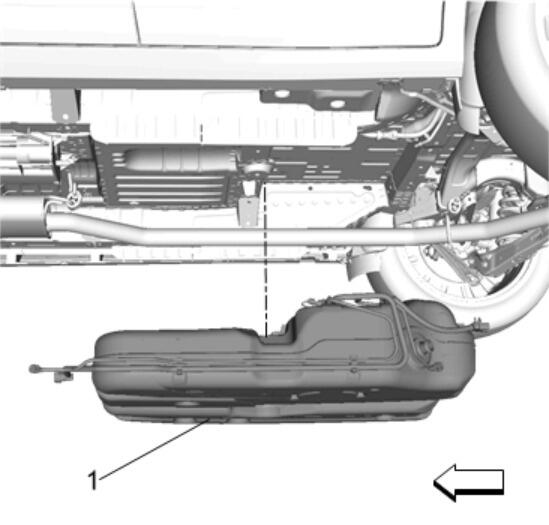

    Fig 1: Fuel Tank
    GM4298742Courtesy of GENERAL MOTORS COMPANY
  1. Place a suitable adjustable jack under the fuel tank.
  2. Install Fuel Tank (1)

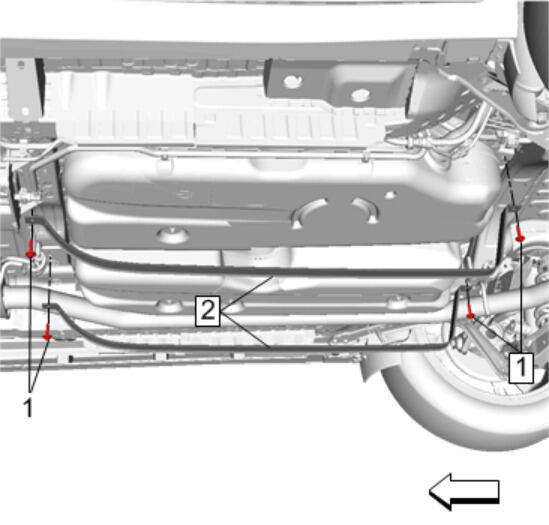

    3. Fig 2: Fuel Tank Straps And Bolts
    GM4298741Courtesy of GENERAL MOTORS COMPANY
  3. Install Fuel Tank Straps (2) (Qty: 2)
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install and tighten Fuel Tank Strap Bolts (1) (Qty: 4) to 22 N.m (16 lb ft)

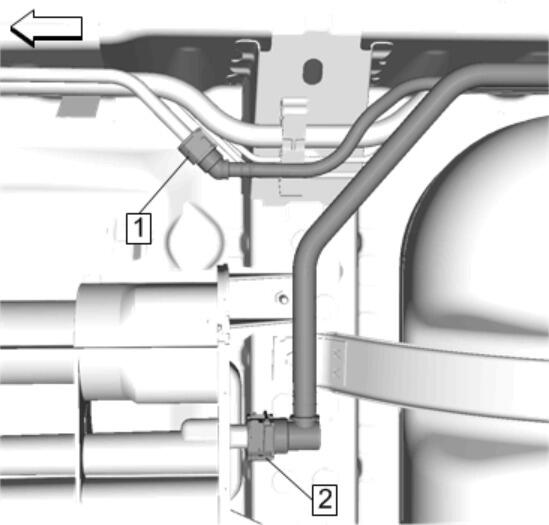

    5. Fig 3: Fuel Pump Fuel Feed Hose And Canister Vent Hose
    GM4298739Courtesy of GENERAL MOTORS COMPANY
  5. Connect Evaporative Emission Canister Vent Hose (2). Refer to Plastic Collar Quick Connect Fitting Service
  6. Connect Fuel Pump Fuel Feed Hose (1). Refer to Plastic Collar Quick Connect Fitting Service

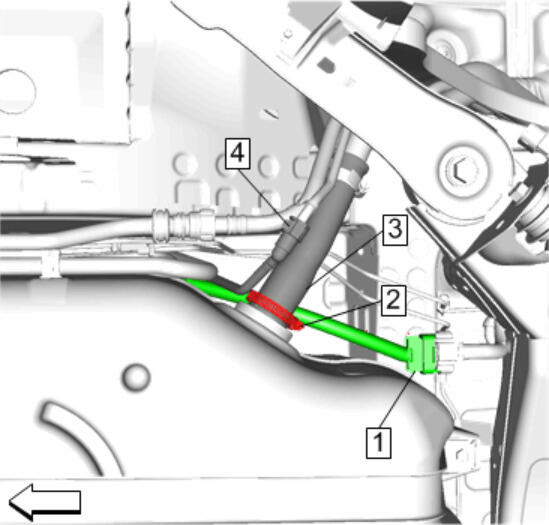

    7. Fig 4: Wiring Harness, Fuel Tank Filler Hose, Clamp And Canister Vent Hose
    GM4298736Courtesy of GENERAL MOTORS COMPANY
  7. Connect Evaporative Emission Canister Vent Hose (4). Refer to Plastic Collar Quick Connect Fitting Service
  8. Install Fuel Tank Filler Hose (3)
  9. Install and tighten Fuel Tank Filler Hose Clamp (2) to 4 N.m (35 lb in)
  10. Connect Wiring Harness (1)
  11. Install Driveline Torque Tube. Refer to Driveline Torque Tube Replacement
  12. Refill the fuel tank.
  13. Inspect for fuel leaks.
