Fuel Tank Pressure Sensor Replacement (FWD)

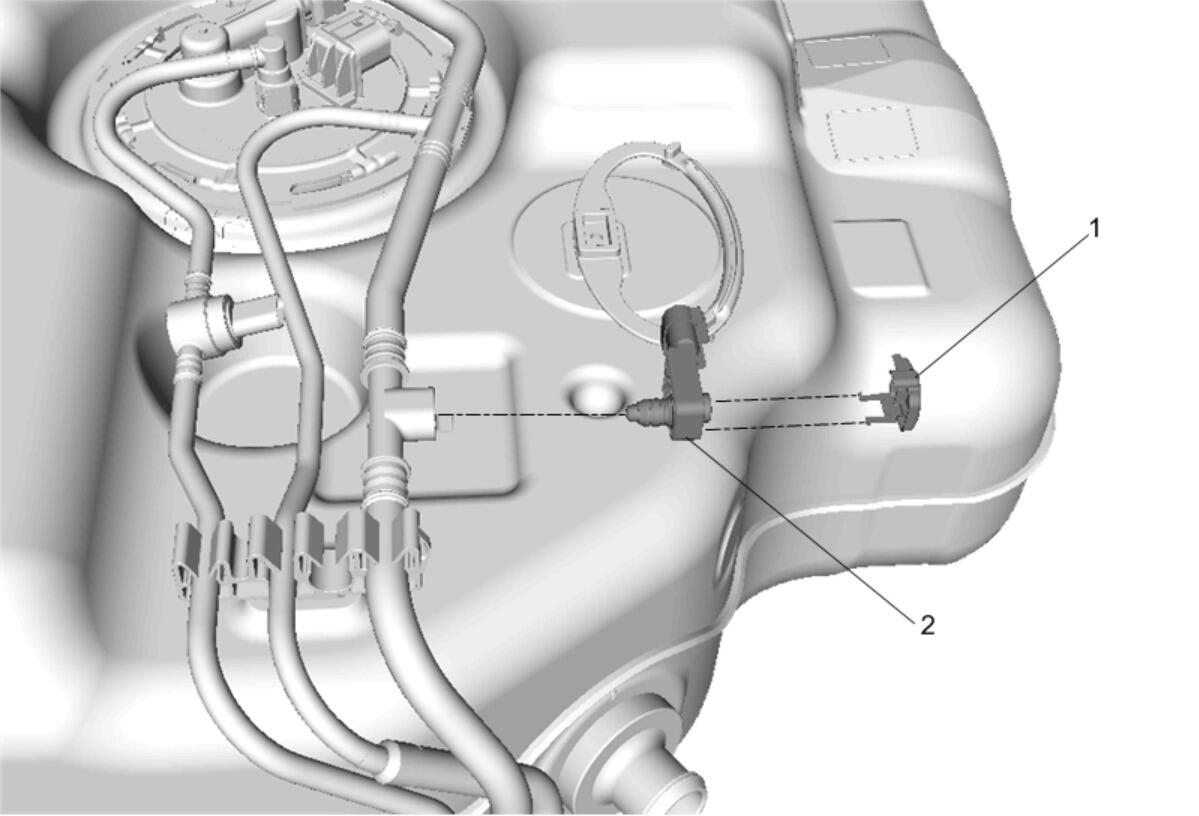

Fig 1: Fuel Tank Pressure Sensor (FWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Remove Fuel Tank. Refer to Fuel Tank Replacement (FWD)
1	Fuel Tank Pressure Sensor Cover
2	Fuel Tank Pressure Sensor Procedure  Disconnect the electrical connector.
