Fuel Tank Front Shield Replacement (FWD)

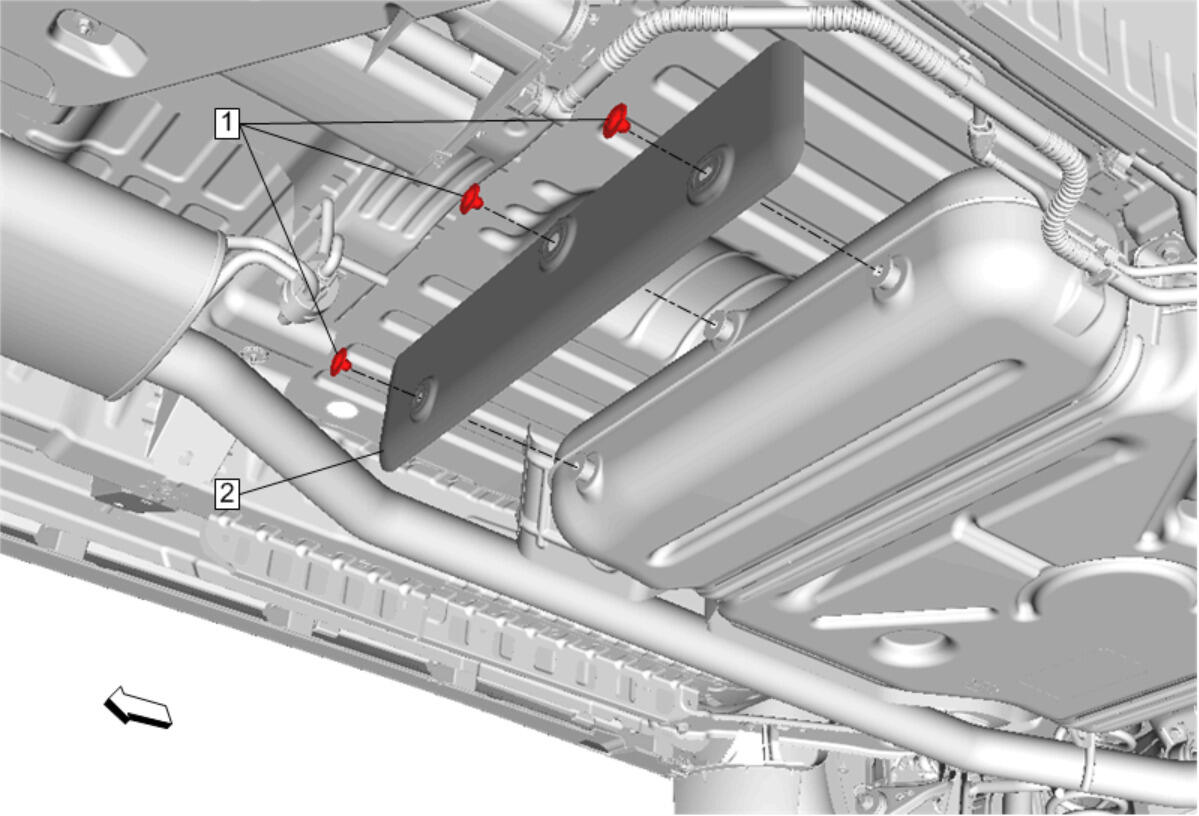

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle |
|
| 1 | Fuel Tank Heat Shield Retainer (Qty: 3)
CAUTION:
Refer to Fastener Caution . |
| 2 | Fuel Tank Front Shield |
