Installation Procedure

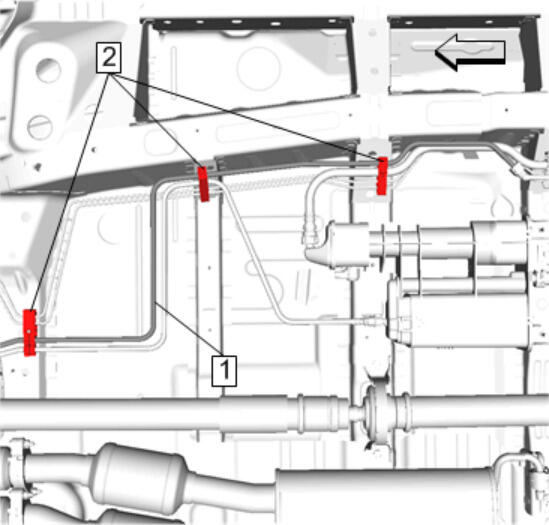

    Fig 1: Fuel Feed Pipe And Retainers
    GM4311735Courtesy of GENERAL MOTORS COMPANY
  1. Install Fuel Feed Pipe (1) @ Retainers (2) (Qty: 3)
  2. Connect Fuel Feed Pipe (1). Refer to Plastic Collar Quick Connect Fitting Service

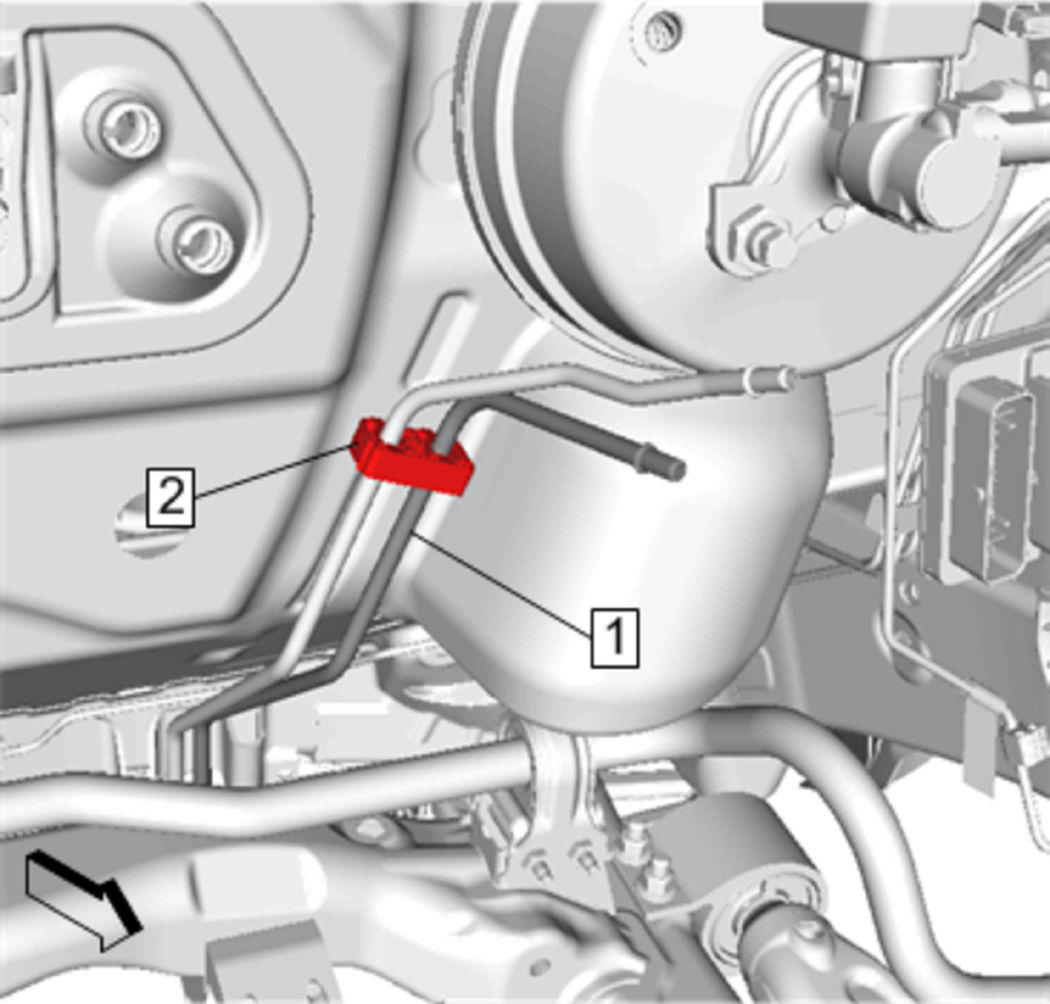

    3. Fig 2: Fuel Feed Pipe And Retainer
    GM4339616Courtesy of GENERAL MOTORS COMPANY
  3. Install Fuel Feed Pipe (1) @ Retainer (2)
  4. Install Fuel Feed Front Pipe. Refer to Fuel Feed Front Pipe Replacement
