Fuel Feed Front Pipe Replacement

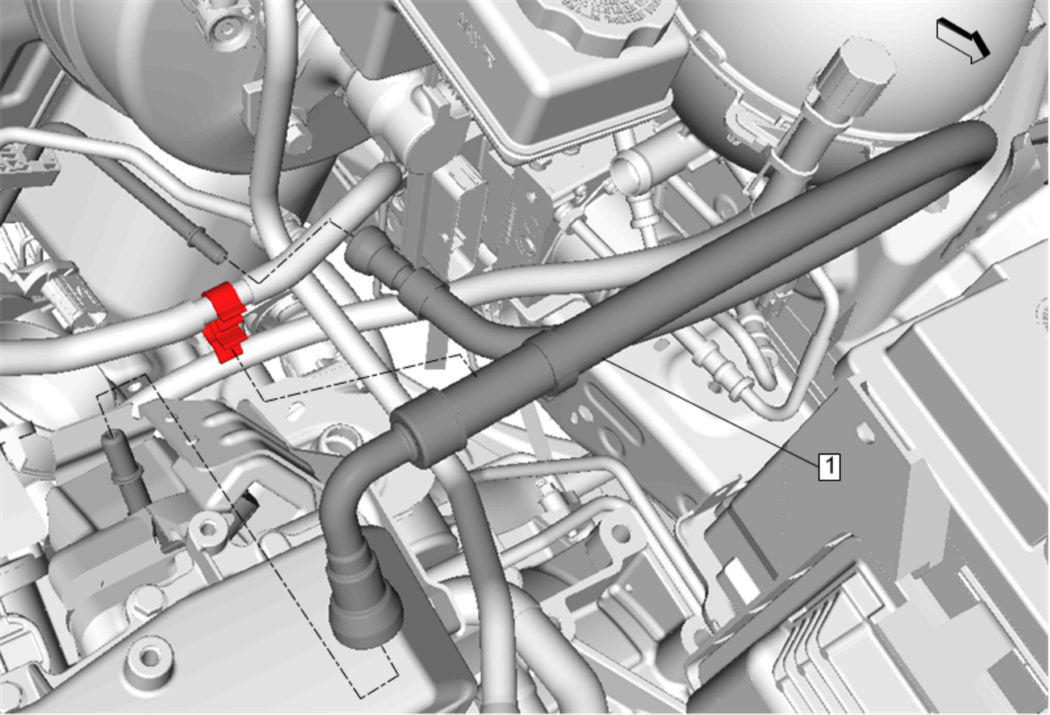

Fig 1: Fuel Feed Front Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Remove Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement Remove Intake Manifold Cover. Refer to Intake Manifold Cover Replacement
1	Fuel Feed Front Pipe Procedure Disconnect the quick connect fittings and remove from retainer. Refer to Metal Collar Quick Connect Fitting Service

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedures

Fuel Feed Front Pipe
Procedure
Disconnect the quick connect fittings and remove from retainer. Refer to Metal Collar Quick Connect Fitting Service
