Installation Procedure

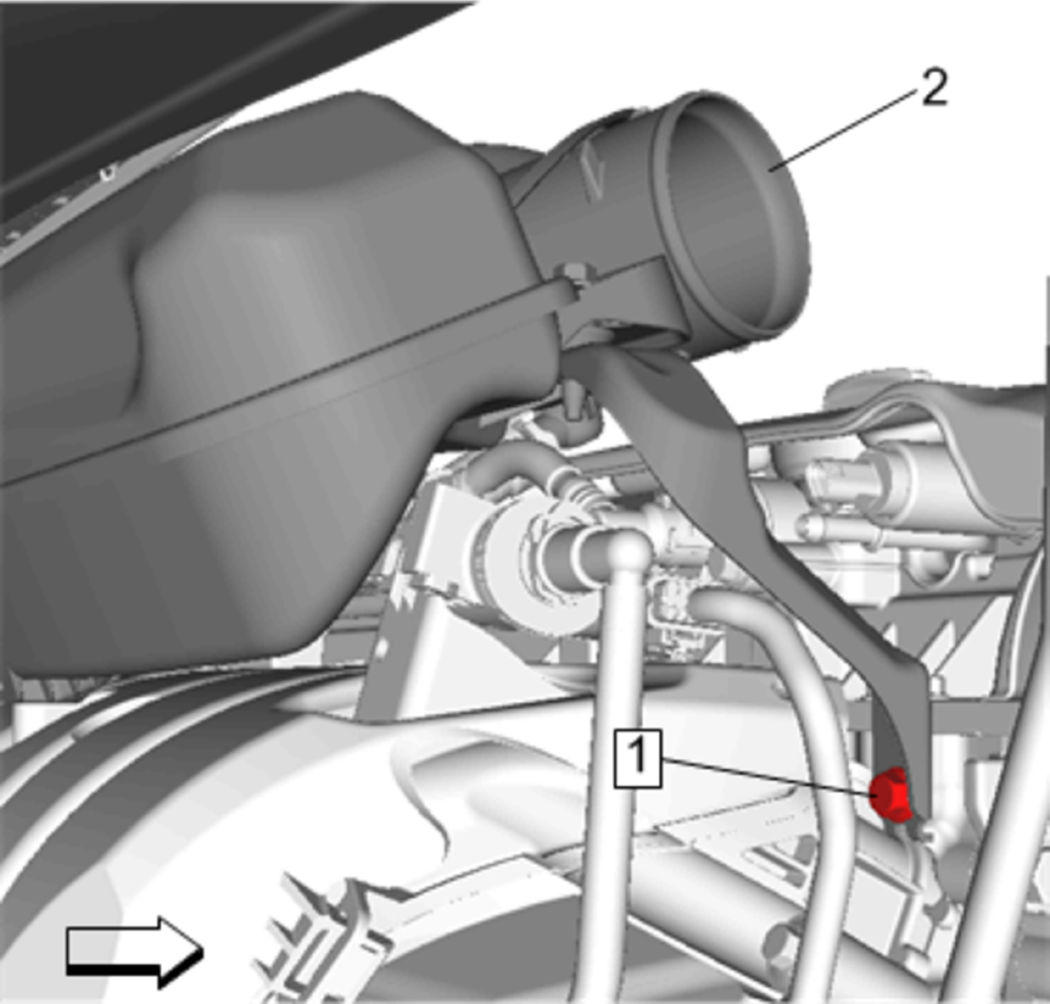

    Fig 1: Air Cleaner Outlet Duct And Fastener
    GM4362759Courtesy of GENERAL MOTORS COMPANY
  1. Install Air Cleaner Outlet Duct (2)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install and tighten Air Cleaner Outlet Duct Fastener (1) to 9 N.m (80 lb in)

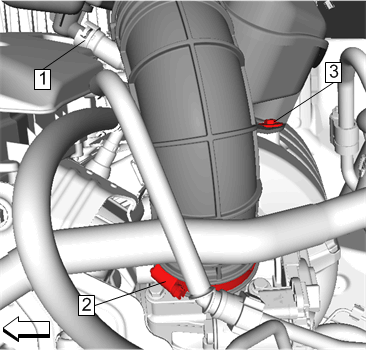

    3. Fig 2: Positive Crankcase Ventilation Pipe, Air Cleaner Outlet Duct Clamp And Fastener
    GM4362732Courtesy of GENERAL MOTORS COMPANY
  3. Install and tighten Air Cleaner Outlet Duct Fastener (3) to 9 N.m (80 lb in)
  4. Install and tighten Air Cleaner Outlet Duct Clamp (2) to 4 N.m (35 lb in)
  5. Connect Positive Crankcase Ventilation Pipe (1). Refer to Plastic Collar Quick Connect Fitting Service
  6. Reposition Radiator Surge Tank Inlet Hose @ Air Cleaner Outlet Duct. Refer to Radiator Surge Tank Inlet Hose Replacement (LCV From Radiator Surge Tank to Radiator and Radiator Surge Tank Outlet Pipe)
