Air Cleaner Assembly Replacement

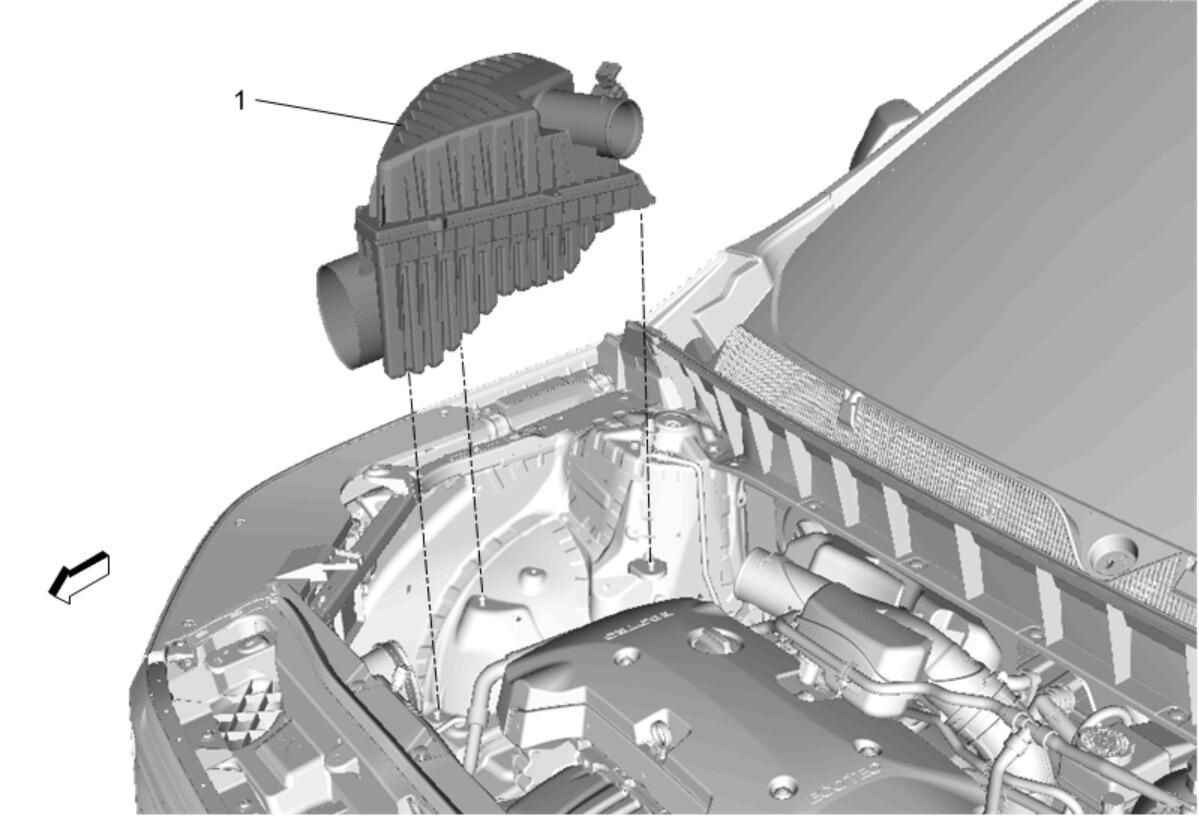

Fig 1: Air Cleaner Assembly
GM4363562Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove Air Cleaner Outlet Front Duct. Refer to Air Cleaner Outlet Front Duct Replacement
  2. Disconnect the electrical connector.
1 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
