Installation Procedure

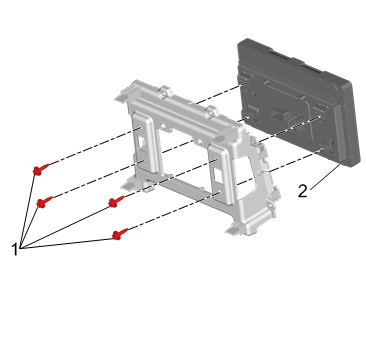

    Fig 1: Radio Control Bolt
    GM4409329Courtesy of GENERAL MOTORS COMPANY
  1. Install Driver Information Display (2)
    2. CAUTION:

    Fastener Caution

  2. Install Radio Control Bracket Bolt (1) and tighten 2.5 N.m (22 lb in)

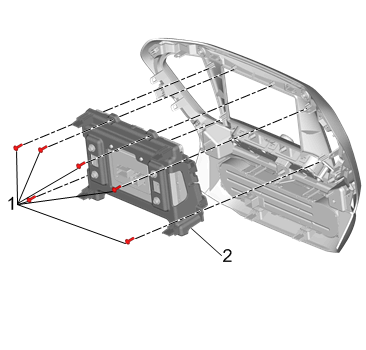

    3. Fig 2: Remove Radio Bracket Bolt
    GM4409181Courtesy of GENERAL MOTORS COMPANY
  3. Install Radio Control Bracket (2)
  4. Install Radio Bracket Bolt (1) and tighten 1.5 N.m (13 lb in)

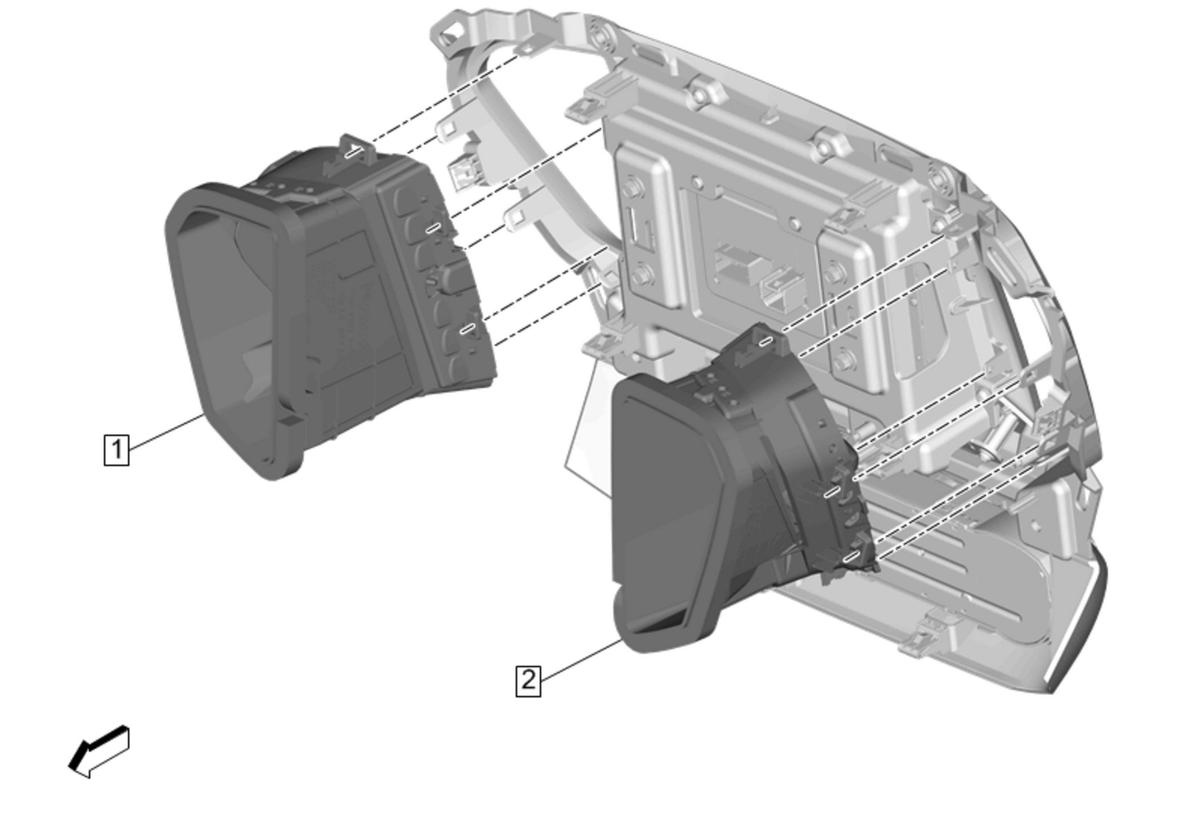

    5. Fig 3: Instrument Panel Center Air Outlet
    GM4404912Courtesy of GENERAL MOTORS COMPANY
  5. Install Instrument Panel Center Air Outlet - IOB (1, 2)Instrument Panel Center Air Outlet Replacement (IO5/IO6)Instrument Panel Center Air Outlet Replacement (IOB)
