X51A Fuse Block - Instrument Panel Label

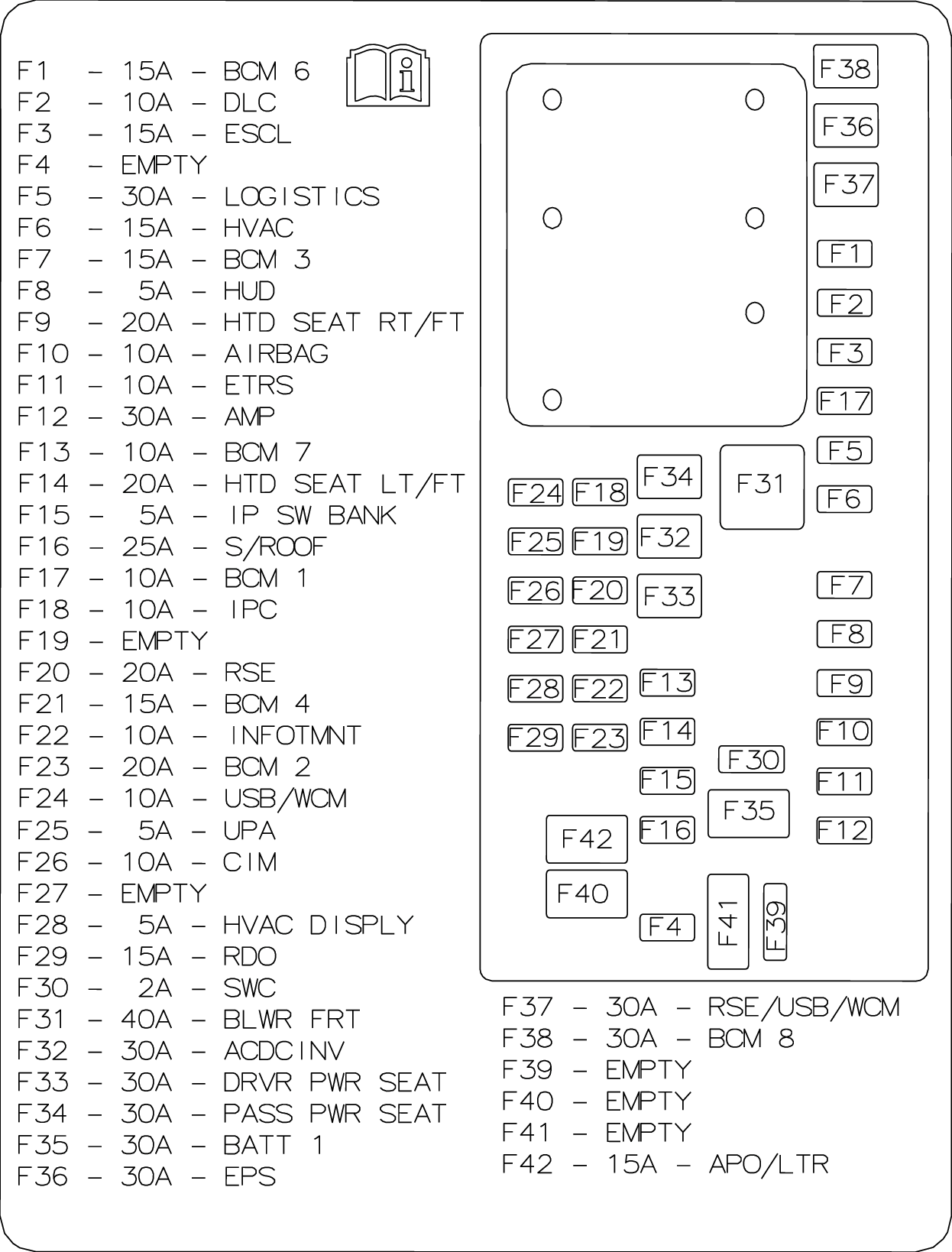

Fig 1: X51A Fuse Block - Instrument Panel Label

GM4293770

Courtesy of GENERAL MOTORS COMPANY
