Installation Procedure

    Fig 1: Generator Bolt
    GM4310677Courtesy of GENERAL MOTORS COMPANY
  1. Generator (2) » Install
    2. CAUTION:

    Refer to Fastener Caution

  2. Generator Bolt (1) Install and tighten [2x] 22 N.m (16 lb ft)
    3. Fig 2: Protective Cap
    GM4288970Courtesy of GENERAL MOTORS COMPANY
  3. Electrical Connector (4) » Connect
  4. Battery Positive Cable (1) » Install
  5. Battery Positive Cable Nut (2) @ Generator » Install and tighten 15 N.m (11 lb ft)
  6. Protective Cap (3) » Install
    7. Fig 3: Drive Belt Idler Pulley
    GM4295383Courtesy of GENERAL MOTORS COMPANY
  7. Drive Belt Idler Pulley (2) » Install Drive Belt Idler Pulley Replacement
    8. Fig 4: Drive Belt And Generator Pulley
    GM4283461Courtesy of GENERAL MOTORS COMPANY
  8. Install the drive belt. (1) Drive Belt Replacement
  9. Connect the A/C Refrigerant Pressure Sensor Connector. Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement

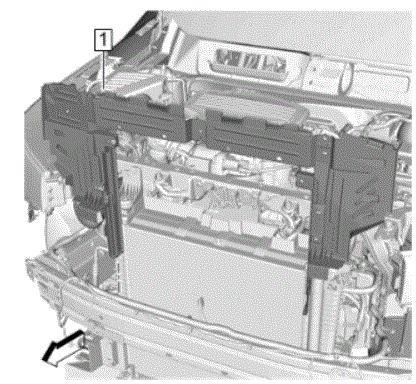

    10. Fig 5: Radiator Air Upper Baffle
    G00593711Courtesy of GENERAL MOTORS COMPANY
  10. Radiator Air Upper Baffle (1) » Install Radiator Air Upper Baffle Replacement

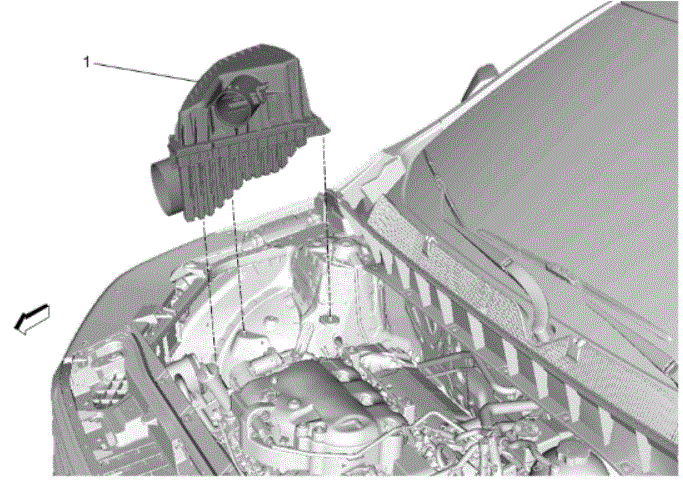

    11. Fig 6: Air Cleaner Assembly
    G00593710Courtesy of GENERAL MOTORS COMPANY
  11. Air Cleaner Assembly (1) » Install Air Cleaner Assembly Replacement
  12. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) Battery Negative Cable Disconnection and Connection (With KL9)
