Installation Procedure

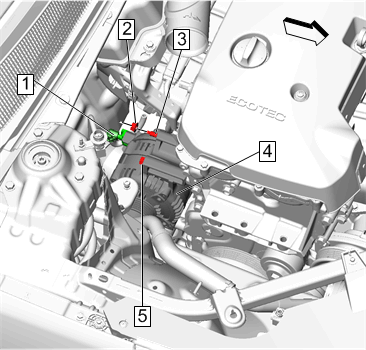

    Fig 1: Generator Nut, Bolt And Electrical Connector
    GM4378257Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  1. If necessary, install the generator mounting stud. (3) Tighten 9 N.m (80 lb in)
  2. Install Generator (4)
  3. Install Generator Nut (2) and tighten 22 N.m (16 lb ft)
  4. Install Generator Bolt (5) and tighten 22 N.m (16 lb ft)
  5. Connect Connect Electrical Connector (1)

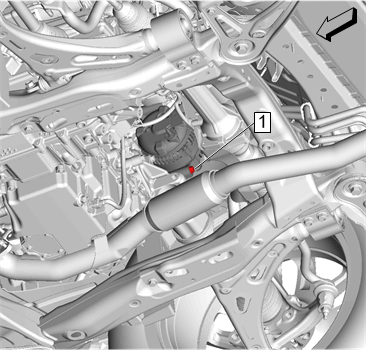

    6. Fig 2: Generator Bolt
    GM4378253Courtesy of GENERAL MOTORS COMPANY
  6. Install Generator Bolt (1) and tighten 22 N.m (16 lb ft)

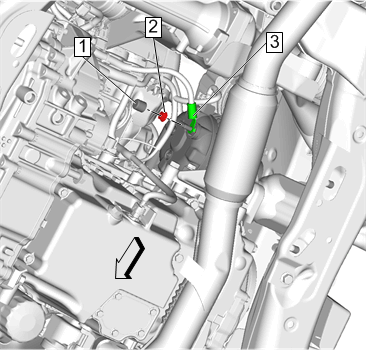

    7. Fig 3: Protective Cap And Battery Positive Cable
    GM4377685Courtesy of GENERAL MOTORS COMPANY
  7. Install Battery Positive Cable (3)
  8. Install Generator Nut (2) and tighten 15 N.m (11 lb ft)
  9. Install Protective Cap (1)

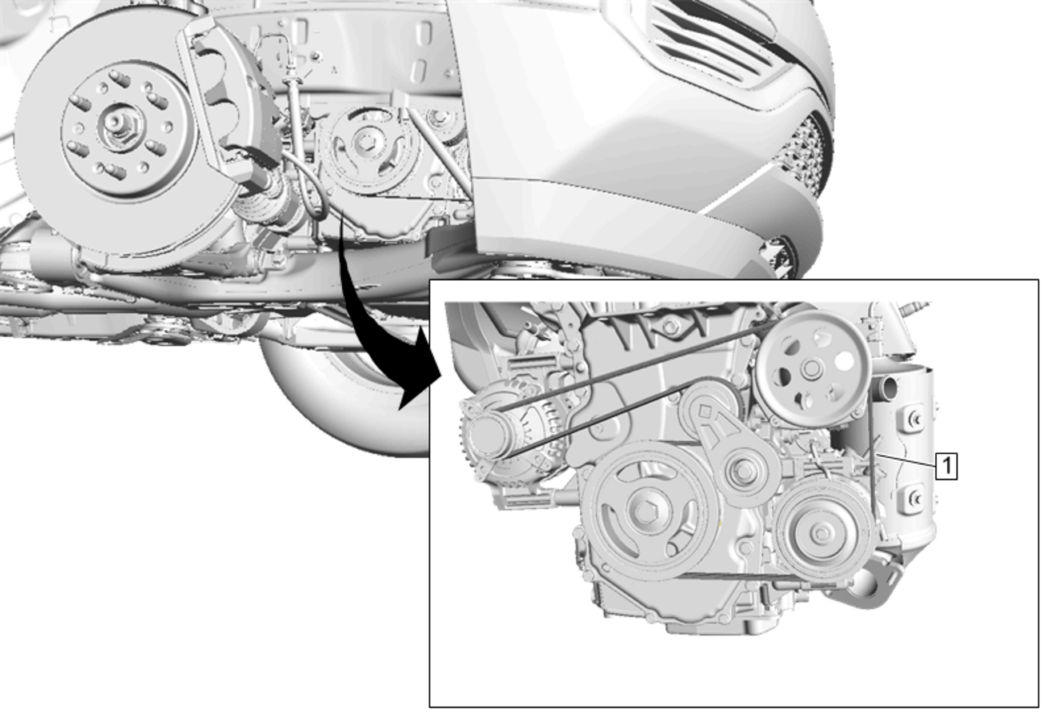

    10. Fig 4: Drive Belt
    GM4364170Courtesy of GENERAL MOTORS COMPANY
  10. Install Drive Belt (1) Drive Belt Replacement
  11. Lower the vehicle.
    12. Fig 5: Air Cleaner Assembly
    GM4363562Courtesy of GENERAL MOTORS COMPANY
  12. Install Air Cleaner Assembly (1) Air Cleaner Assembly Replacement
    13. Fig 6: Air Cleaner Outlet Front Duct
    GM4362656Courtesy of GENERAL MOTORS COMPANY
  13. Install Air Cleaner Outlet Front Duct (2) Air Cleaner Outlet Front Duct Replacement
  14. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) Battery Negative Cable Disconnection and Connection (With KL9)
